Test table: display group 3 (003)

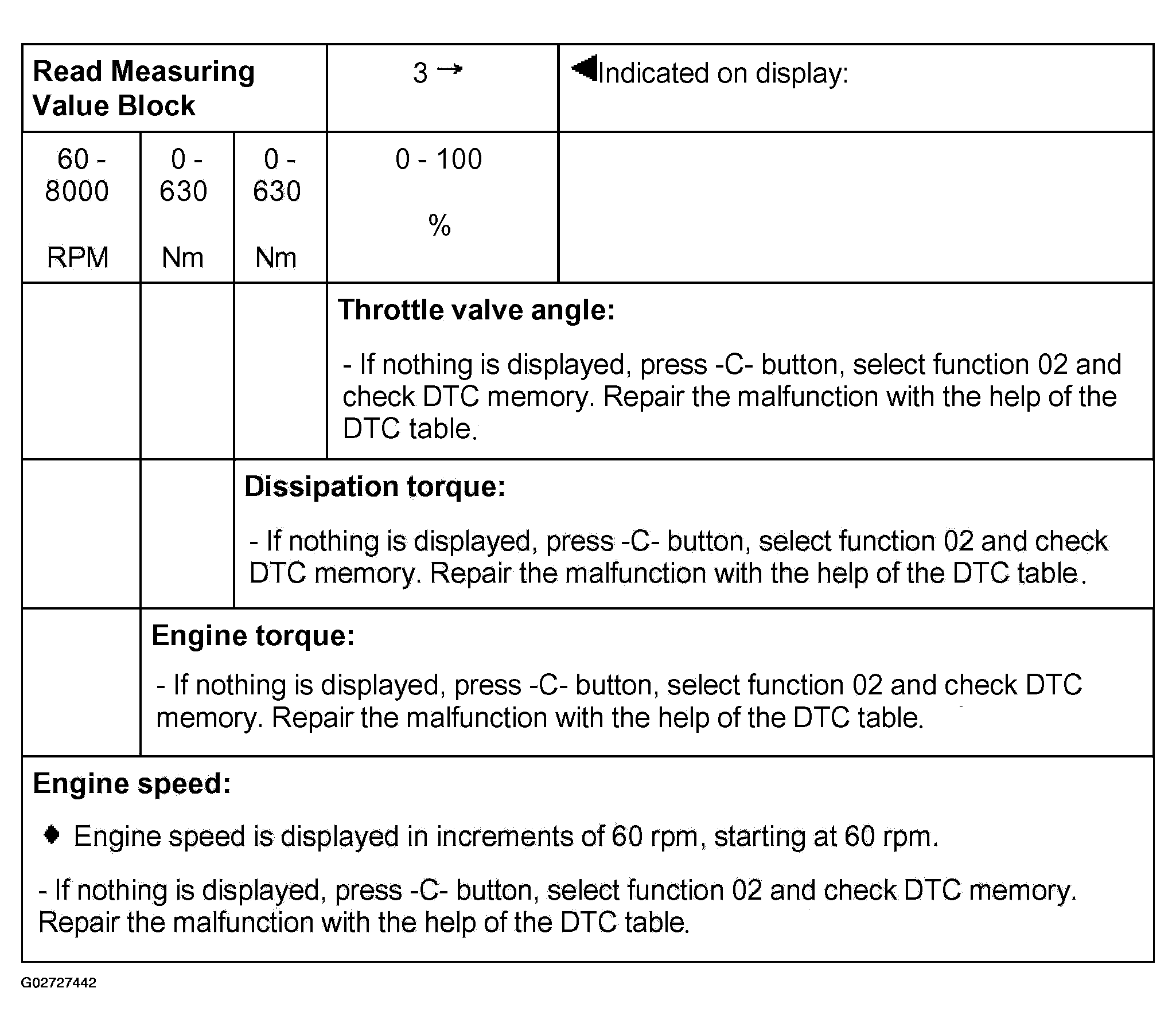

Fig 1: Test Table: Display Group 3 (003) - Bosch 5.3

Courtesy of AUDI OF AMERICA, INC.

For the DTC table, see DTC TABLE .

NOTE:

OBD is terminated by ABS Control Module (w/EDL) -J104- if road speed exceeds 19 km/h (12 MPH).
The actual engine speed (RPM) is calculated by subtracting the dissipation torque from the engine torque.

NOTE: The display group numbers can be selected in sequence by pressing buttons <-1 and 3-> on the VAG1551 scan tool, arrow buttons "UP" and "DOWN" on the VAG1552 scan tool, or the arrow buttons "UP" and "DOWN" on the screen of the VAS5051 tester.

Press -C- button to input display group number manually.

Indicated on display

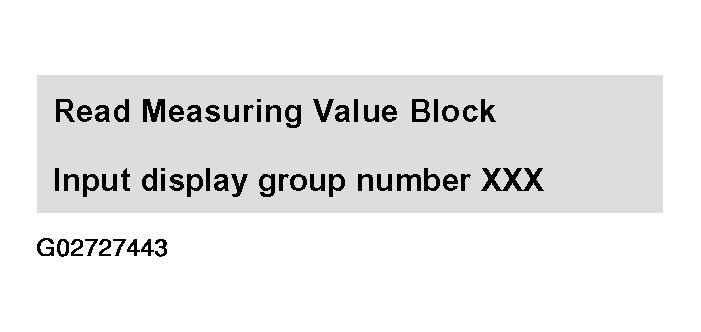

Fig 2: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -4-.
Press the -Q- button to confirm input.
