Function Mode 08: Reading Measured Value Block

NOTE: This mode is used to observe the current system status.

When RAPID DATA TRANSFER SELECT FUNCTION XX is displayed, press 0 then 8 (08). RAPID DATA TRANSFER 08-READ MEASURING VALUE BLOCK will be displayed. Press "Q" key to confirm input. Select display group to be observed. For central locking and anti-theft system, see Fig 1 -Fig 9 . For ultrasonic interior monitoring for anti-theft system, see Fig 10 or Fig 11 . Enter display group. Press "Q" key to confirm input. After completing test, press right arrow key to return to select function mode.

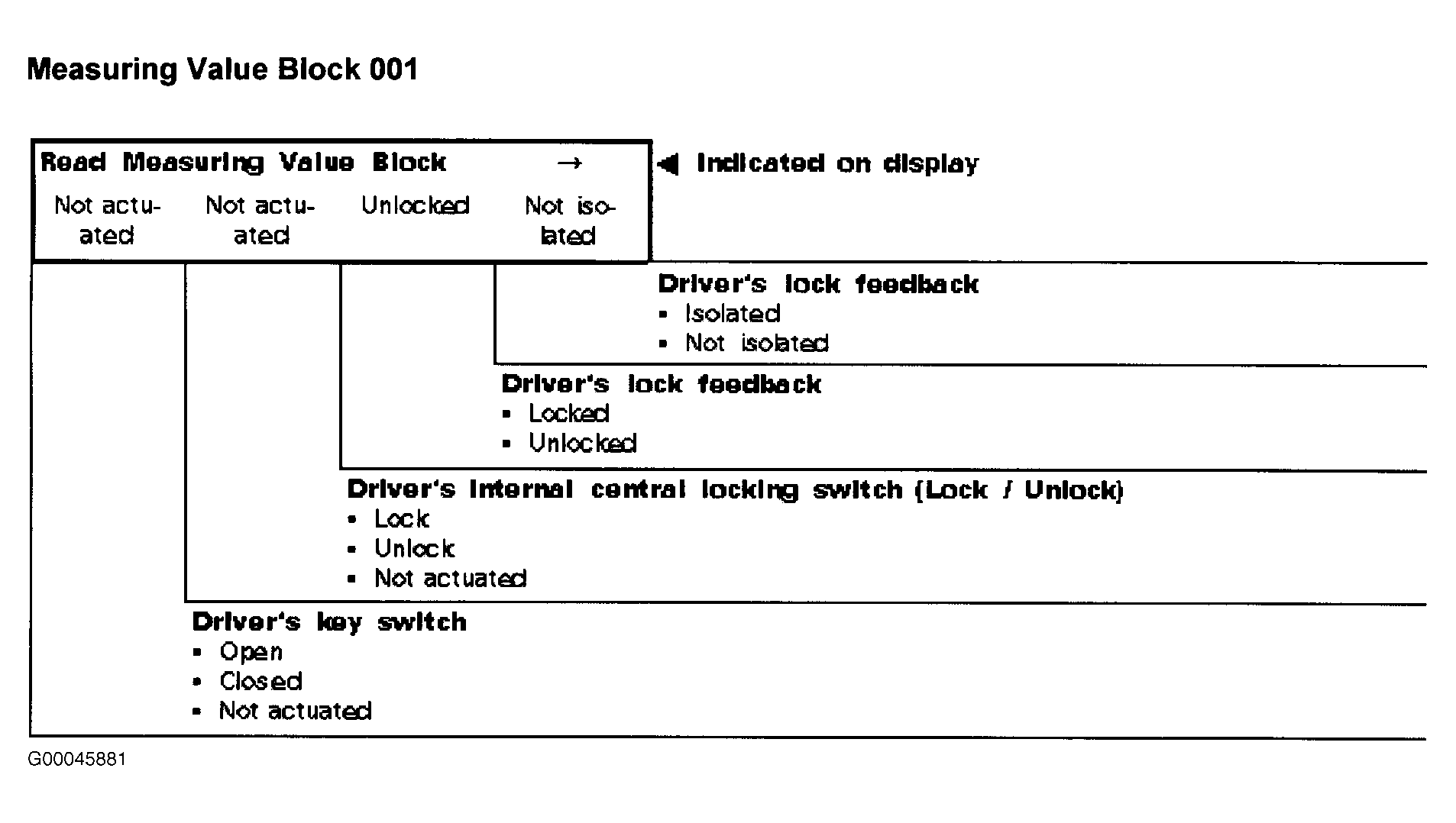

Fig 1: Display Group 001 Character Identification (Central Locking & Anti-Theft System)

G00045881

Courtesy of AUDI OF AMERICA, INC.

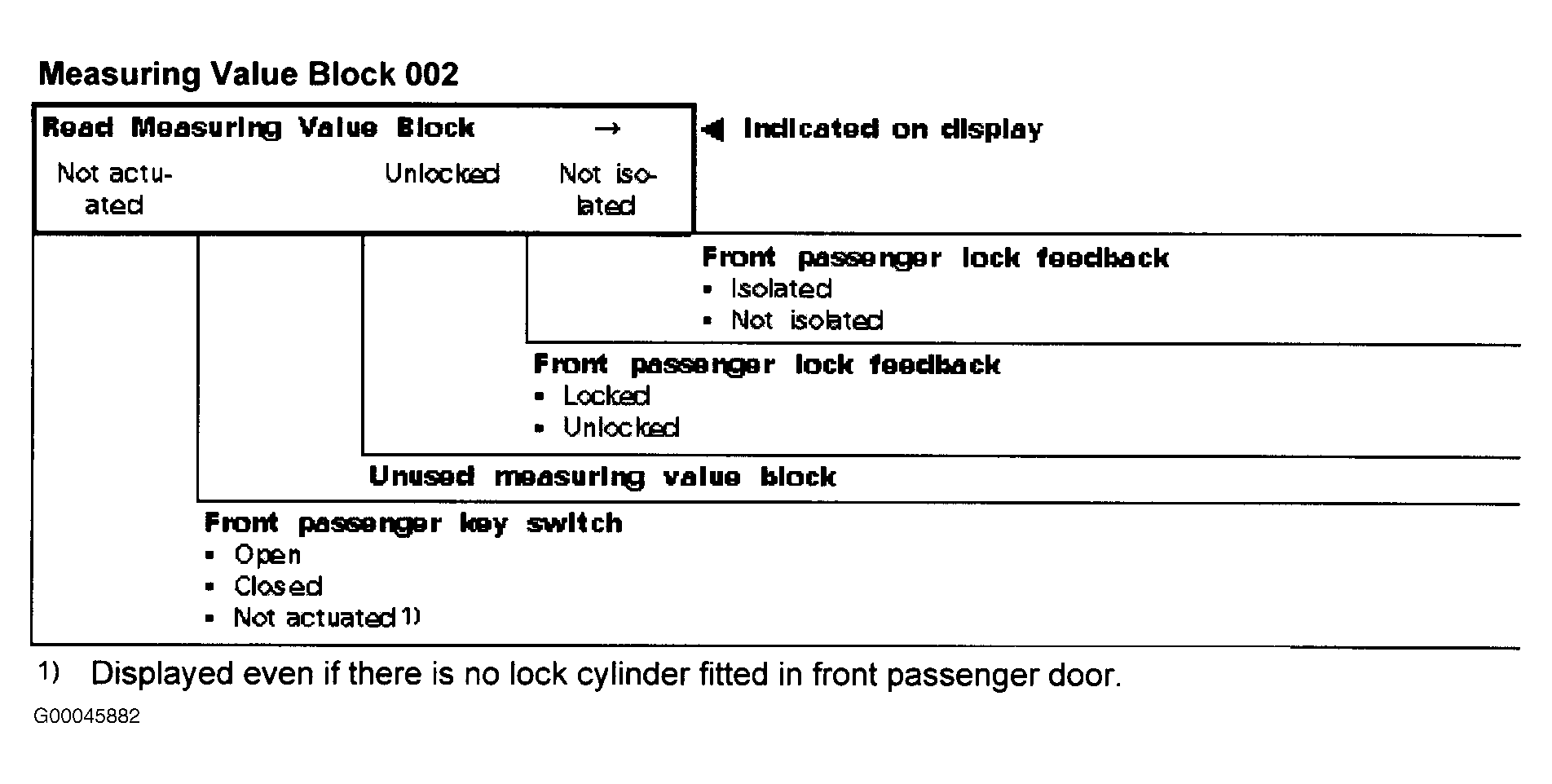

Fig 2: Display Group 002 Character Identification (Central Locking & Anti-Theft System)

G00045882

Courtesy of AUDI OF AMERICA, INC.

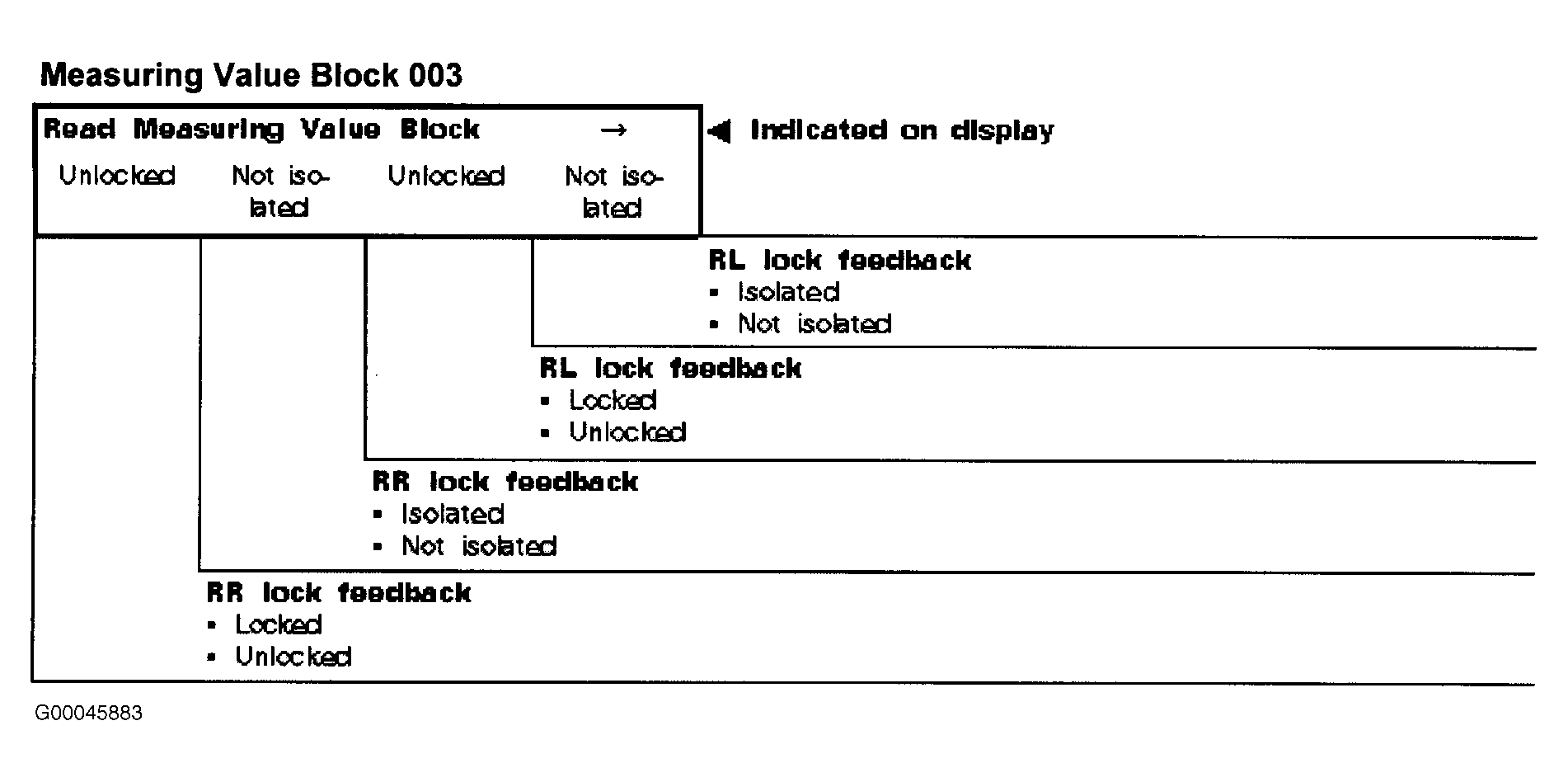

Fig 3: Display Group 003 Character Identification (Central Locking & Anti-Theft System)

G00045883

Courtesy of AUDI OF AMERICA, INC.

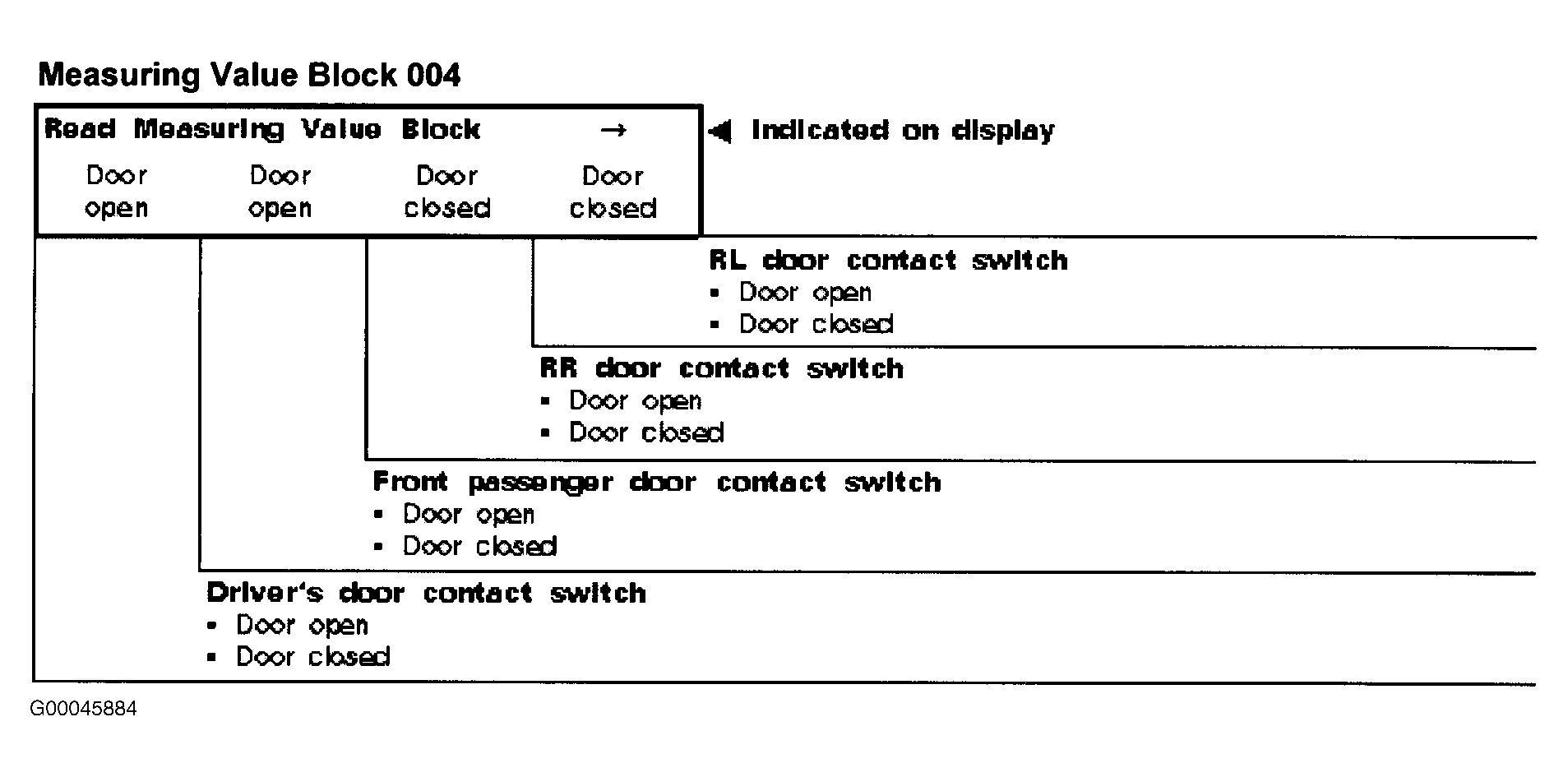

Fig 4: Display Group 004 Character Identification (Central Locking & Anti-Theft System)

G00045884

Courtesy of AUDI OF AMERICA, INC.

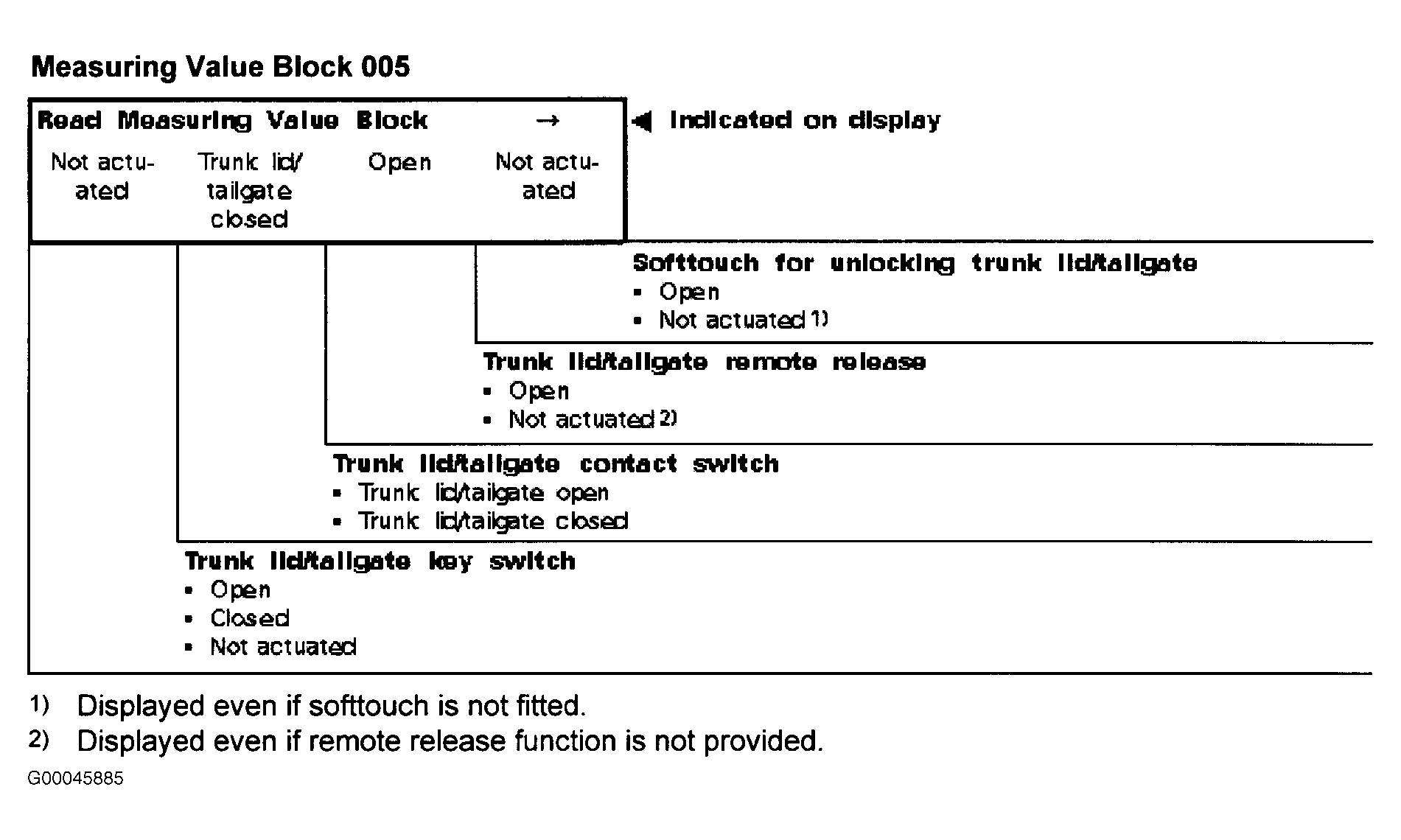

Fig 5: Display Group 005 Character Identification (Central Locking & Anti-Theft System)

G00045885

Courtesy of AUDI OF AMERICA, INC.

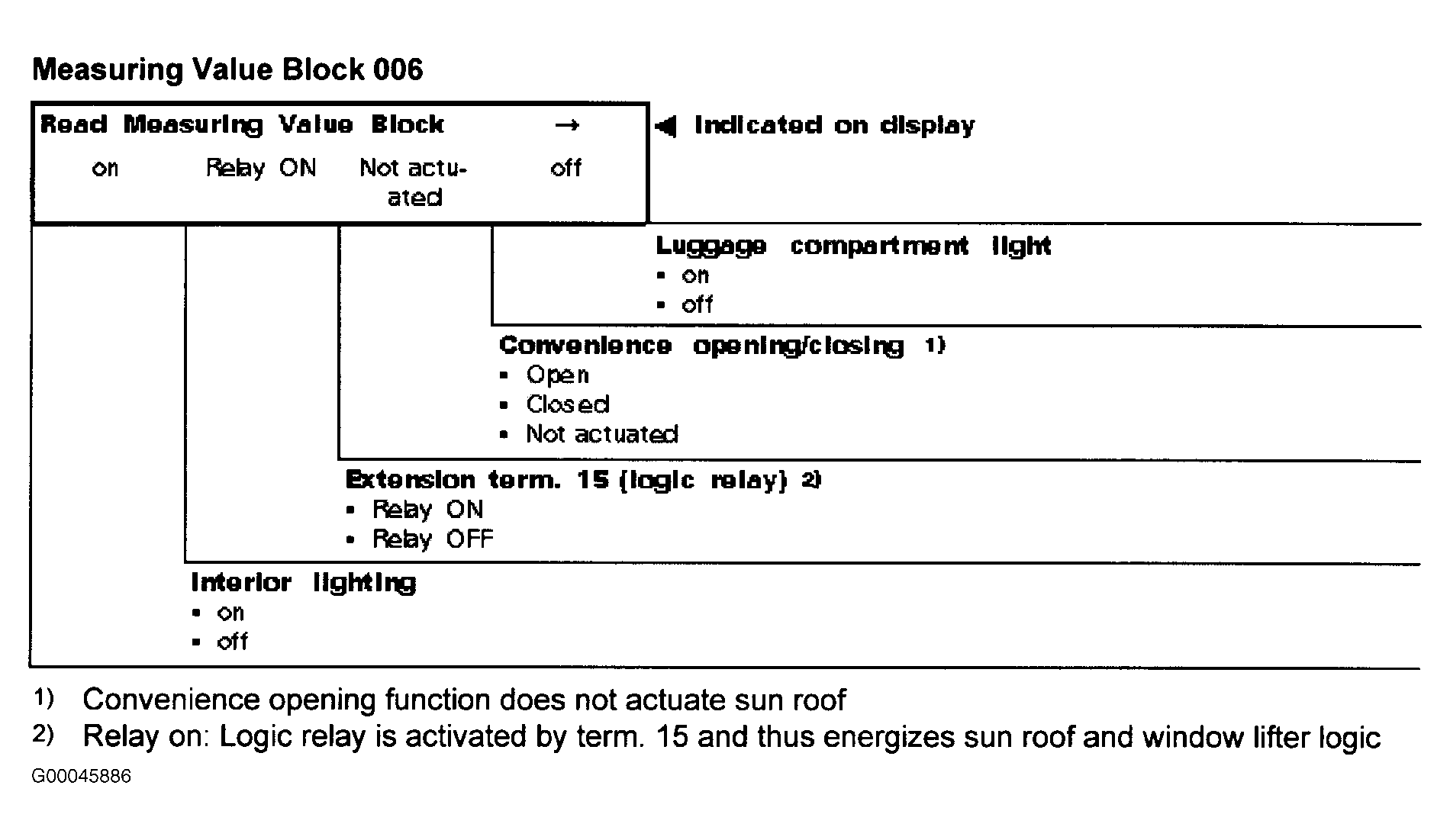

Fig 6: Display Group 006 Character Identification (Central Locking & Anti-Theft System)

G00045886

Courtesy of AUDI OF AMERICA, INC.

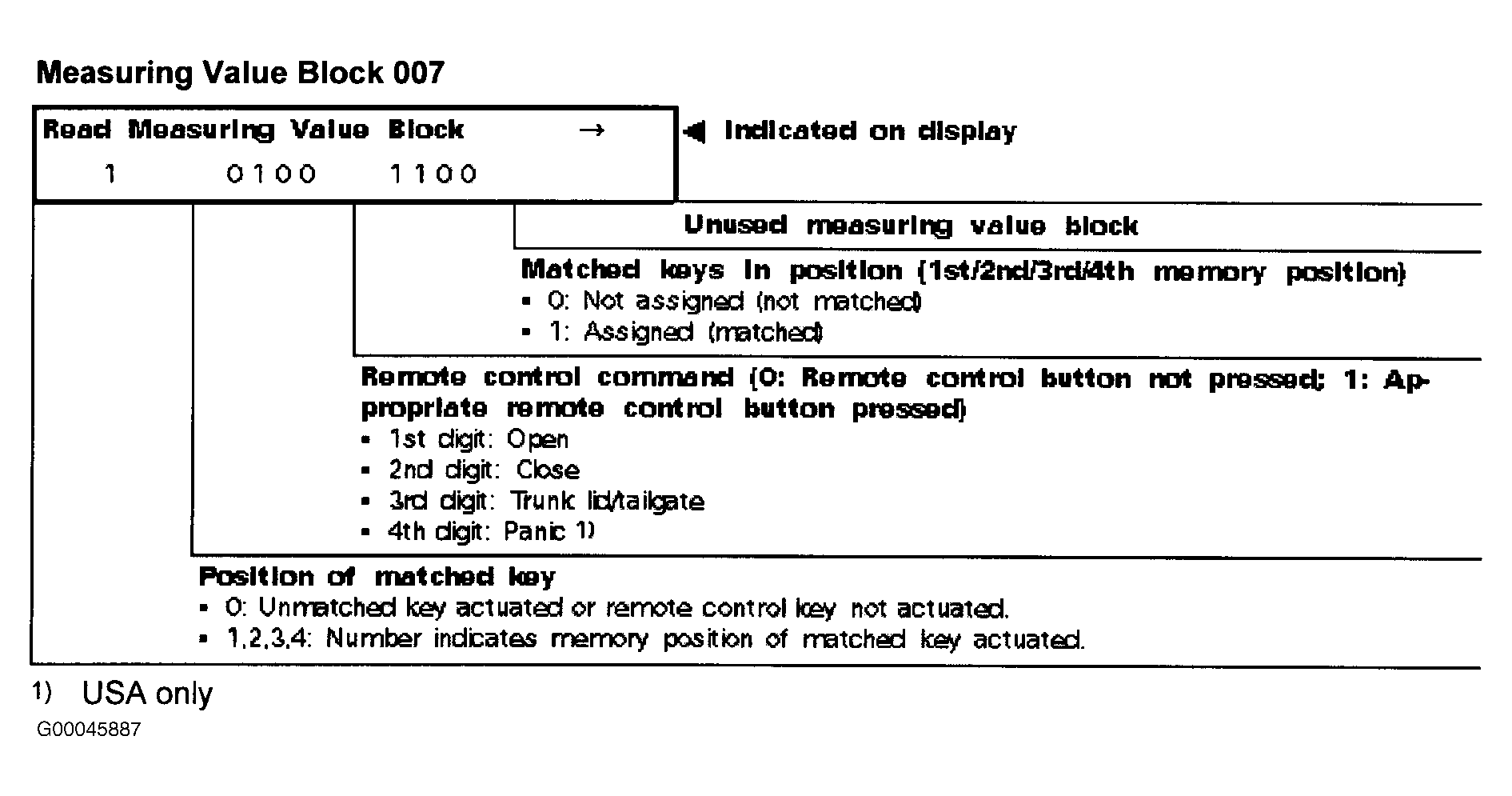

Fig 7: Display Group 007 Character Identification (Central Locking & Anti-Theft System)

G00045887

Courtesy of AUDI OF AMERICA, INC.

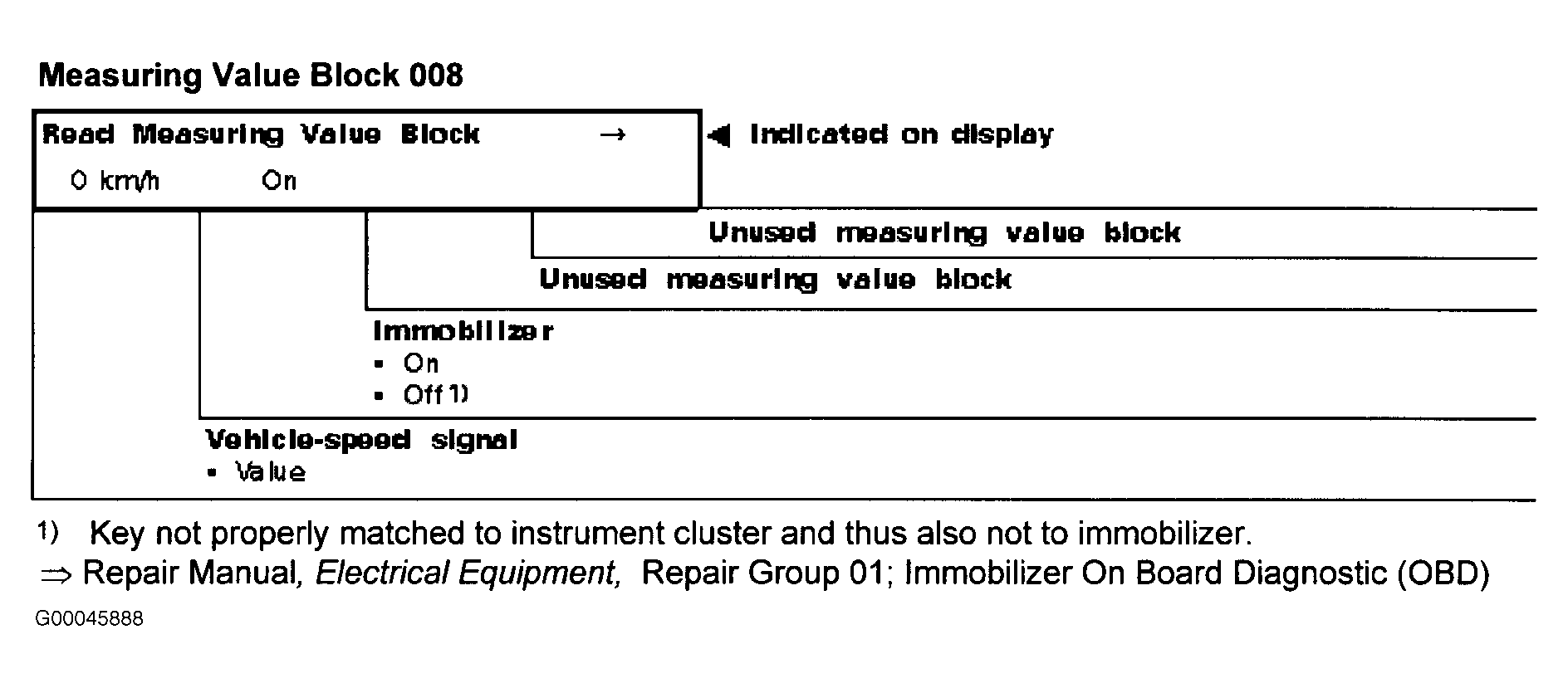

Fig 8: Display Group 008 Character Identification (Central Locking & Anti-Theft System)

G00045888

Courtesy of AUDI OF AMERICA, INC.

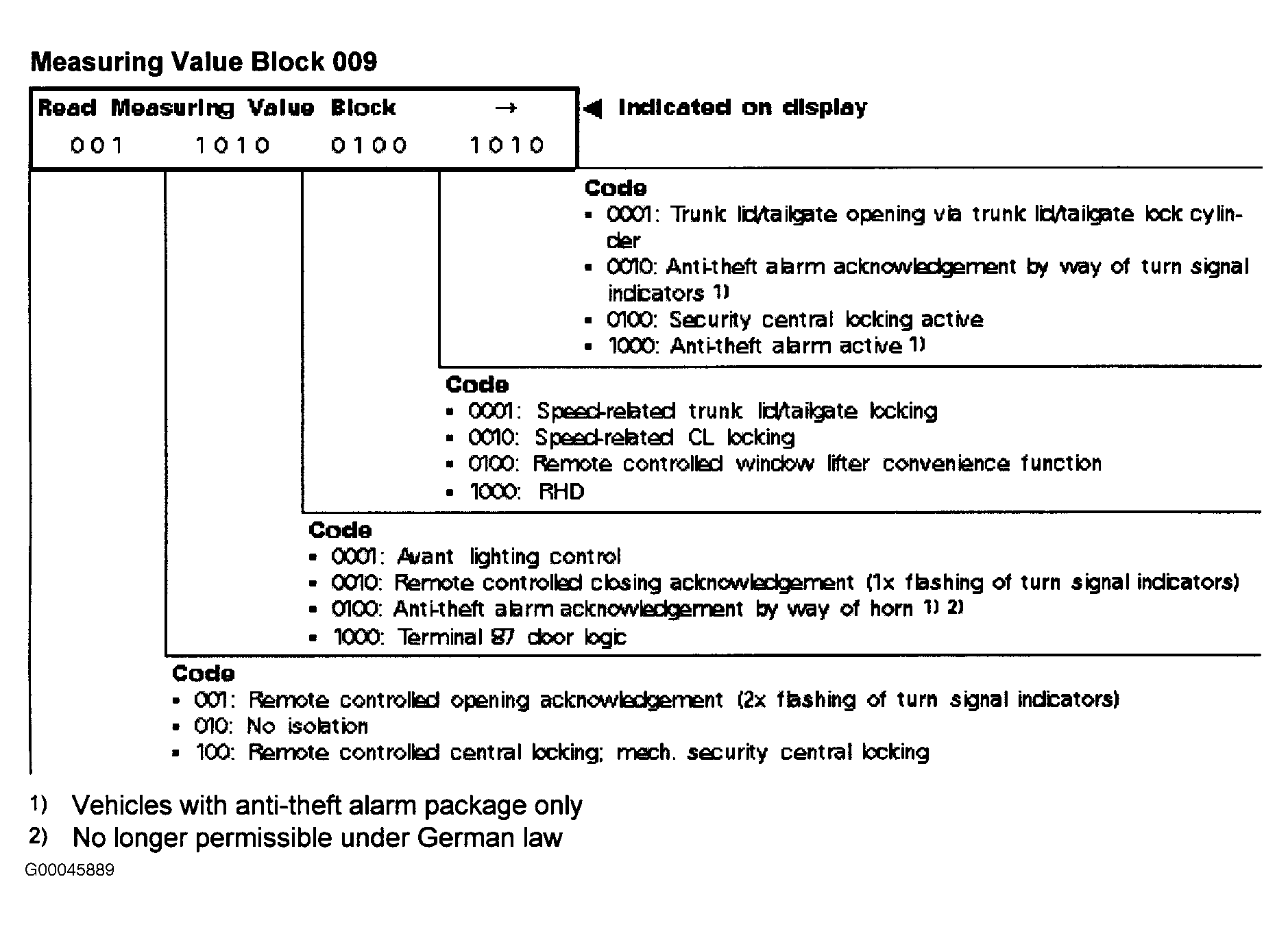

Fig 9: Display Group 009 Character Identification (Central Locking & Anti-Theft System)

G00045889

Courtesy of AUDI OF AMERICA, INC.

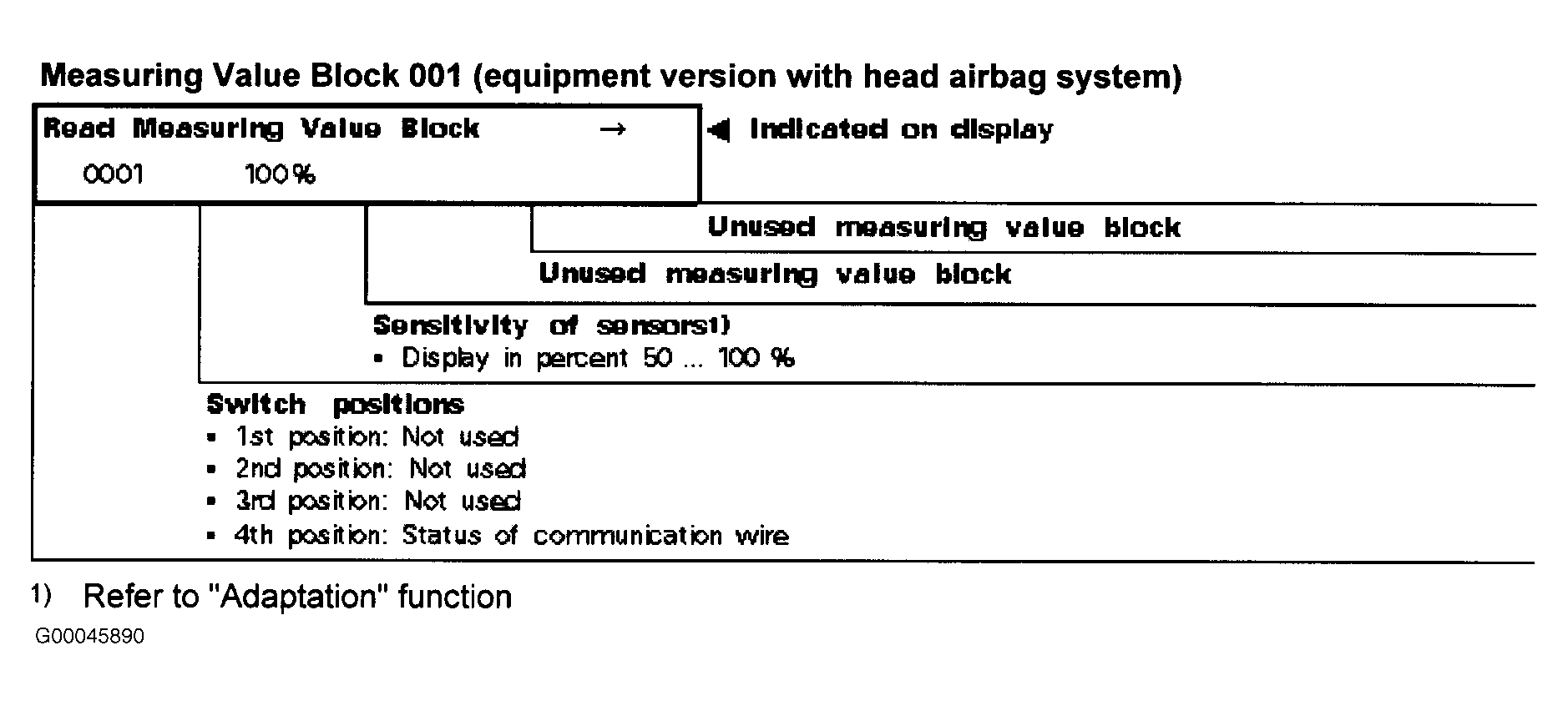

Fig 10: Display Group 001 Character Identification (Ultrasonic Interior Monitoring Of Anti-Theft System With Head Air Bag System)

G00045890

Courtesy of AUDI OF AMERICA, INC.

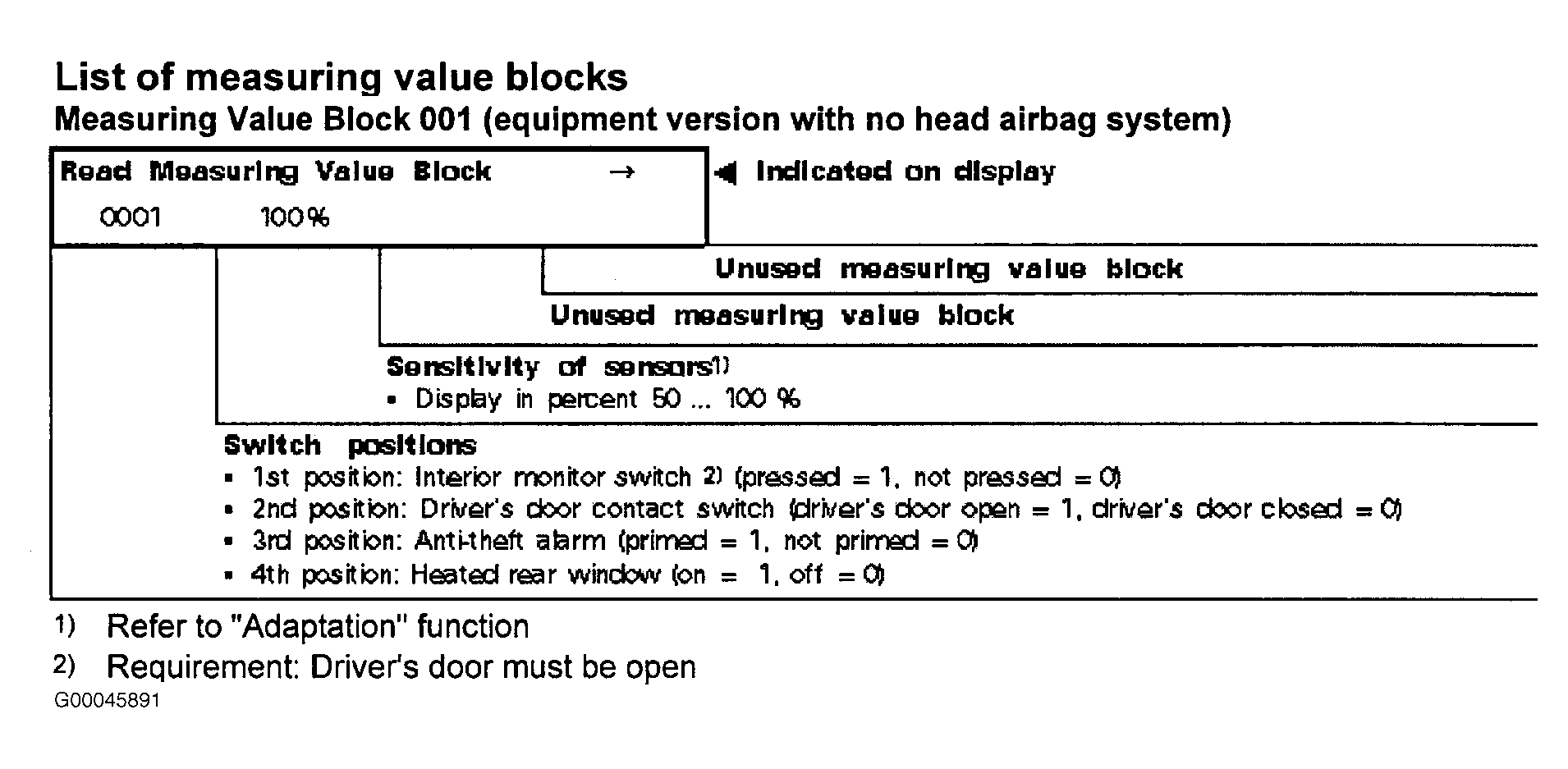

Fig 11: Display Group 001 Character Identification (Ultrasonic Interior Monitoring Of Anti-Theft System Without Head Air Bag System)

G00045891

Courtesy of AUDI OF AMERICA, INC.
