Test sequence: Notes

• Disconnect 2-pin connector -1- from Secondary Air Injection (AIR) Solenoid Valve -N112- (-2-).

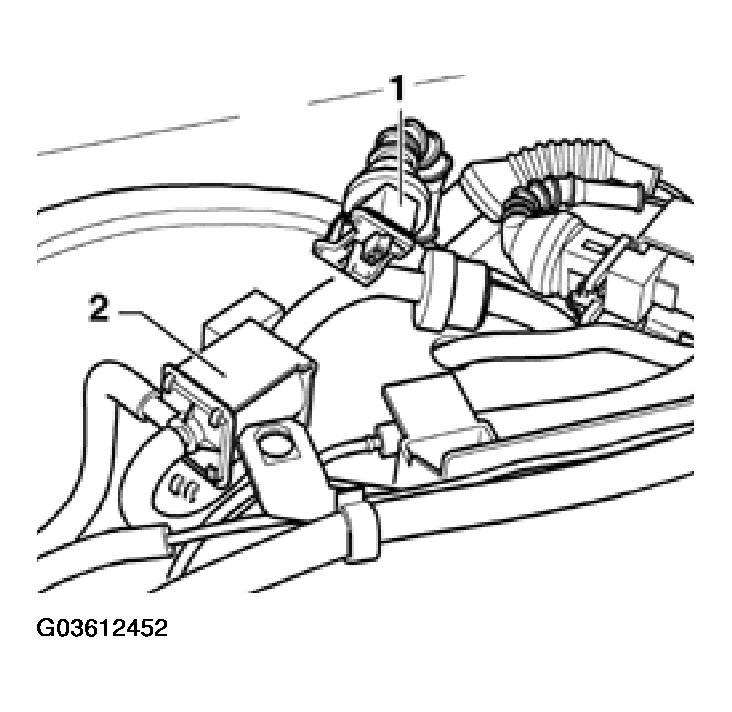

  Fig 1: Disconnecting Pin Connector From Secondary Air Injection (AIR) Solenoid Valve


• Measure resistance between terminals of solenoid valve.

  Specified value: 25.0 to 35.0 ohm

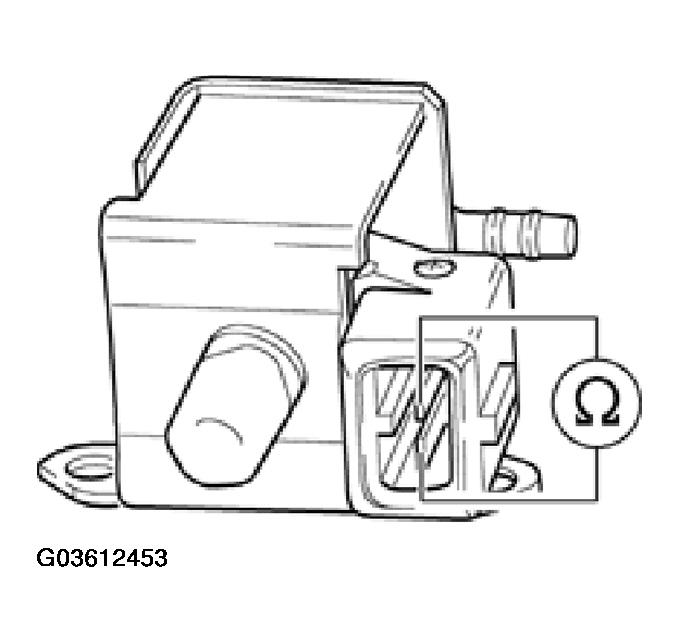

  Fig 2: Measuring Resistance Between Terminals Of Secondary Air Injection (AIR) Solenoid Valve



If specified value is not obtained:

• Replace Secondary Air Injection (AIR) Solenoid Valve -N112-. See CONNECTING PIPE AND COMBINATION VALVES - ASSEMBLY OVERVIEW  , item 6.
• Erase DTC memory of Engine Control Module (ECM). See DIAGNOSTIC MODE 4: RESET/ERASE DIAGNOSTIC DATA .
• Generate readiness code. See READINESS CODE, GENERATING .

If specified value is obtained:

• Connect test box to control module wiring harness. See TEST BOX, CONNECTING FOR WIRING TEST .
