Initiating "Read Measuring Value Block" function 08

Start engine.
Set A/C Control Head -E87- to "AUTO" mode (compressor is switched on).
Allow fresh air blower to run at high speed for approximately 1 minute (to allow positioning motors to settle into their final positions).
Connect VAG 1551 scan tool and press buttons -0- and -8- to insert "A/C Heating Electronics" address word 08 and advance program until "Select function XX" appears on display. See ON BOARD DIAGNOSTIC (OBD), INITIATING .

Indicated on display (function selection):

Fig 1: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (1 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- to initiate "Read measuring value block", function 08.

Indicated on display:

Fig 2: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (2 Of 6)

Courtesy of AUDI OF AMERICA, INC.

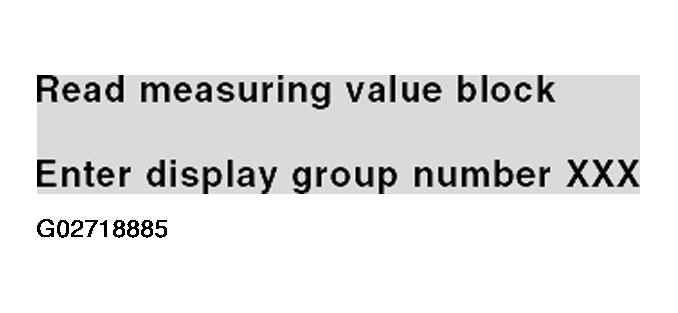

Indicated on display:

Fig 3: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (3 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Input display group number
For overview for vehicles up to model year 2001, see READ MEASURING VALUE BLOCKS (VEHICLES UP TO MODEL YEAR 2001) .

For overview for vehicles from model year 2002, see MEASURING VALUE BLOCKS (VEHICLES FROM MODEL YEAR 2002) .
Press -Q- button to confirm input.

Indicated on display:

Fig 4: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (4 Of 6)

Courtesy of AUDI OF AMERICA, INC.

To select another display group:

Indicated on display:

Fig 5: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (5 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Input display group number.
NOTE:
- Pressing the -3- button advances the program to the next display group. Pressing the -1- button moves the program back by one display group.
- If specified values are not obtained in all display fields:
Press --> button.

Indicated on display:

Fig 6: V.A.G 1551 Scan Tool Display - Initiating Read Measuring Value Block (6 Of 6)

Courtesy of AUDI OF AMERICA, INC.
