Shift Mechanism: Notes

NOTE: Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2).

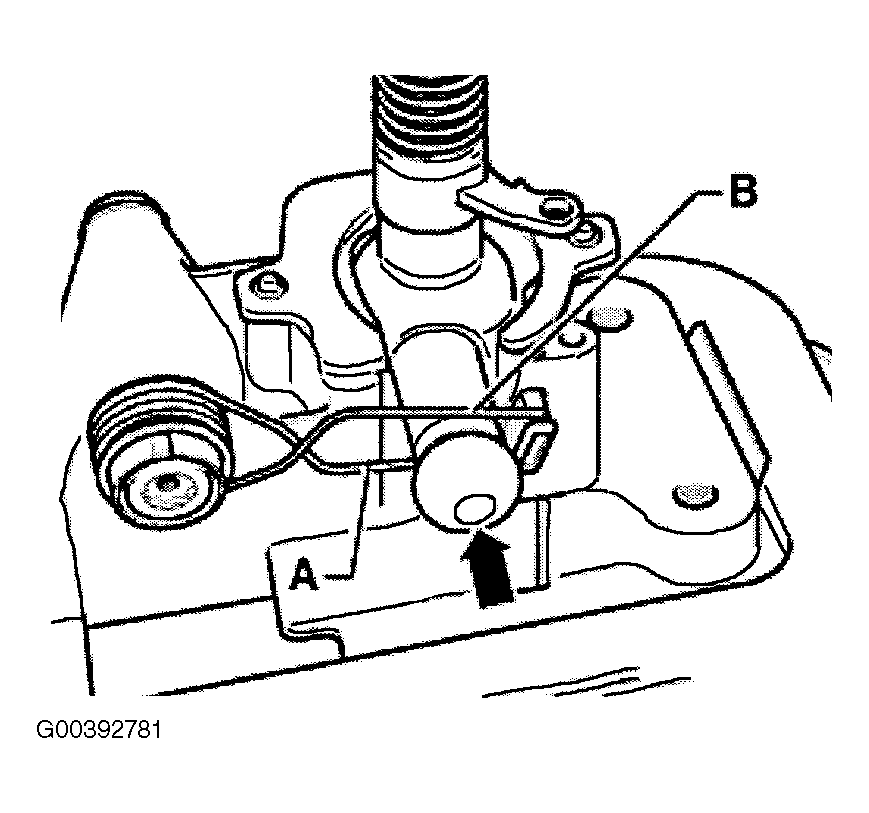

To identify shifter mechanism components. See Fig 1-Fig 3 . To install fulcrum pin spring for gear shift housing, (item 15 in Fig 2), see Figure.

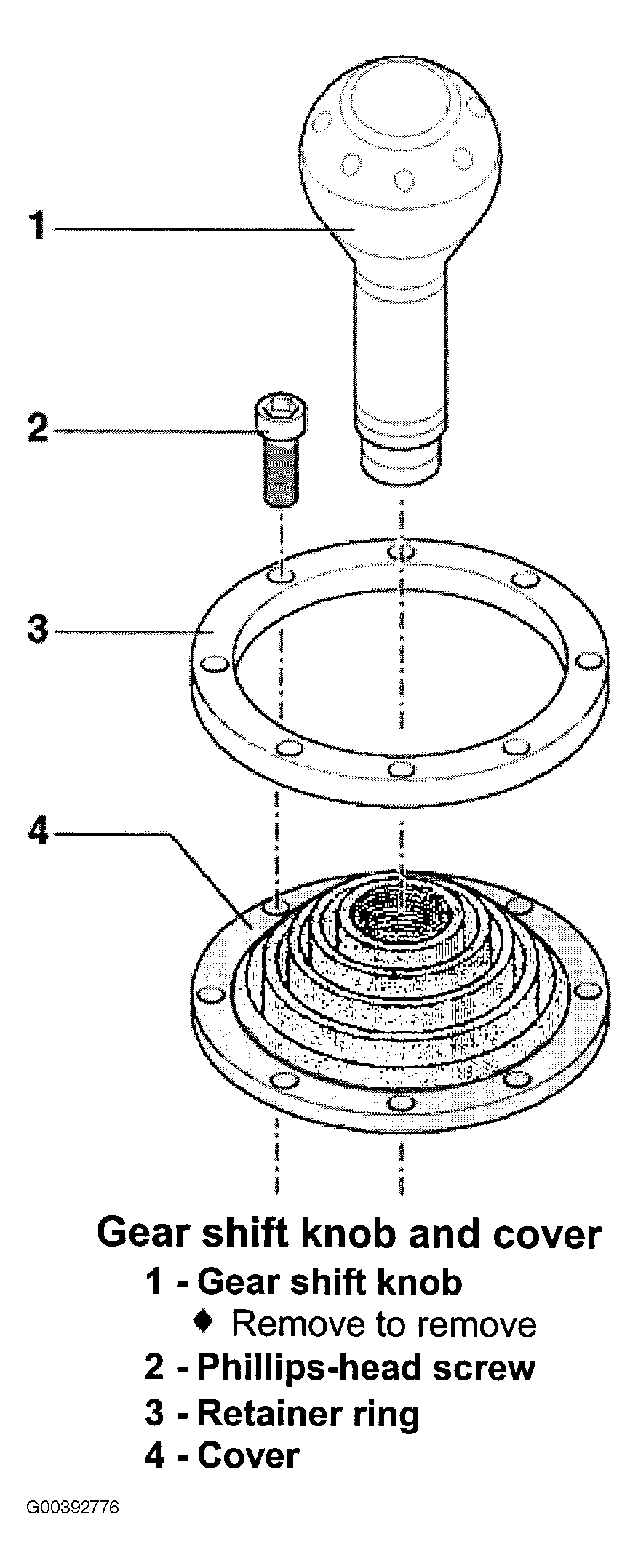

Fig 1: Identifying Gear Shift Knob & Cover

Courtesy of AUDI OF AMERICA, INC.

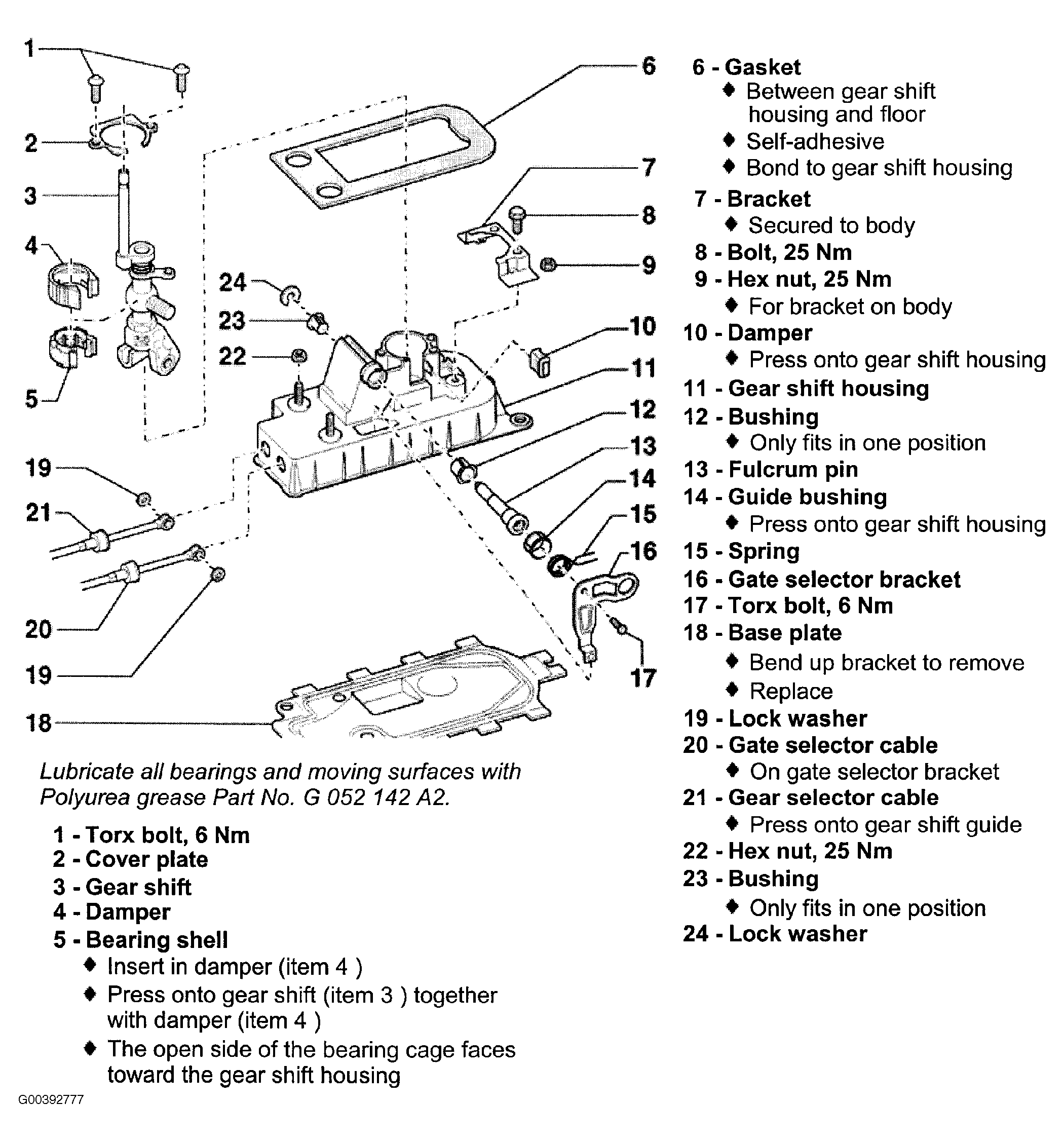

Fig 2: Identifying Gear Shift & Gear Shift Housing

Courtesy of AUDI OF AMERICA, INC.

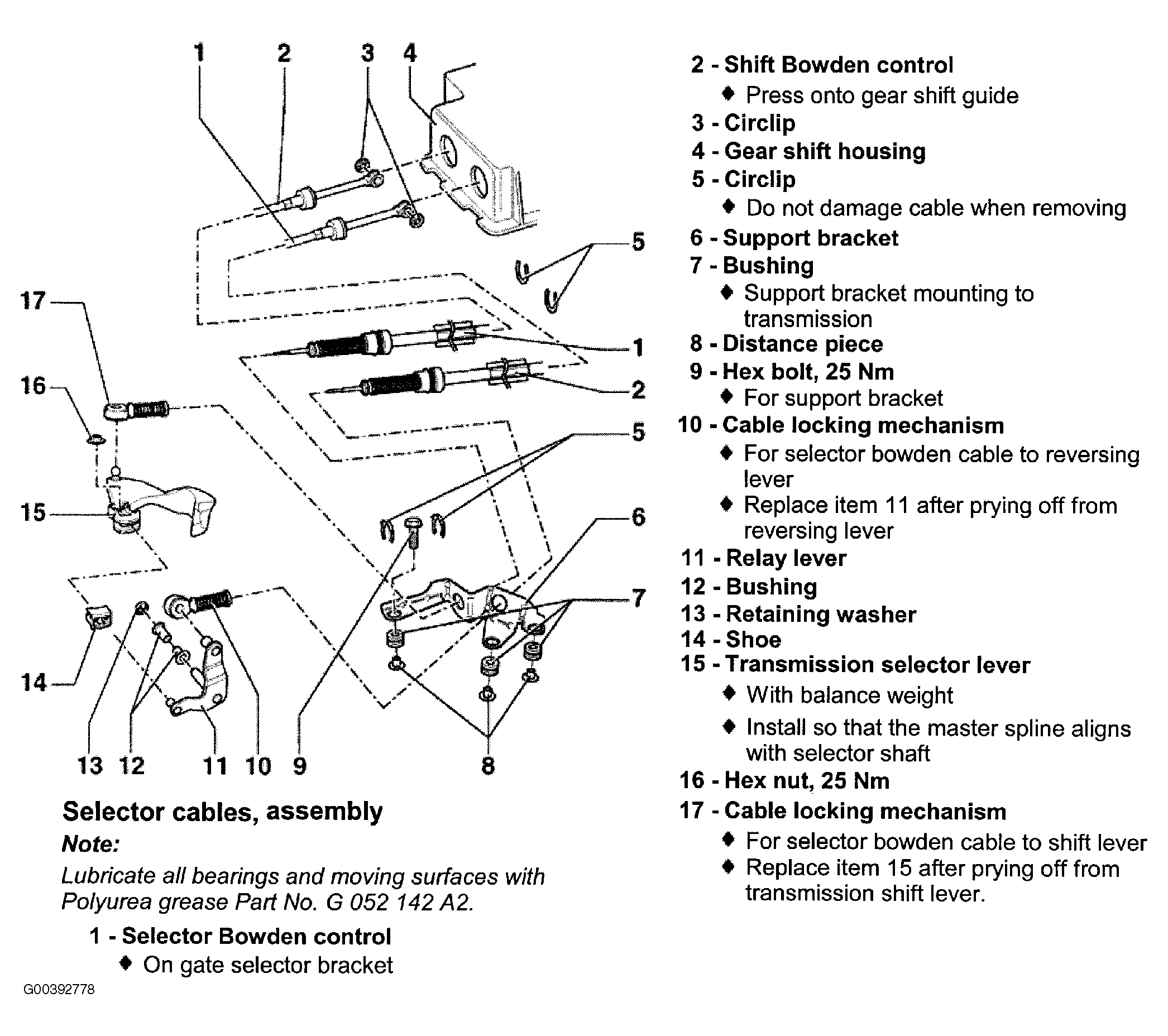

Fig 3: Identifying Selector Cables Assembly

Courtesy of AUDI OF AMERICA, INC.
