Component Locations

To locate steering system related components, see Fig 1.

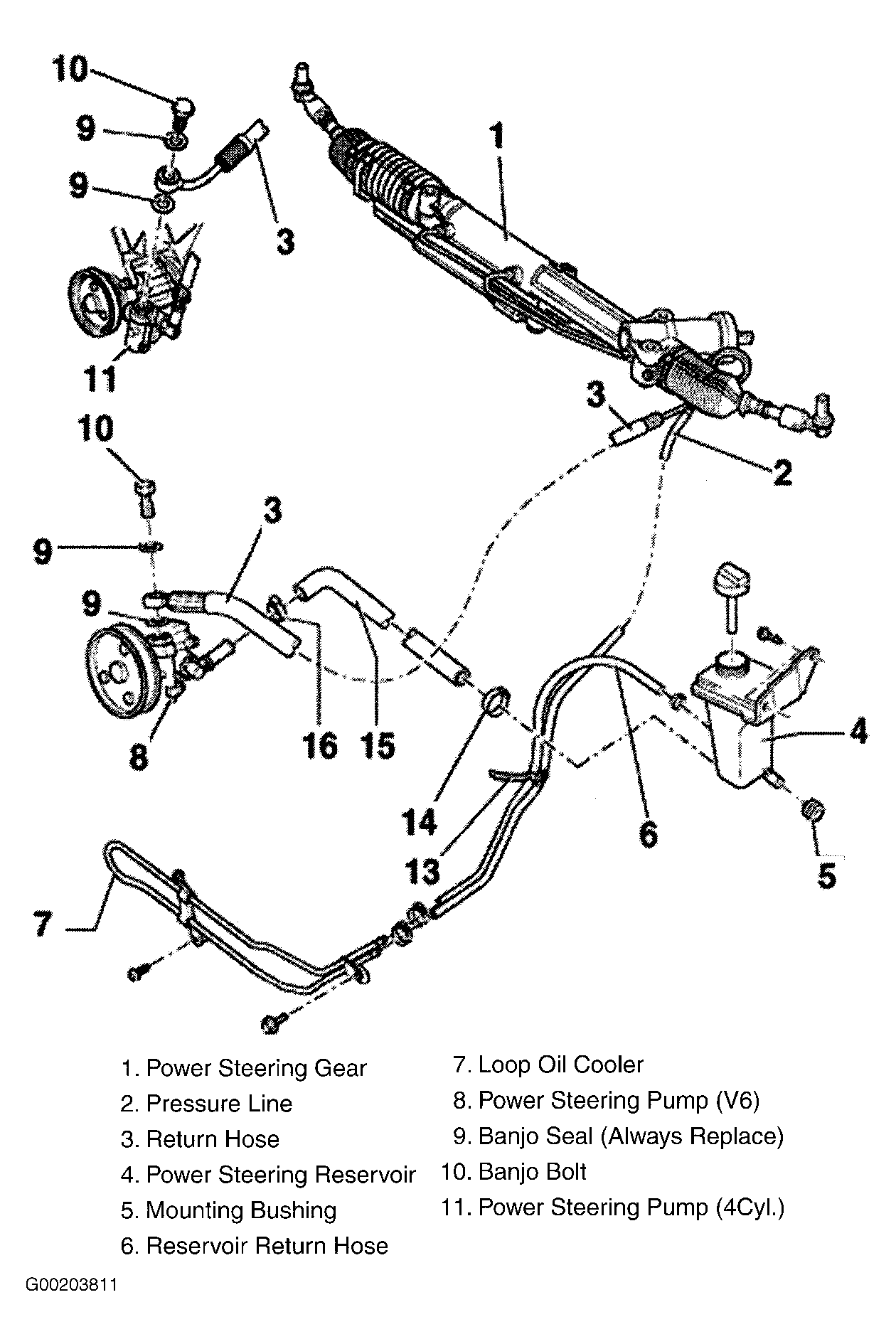

Fig 1: Exploded View Of Power Steering System

G00203811

Courtesy of AUDI OF AMERICA, INC.
