Center Console

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear part of center console is necessary for access to parking brake handle. For removal and installation procedures, see Fig 1-Fig 6 .

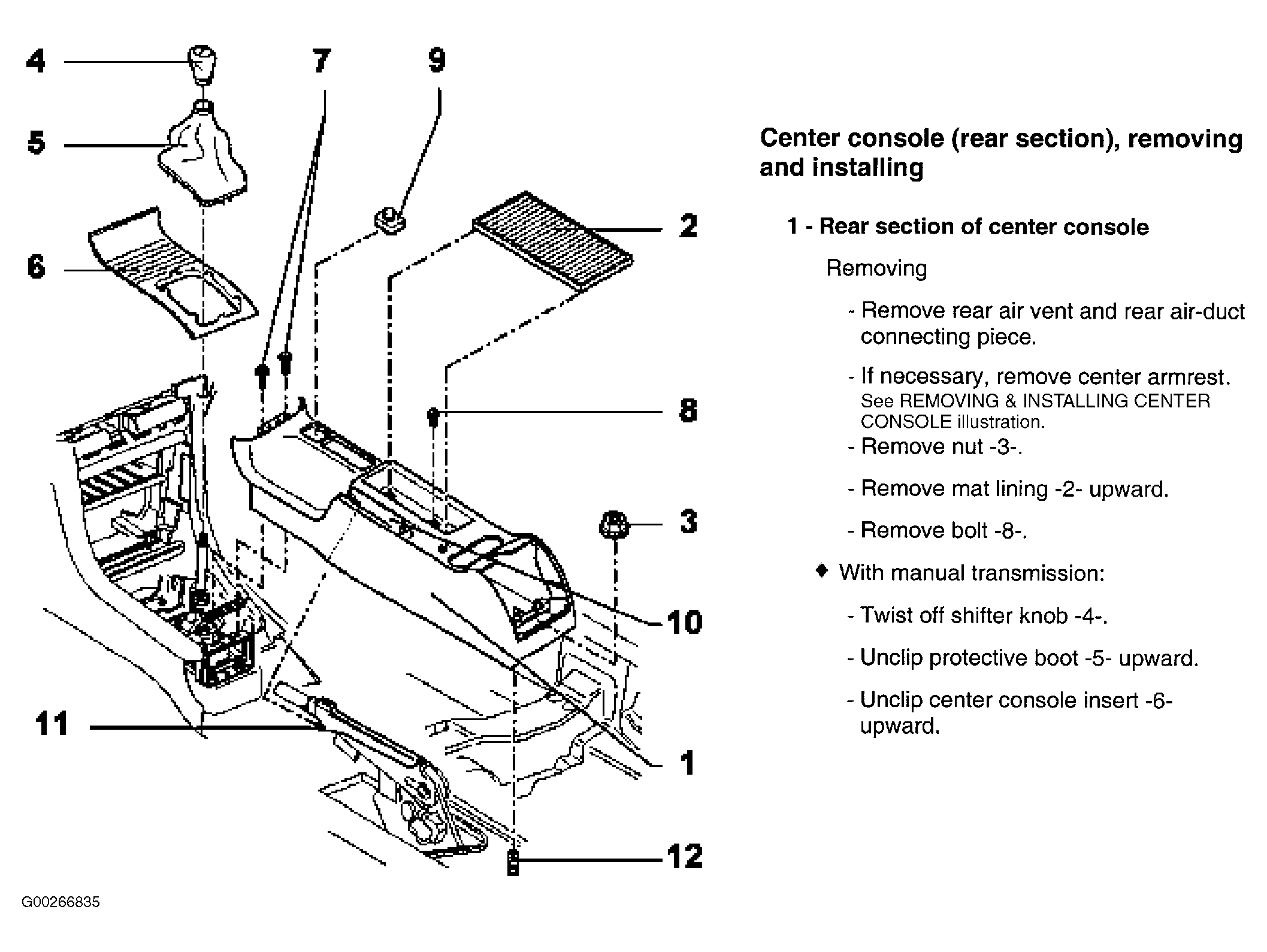

Fig 1: Removing & Installing Center Console Rear Section (1 Of 3)
G00266835Courtesy of AUDI OF AMERICA, INC.

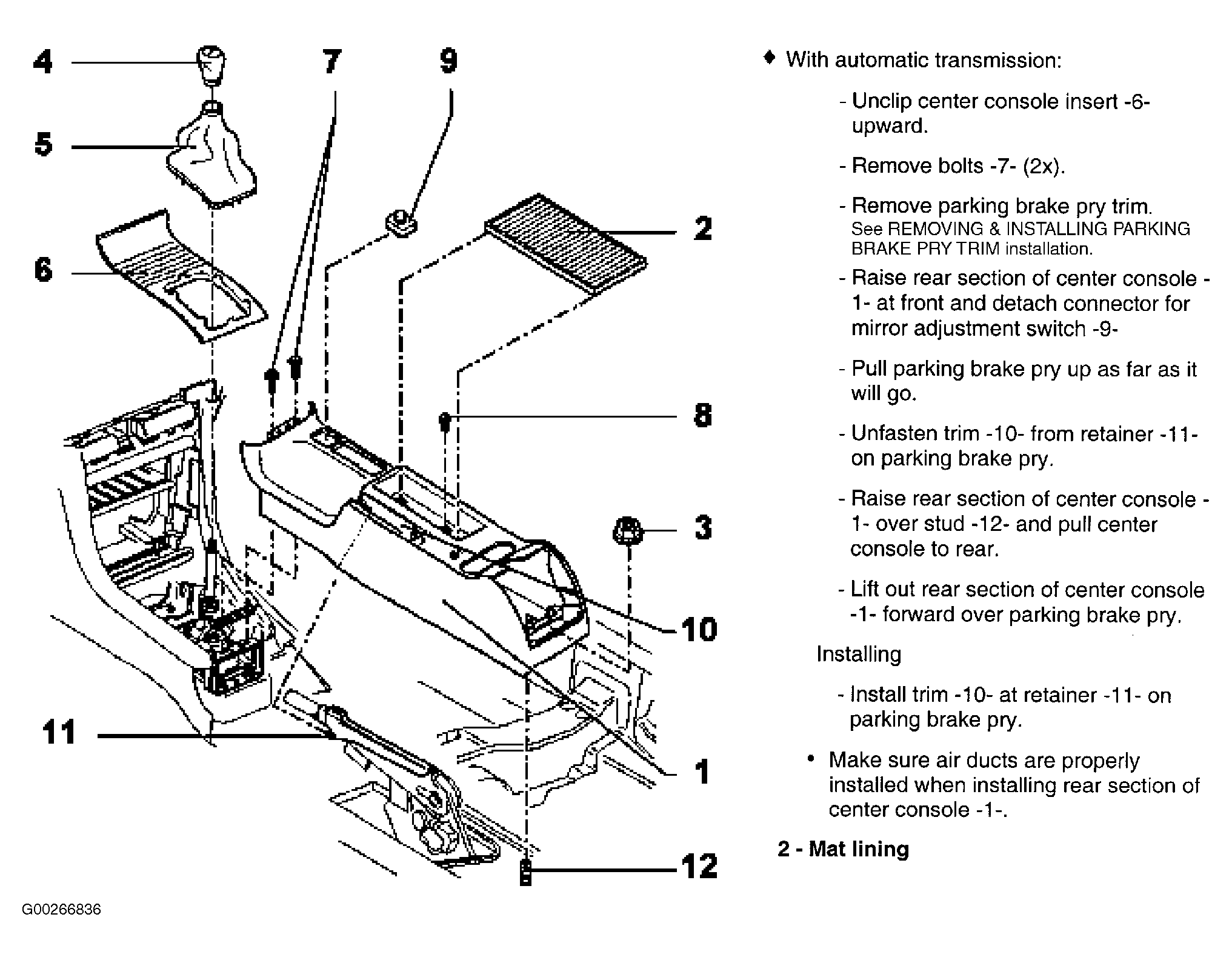

Fig 2: Removing & Installing Center Console Rear Section (2 Of 3)
G00266836Courtesy of AUDI OF AMERICA, INC.

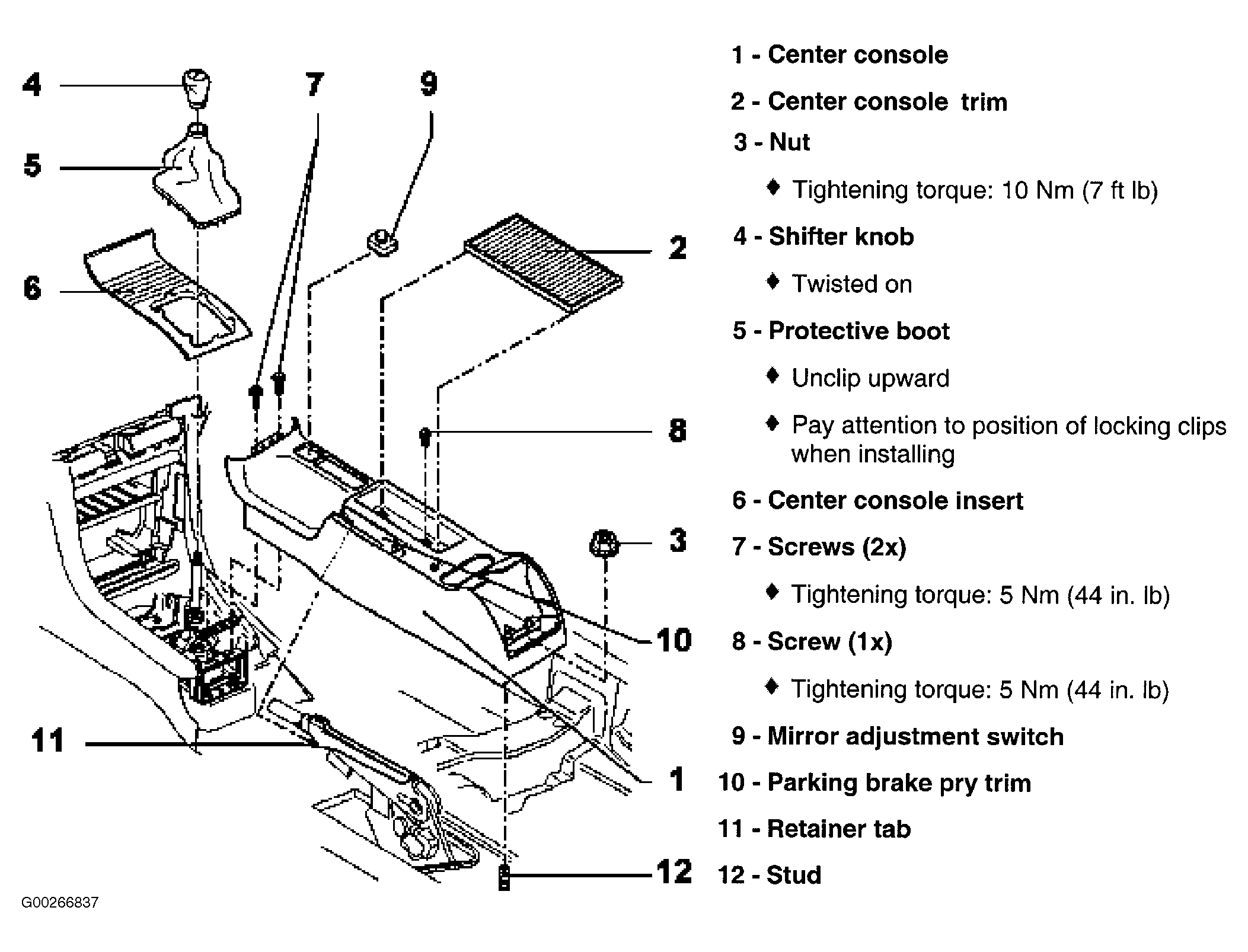

Fig 3: Removing & Installing Center Console Rear Section (3 Of 3)
G00266837Courtesy of AUDI OF AMERICA, INC.

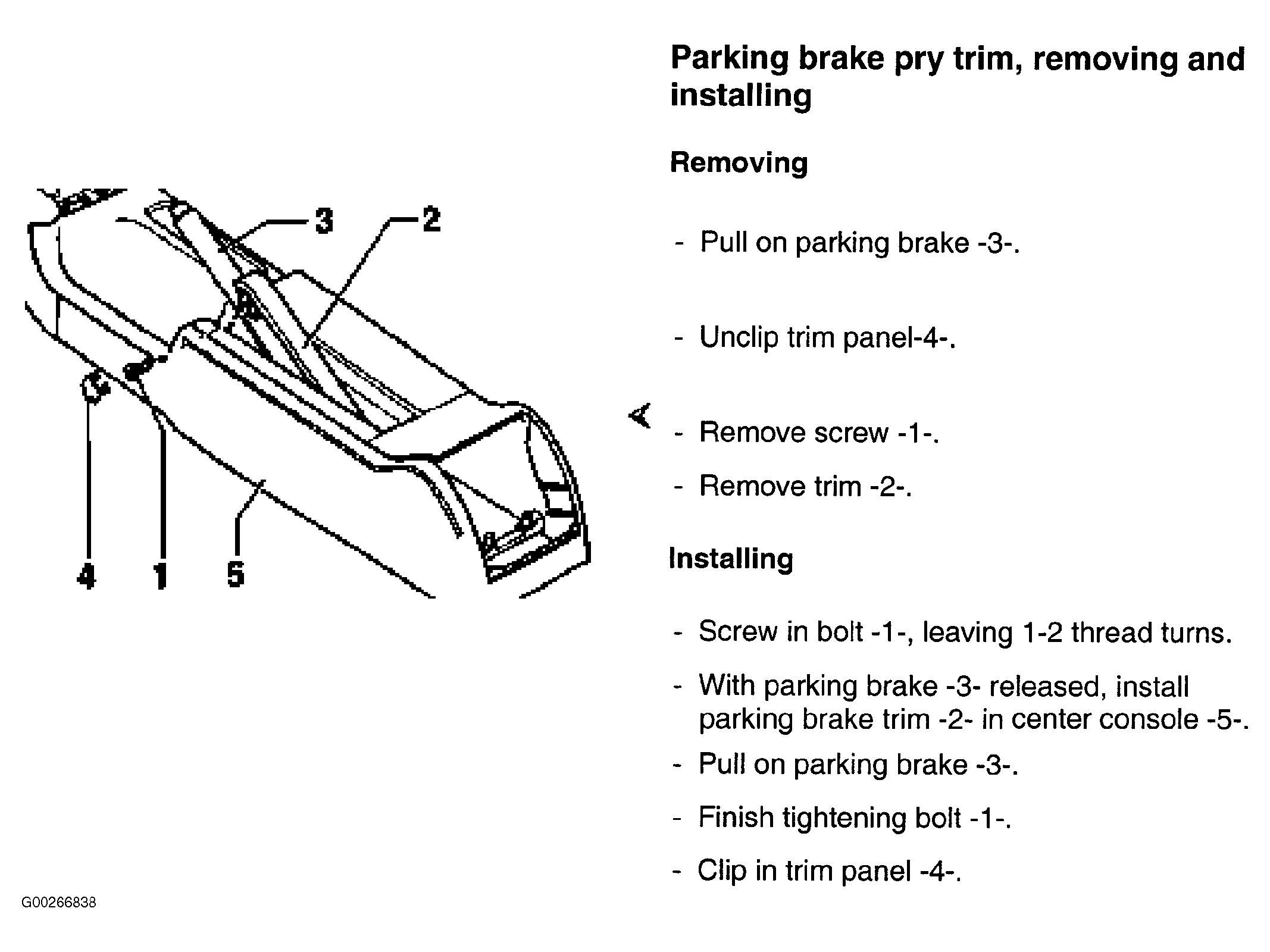

Fig 4: Removing & Installing Parking Brake Pry Trim
G00266838Courtesy of AUDI OF AMERICA, INC.

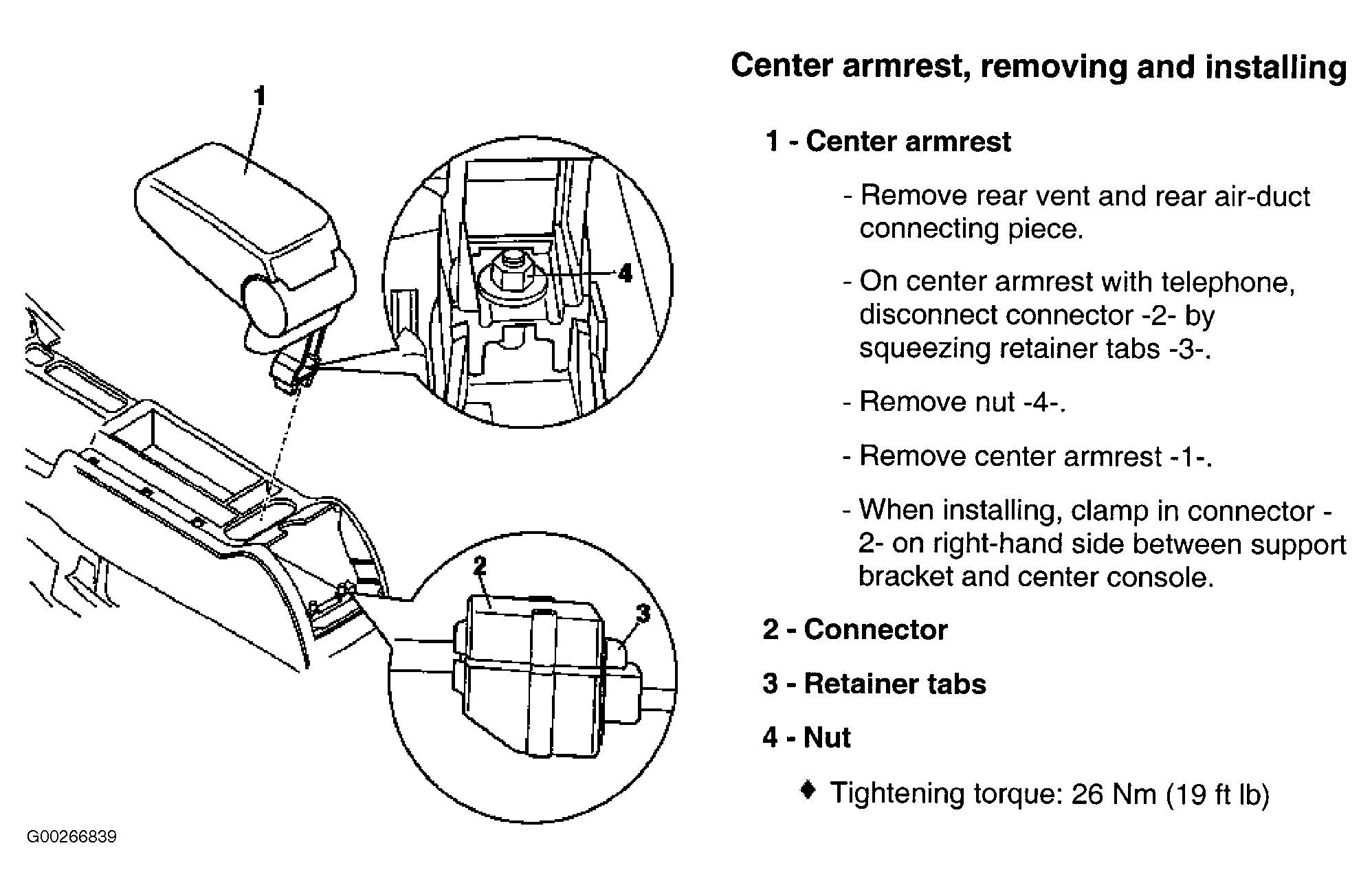

Fig 5: Removing & Installing Center Armrest (1 Of 2)
G00266839Courtesy of AUDI OF AMERICA, INC.

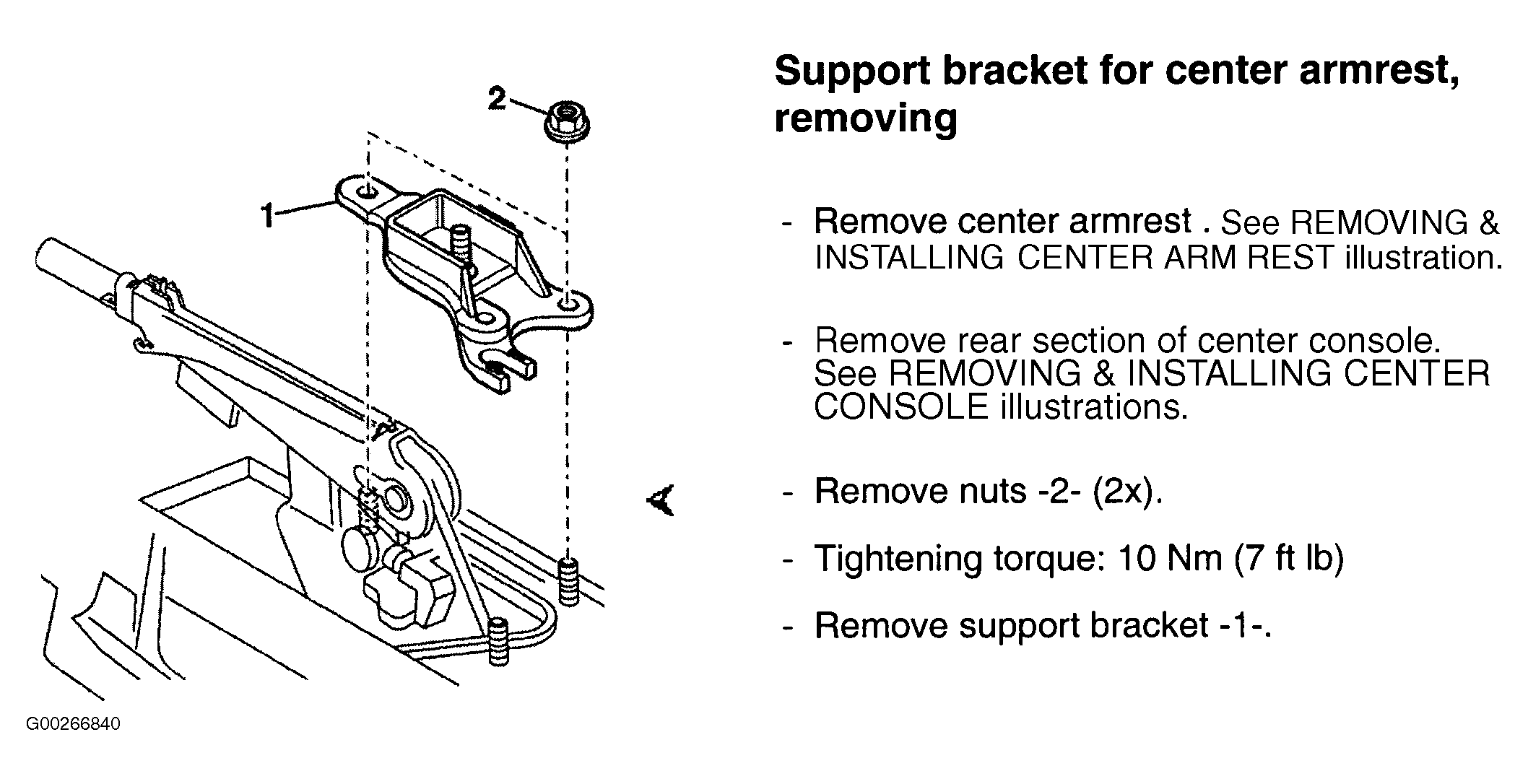

Fig 6: Removing & Installing Center Armrest (2 Of 2)
G00266840Courtesy of AUDI OF AMERICA, INC.
