Front Caliper (BREMBO): Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do NOT separate two halves of housing (socket head bolts). Replace brake caliper if protective cap for guide pins is damaged.

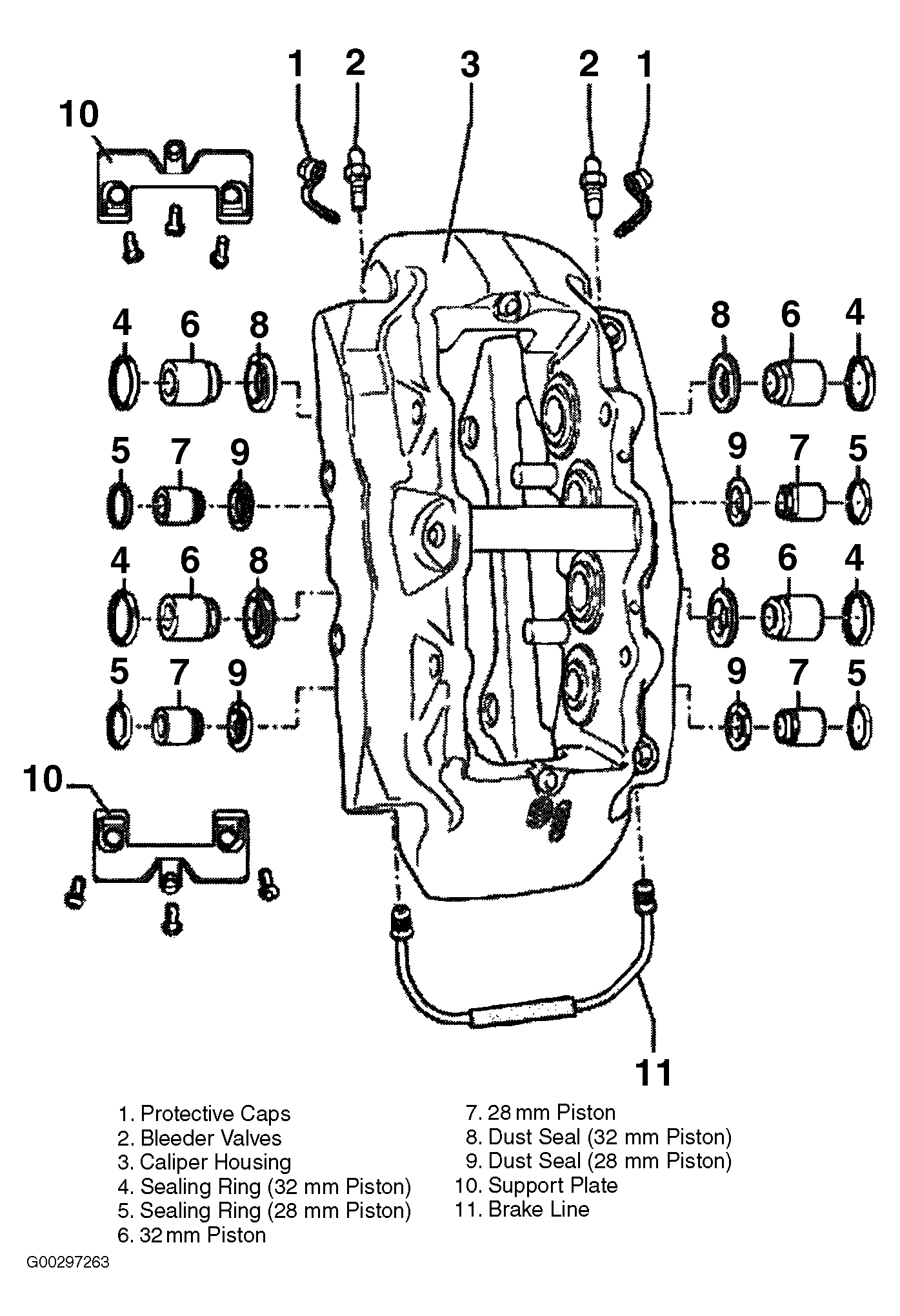

Fig 1: Exploded View Of Front Caliper Assembly (Brembo)

Courtesy of AUDI OF AMERICA, INC.
