Pedal Bracket With Internal Thread For Brake Light Switch

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

With brake pedal released, measure distance "A". See Fig 1. If distance is not .004-.020" (.1-.5 mm), loosen lock nut and adjust as necessary.

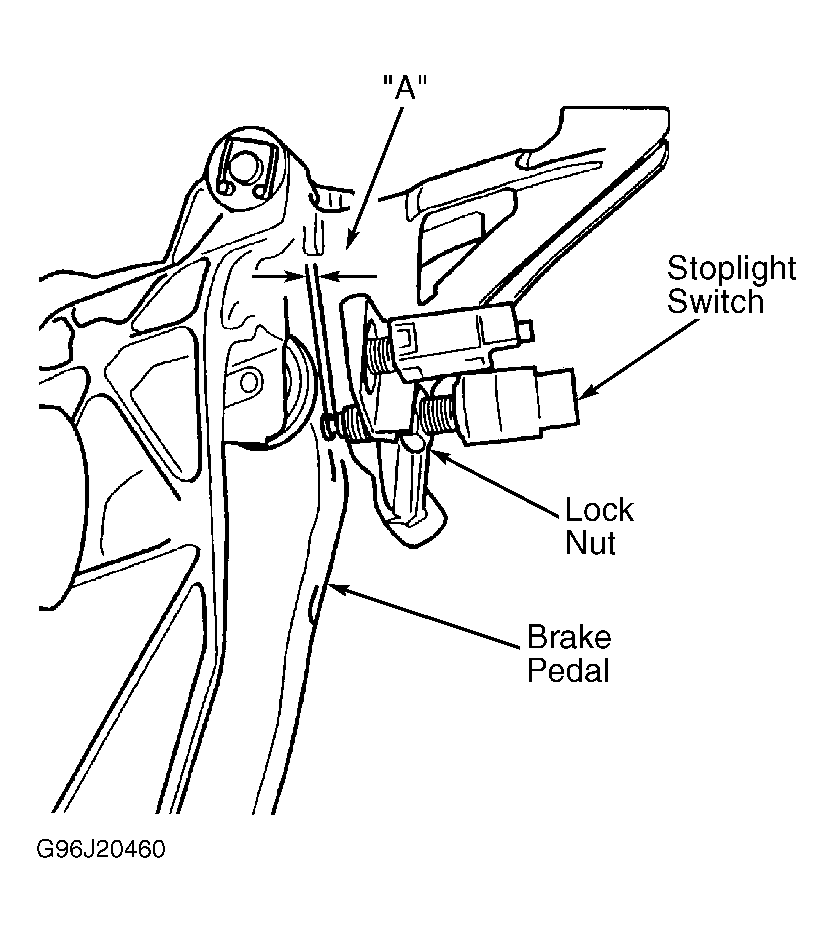

Fig 1: Adjusting Brakelight Switch (Pedal Bracket With Internal Thread)

Courtesy of AUDI OF AMERICA, INC.
