Differential, Removing & Installing: Notes

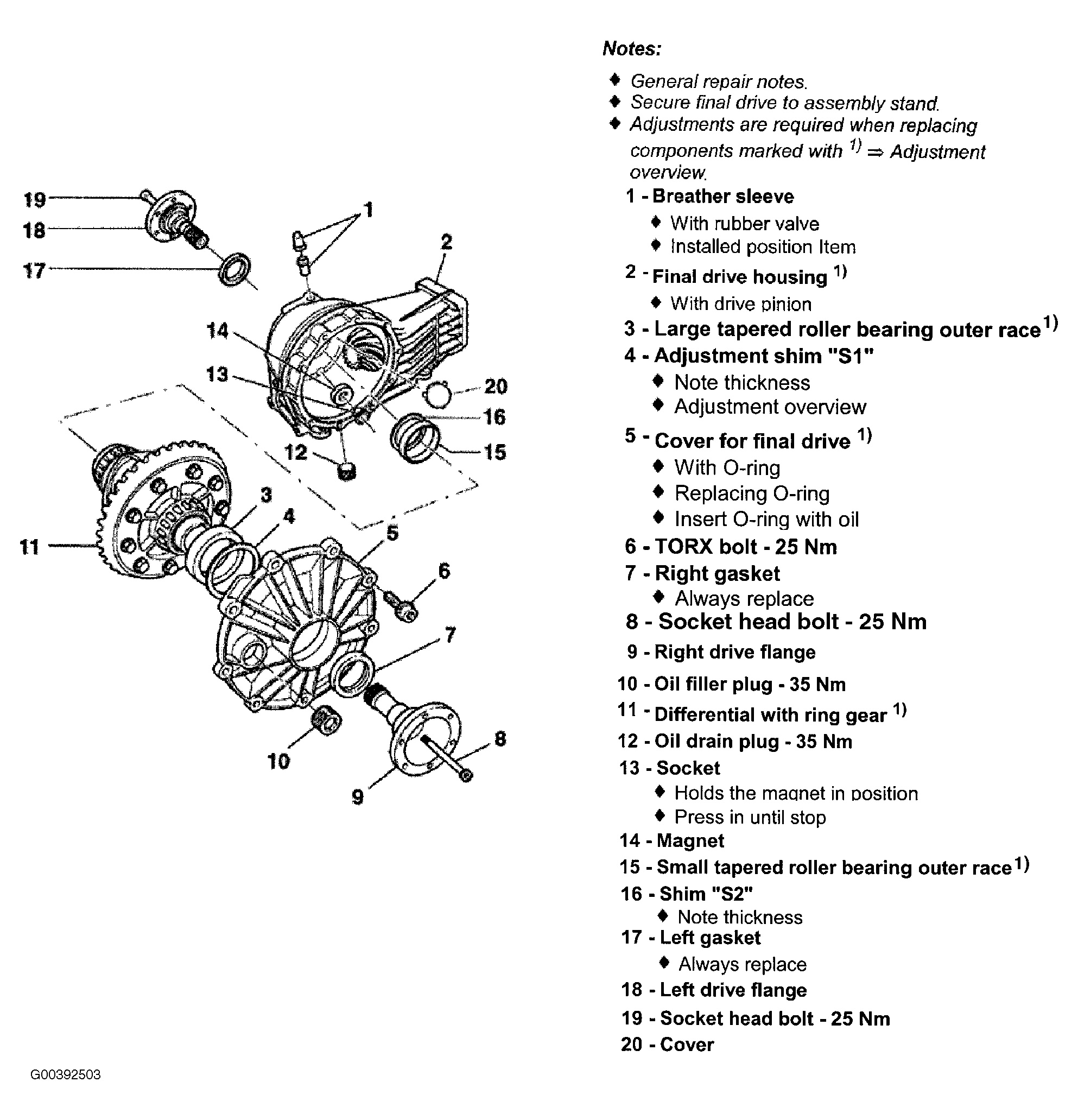

Fig 1: Exploded View Of Differential Components
G00392503Courtesy of AUDI OF AMERICA, INC.
