Disassembling & Assembling: Notes

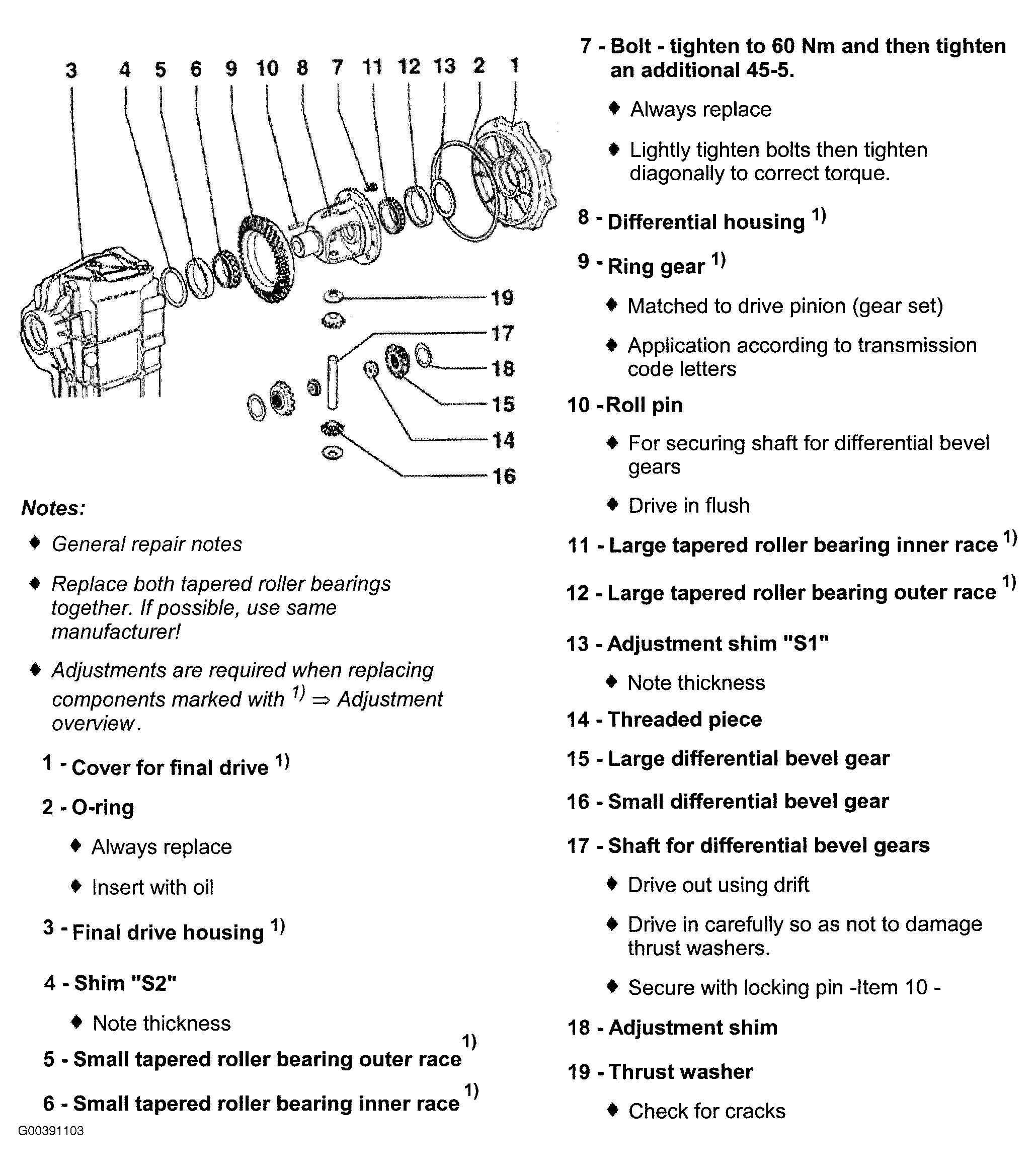

Fig 1: Exploded View Of Differential Assembly

G00391103

Courtesy of AUDI OF AMERICA, INC.
