Component Locations

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

To locate engine performance related components, use following illustrations.

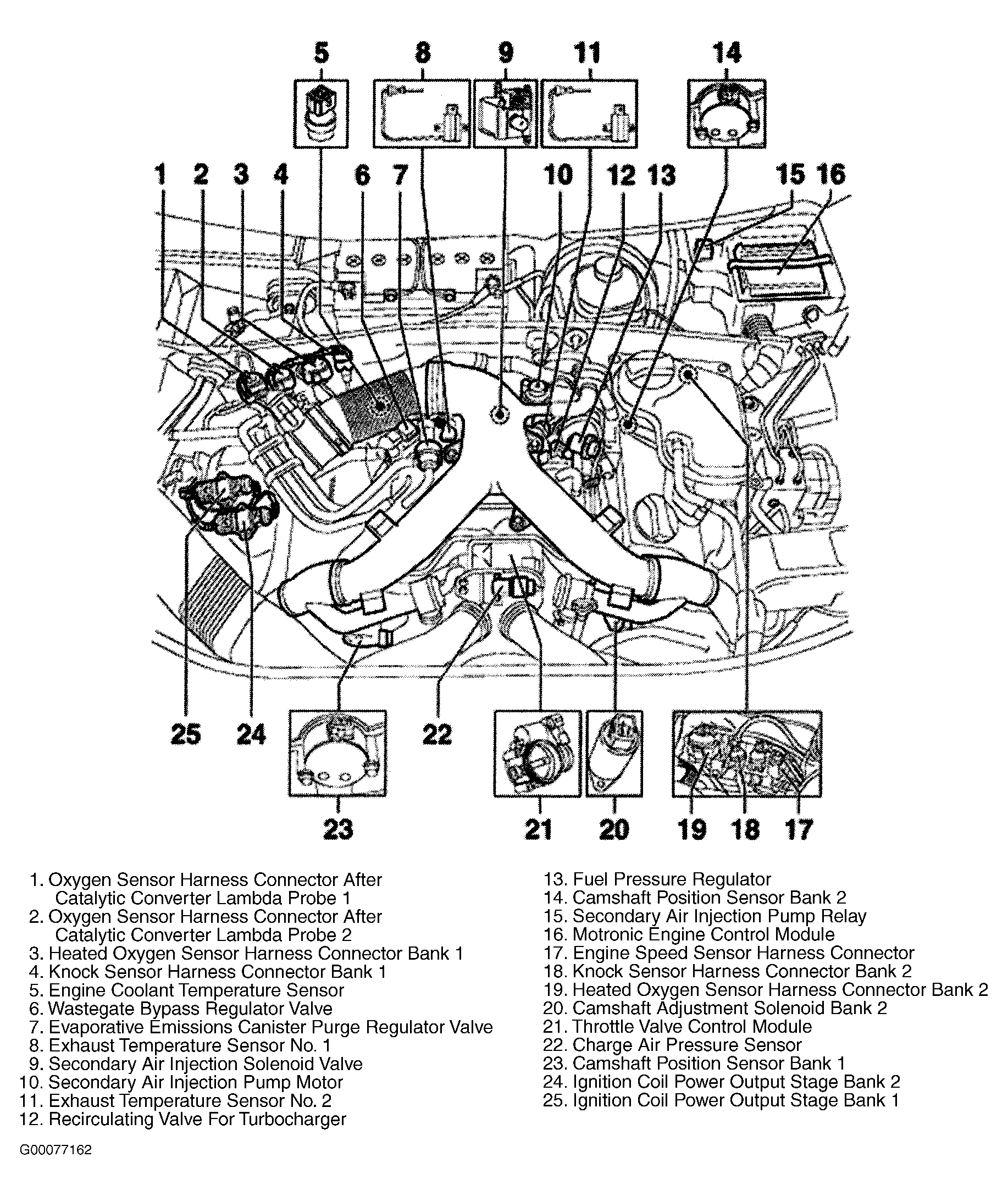

Fig 1: Identifying Engine Performance Related Components (2.7 L - 1 Of 2)
G00077162Courtesy of AUDI OF AMERICA, INC.

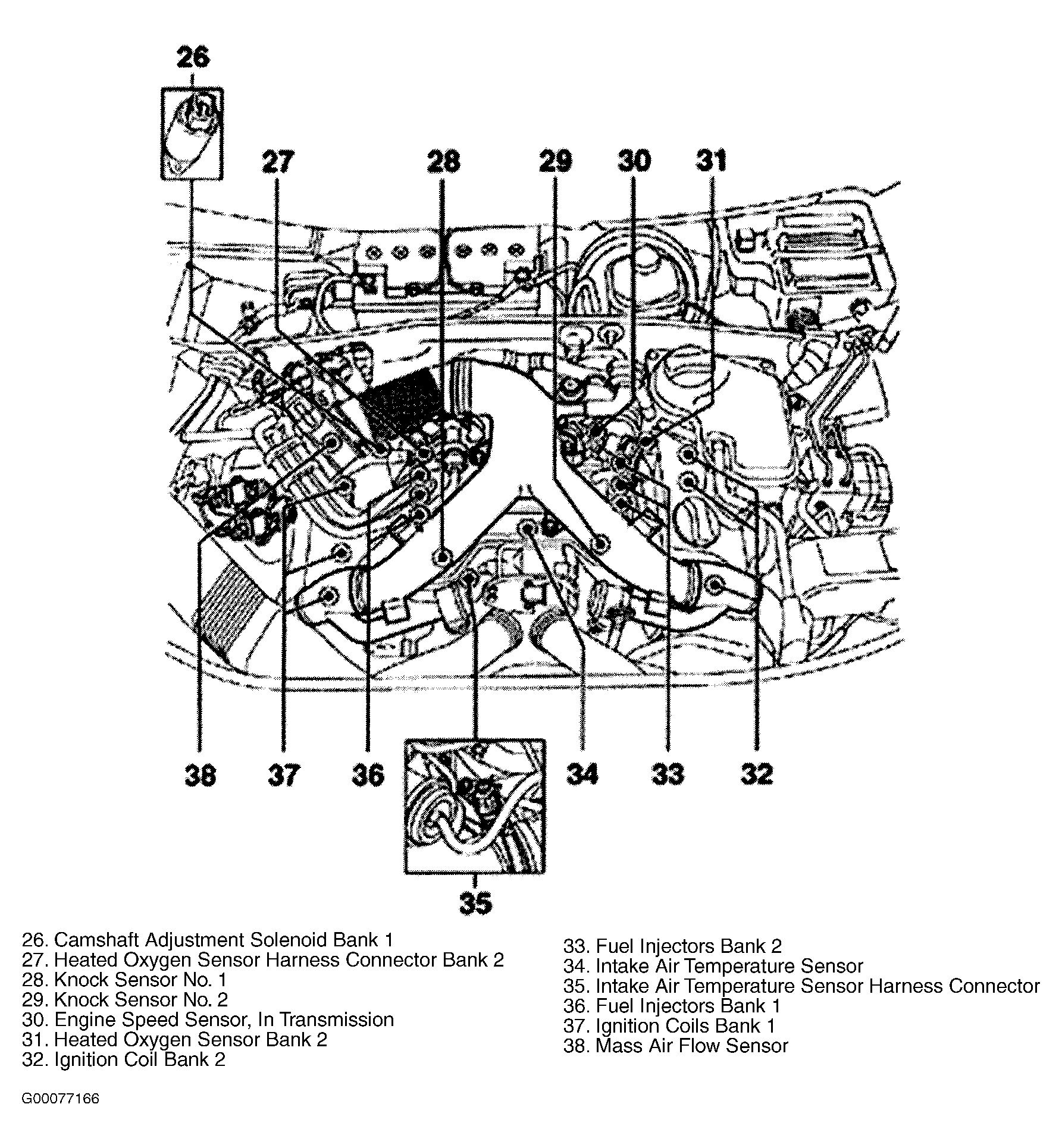

Fig 2: Identifying Engine Performance Related Components (2.7L - 2 Of 2)
G00077166Courtesy of AUDI OF AMERICA, INC.

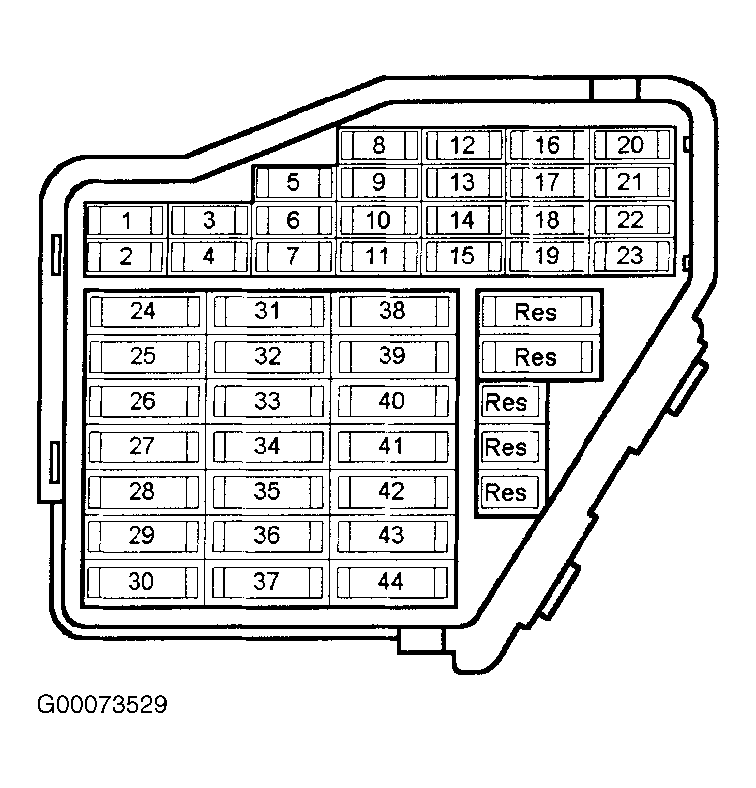

Fig 3: Identifying Fuses In Fuse Box (S4)
G00073529Courtesy of AUDI OF AMERICA, INC.
