Hydraulic Unit: Installation

To install, reverse removal procedure. Ensure correct version hydraulic unit is installed. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Bleed entire brake system. See BLEEDING BRAKE SYSTEM .

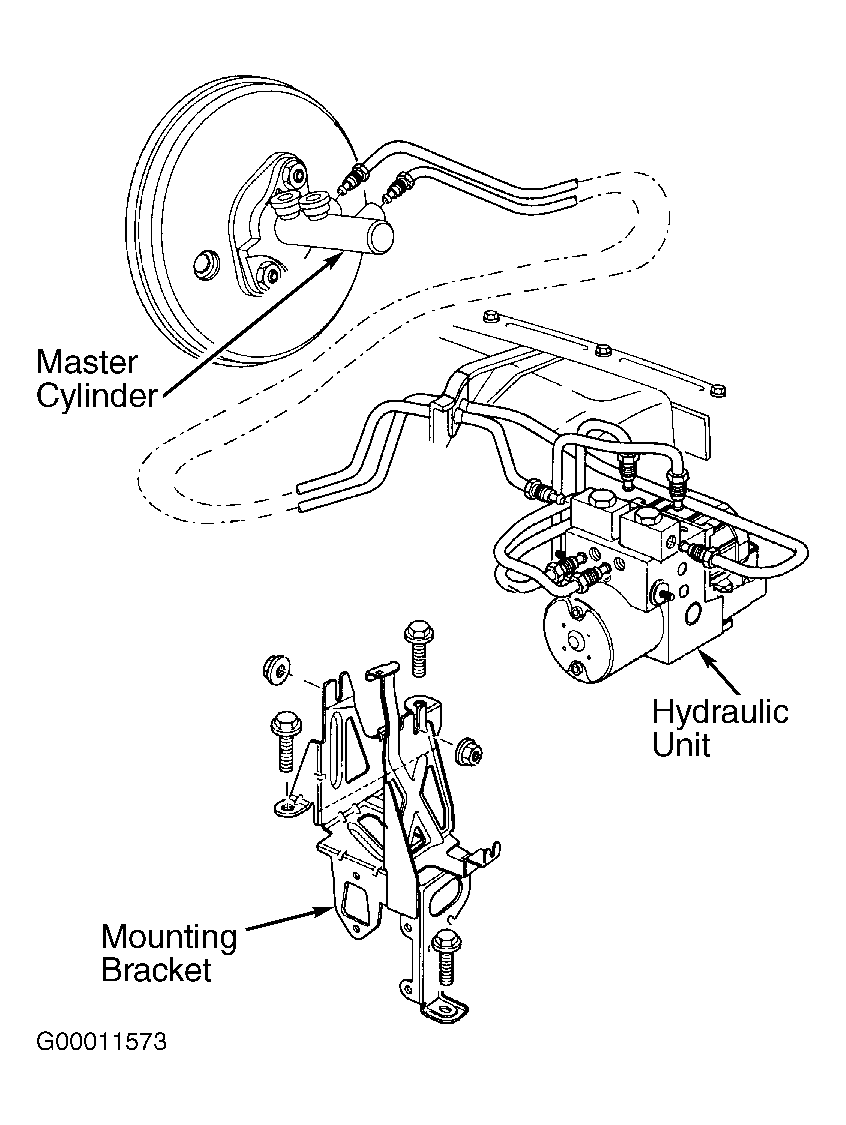

Fig 1: Removing & Installing Hydraulic Unit

Courtesy of AUDI OF AMERICA, INC.
