Evaluation PID 01: System status -information (right 8-digit number block:)

If a "1" is displayed instead of a "0" in the 8 -digit number block:

• Generate readiness code. See READINESS CODE, GENERATING  .

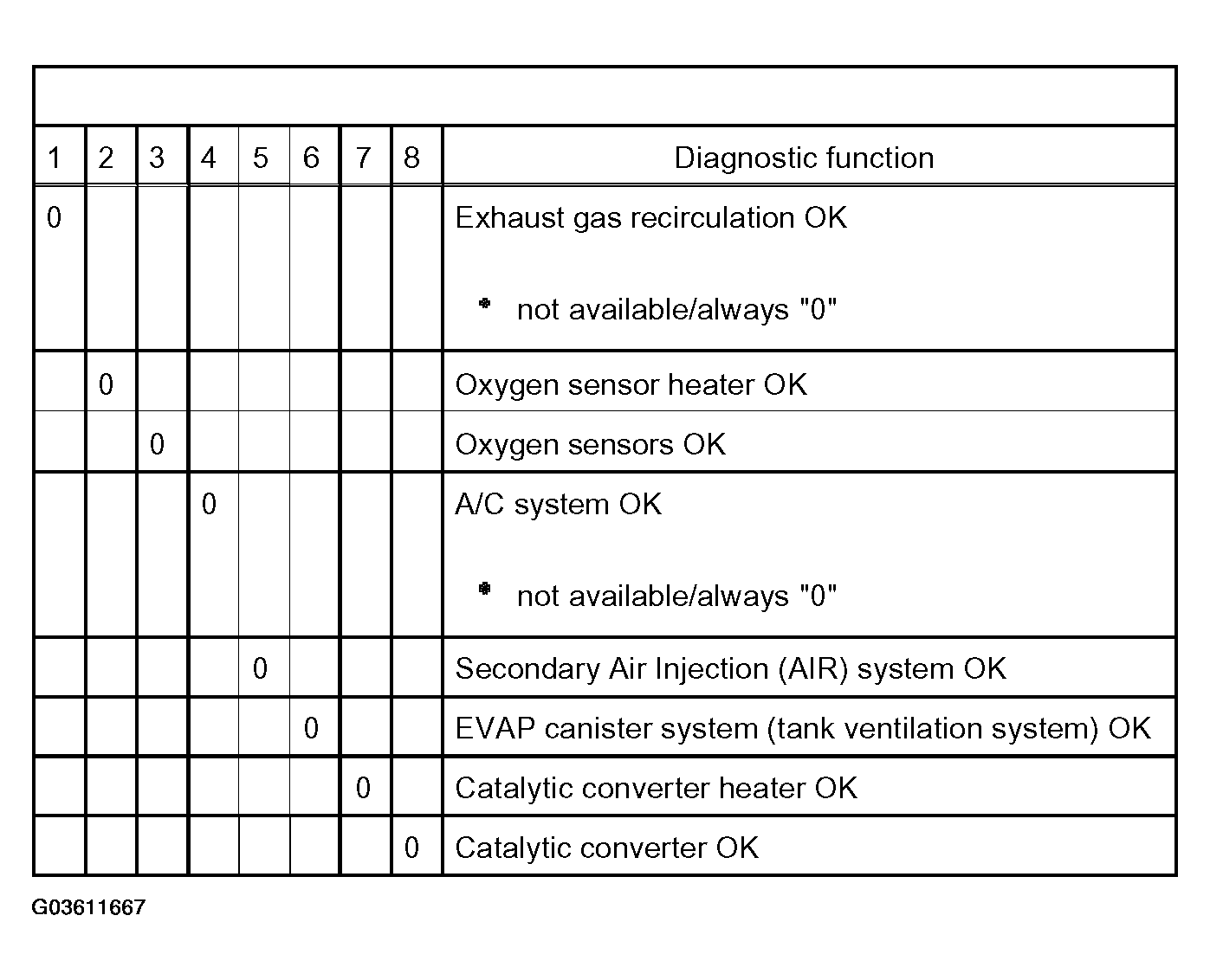

Fig 1: 8-Digit Number Block Description Table (Readiness Code)

Courtesy of AUDI OF AMERICA, INC.
