Torque Converter, Checking

Examine hub -arrow- of torque converter for traces of wear. See Fig 1.

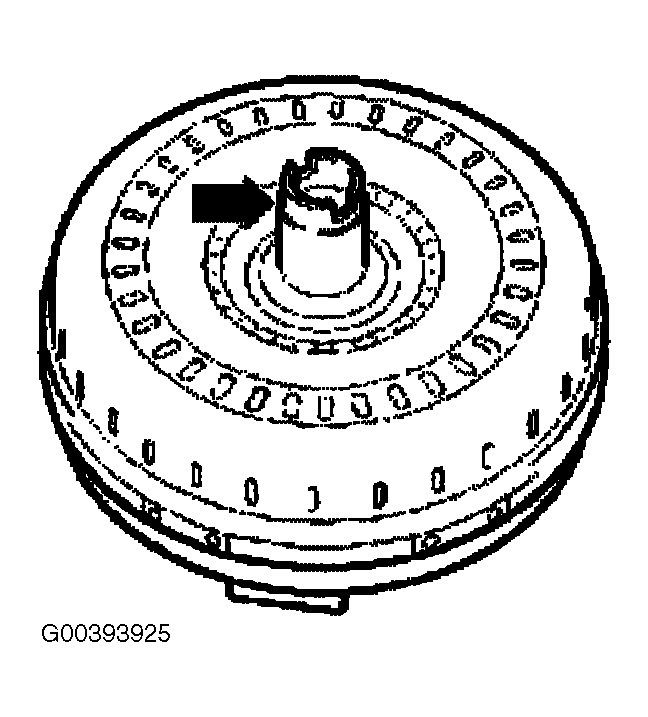

Fig 1: Inspecting Torque Converter Hub
G00393925Courtesy of AUDI OF AMERICA, INC.
NOTE: The torque converter is welded and must be replaced complete if damaged or faulty.
