Solenoids/Solenoid Valves

SOLENOIDS/SOLENOID VALVES

Component Component Location

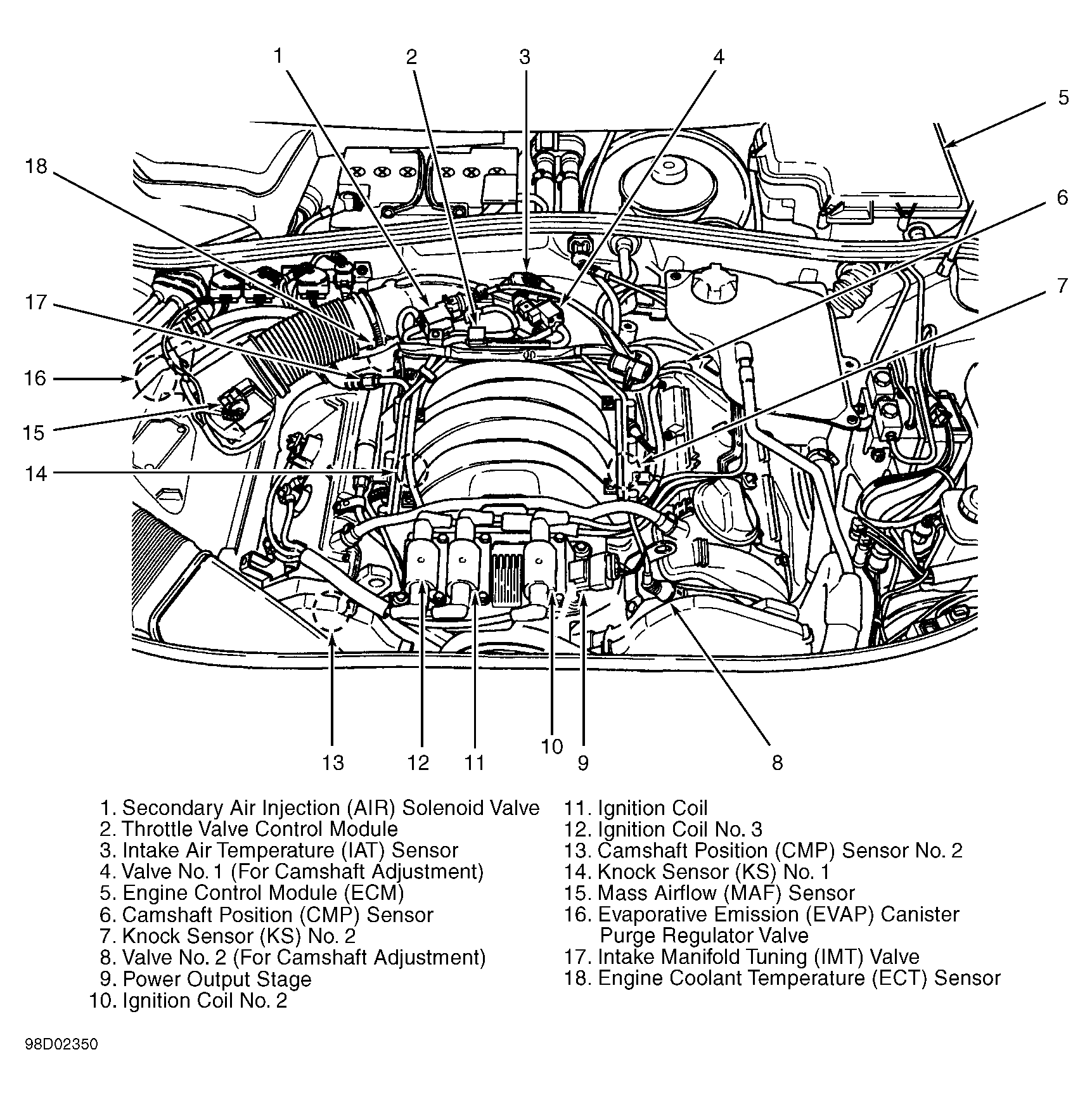

Evaporative Emission (EVAP) Canister Purge Regulator Valve Right side of engine compartment. See Figure.
Intake Manifold Tuning (IMT) Valve At back of intake manifold. See Figure.
Secondary Air Injection (AIR) Solenoid Valve At back of intake manifold. See Figure.

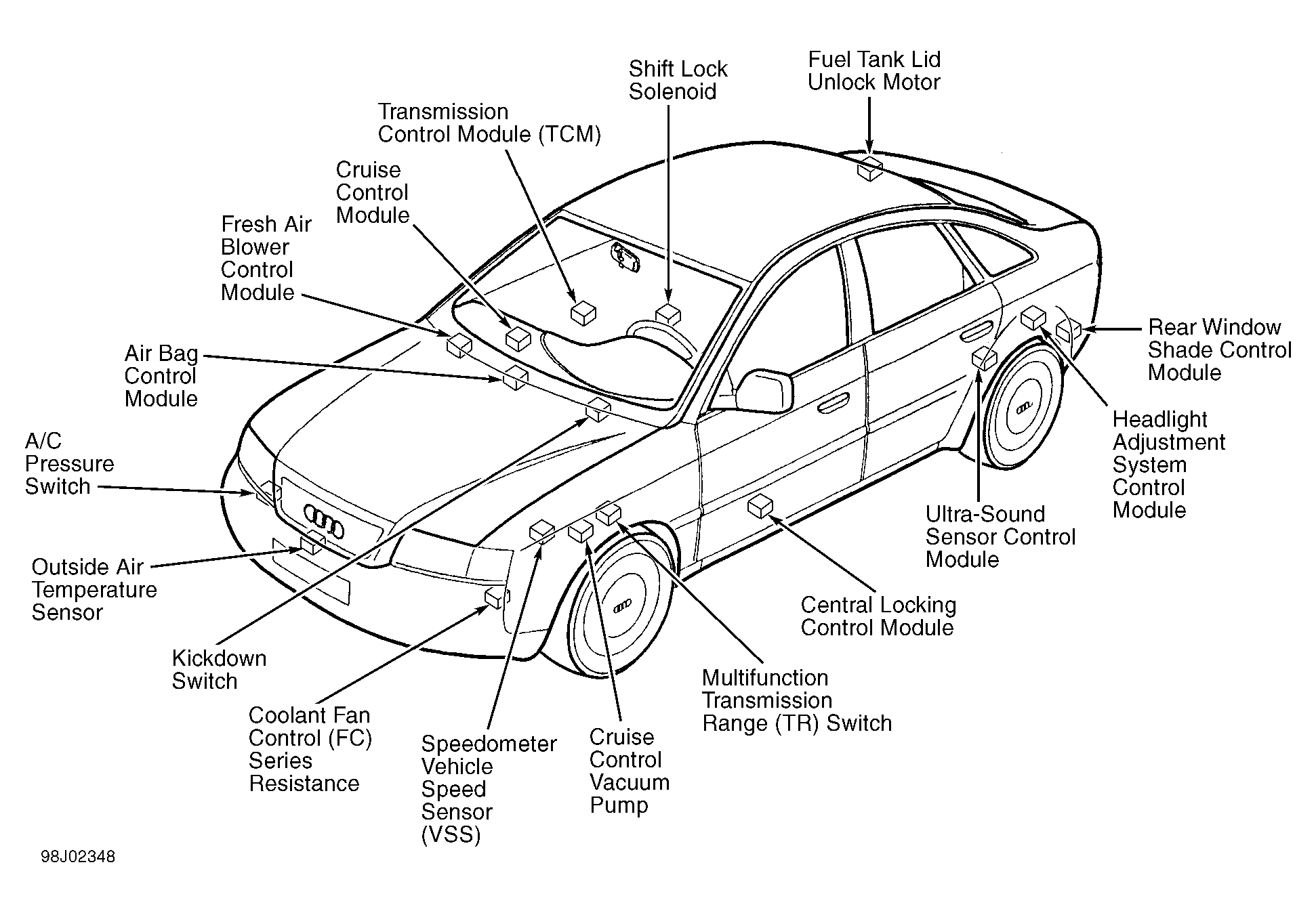

Shift Lock Solenoid Under center console, part of gear selector mechanism. See Figure.
Valve No. 1 (For Camshaft Adjustment) On back of right cylinder head. See Figure.
Valve No. 2 (For Camshaft Adjustment) On front of left cylinder head. See Figure.
