Brake System Identification

A6, Allroad, RS6 and S6 models are equipped with one of several brake systems. Brake caliper application is designated by the Production Code (Pr. No.). Pr. No. is printed on vehicle data sticker located in spare tire well or in owners customer's service schedule. See Fig 1. For brake caliper Pr. Nos., see PRODUCTION CODES  table. To identify brake system and components, see Fig 2-Fig 7 .

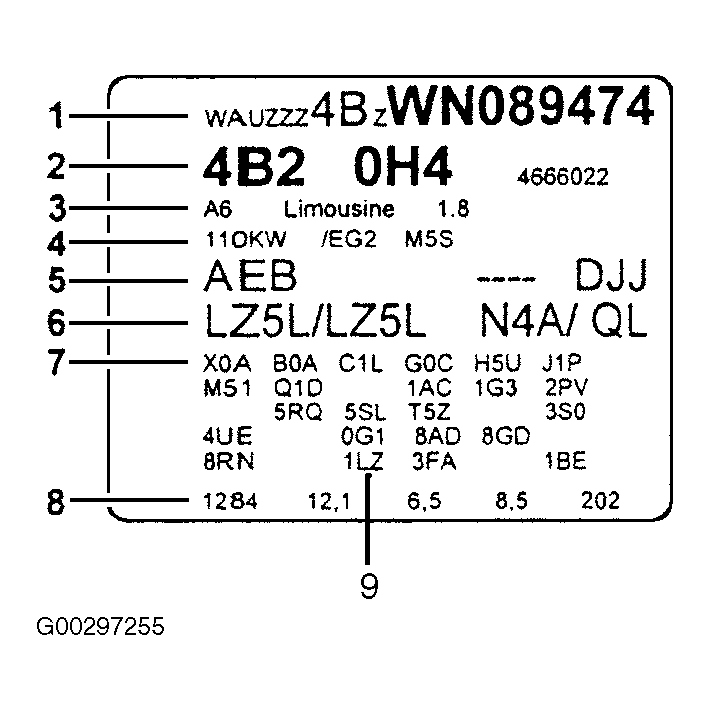

Fig 1: Identifying Vehicle Data Label

Courtesy of AUDI OF AMERICA, INC.

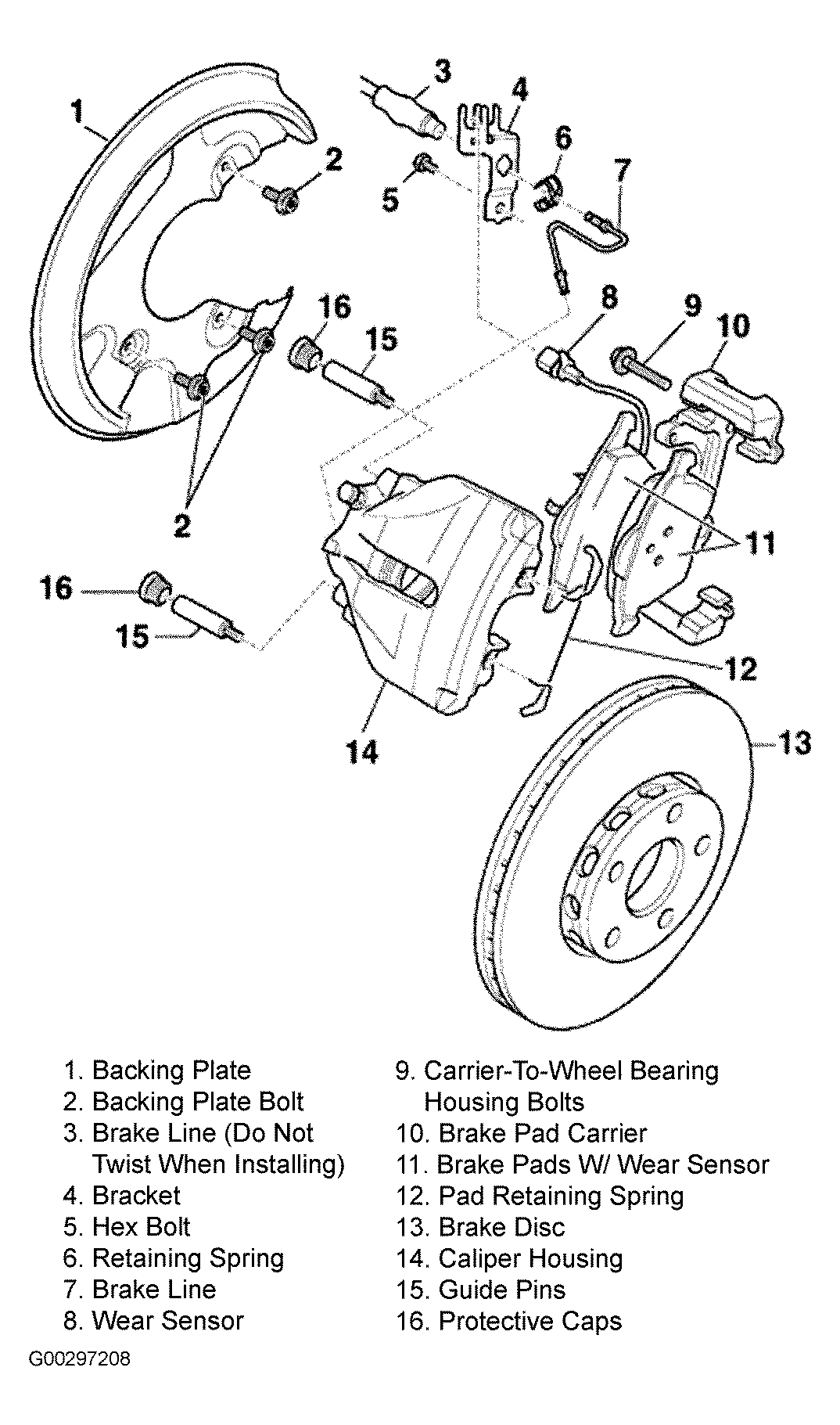

Fig 2: Exploded View Of Brake Components (FN3)

Courtesy of AUDI OF AMERICA, INC.

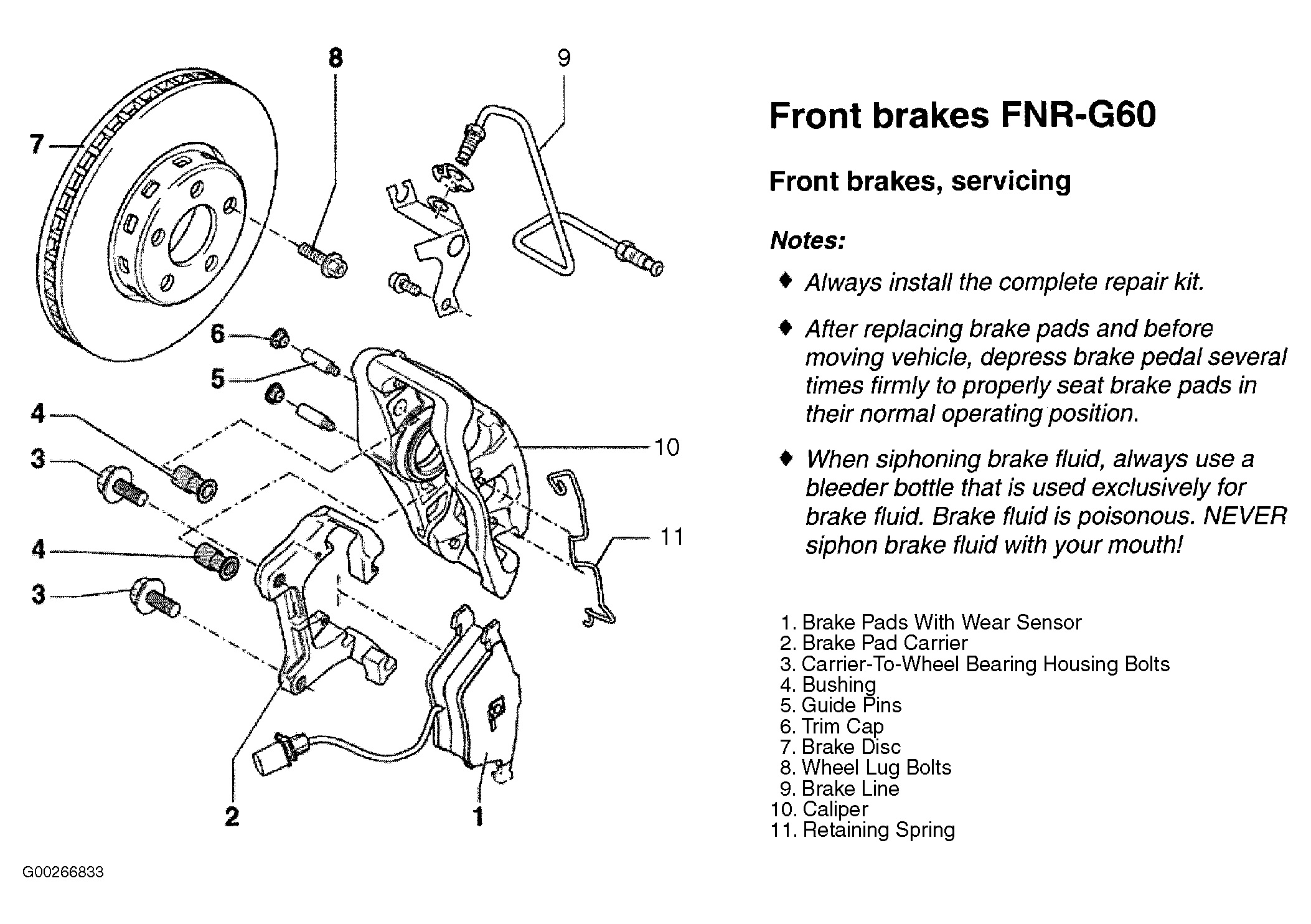

Fig 3: Exploded View Of Brake Components (FNR-G60)

Courtesy of AUDI OF AMERICA, INC.

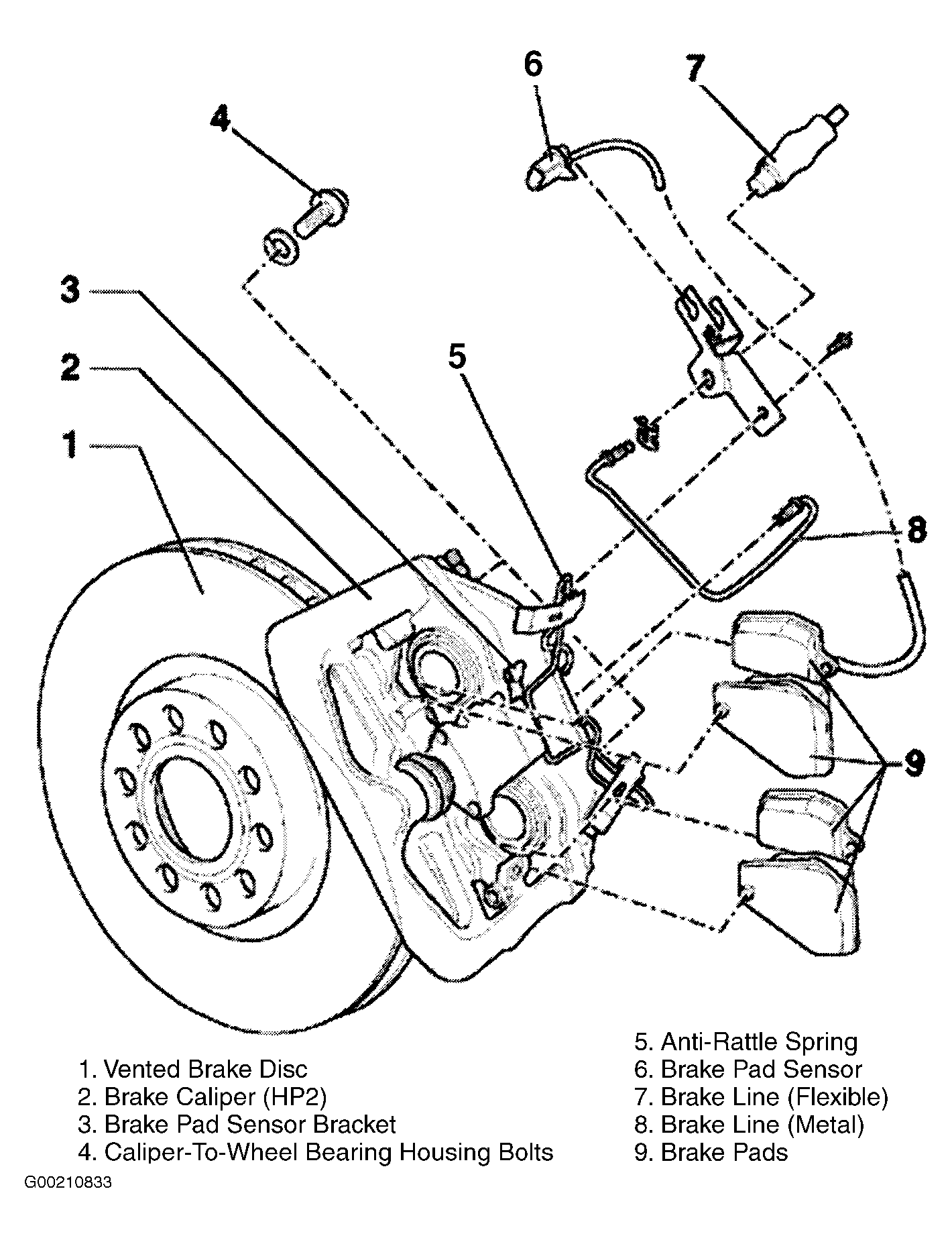

Fig 4: Exploded View Of Brake Components (HP2 - Aluminum)

Courtesy of AUDI OF AMERICA, INC.

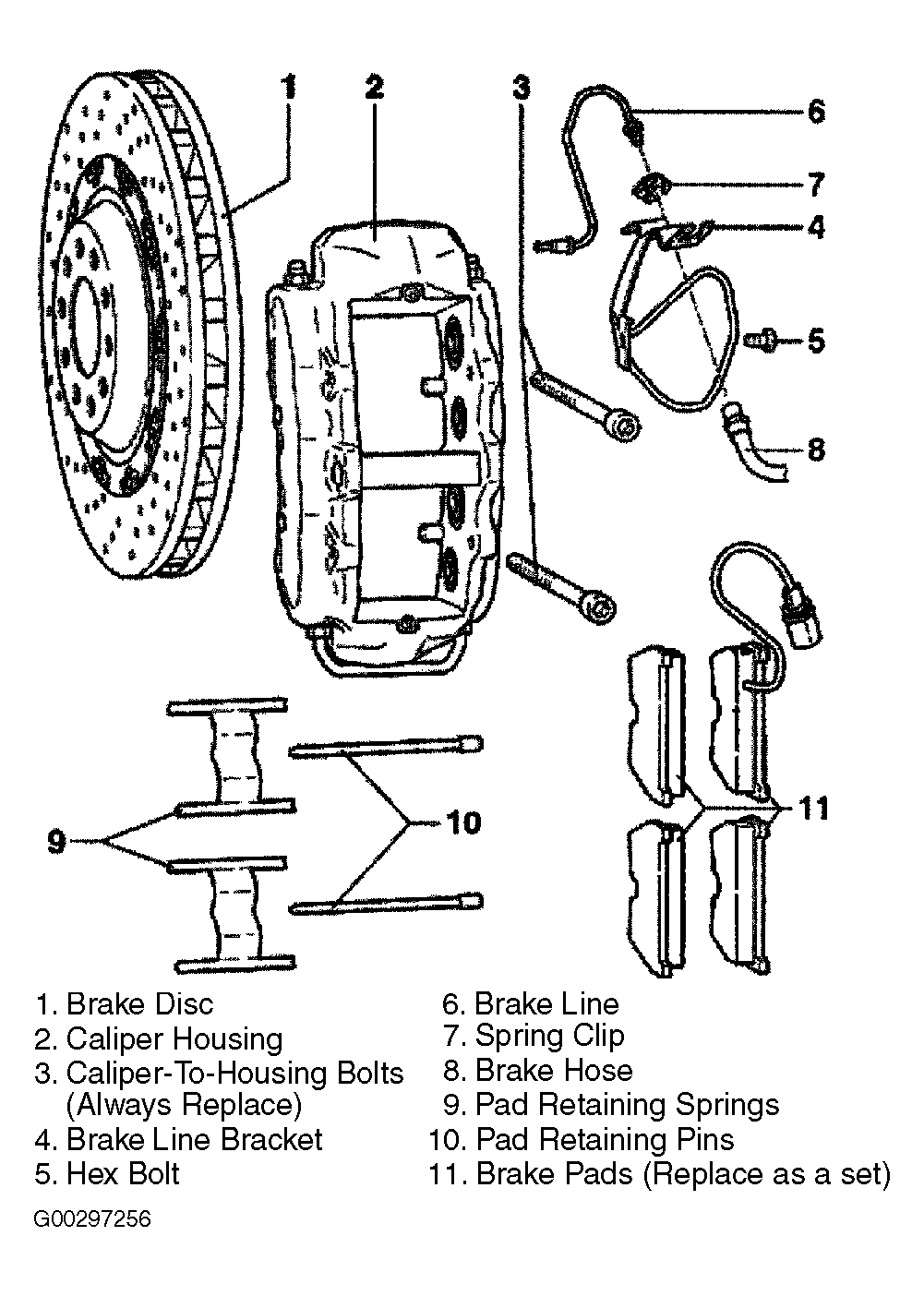

Fig 5: Exploded View Of Brake Components (Brembo)

Courtesy of AUDI OF AMERICA, INC.

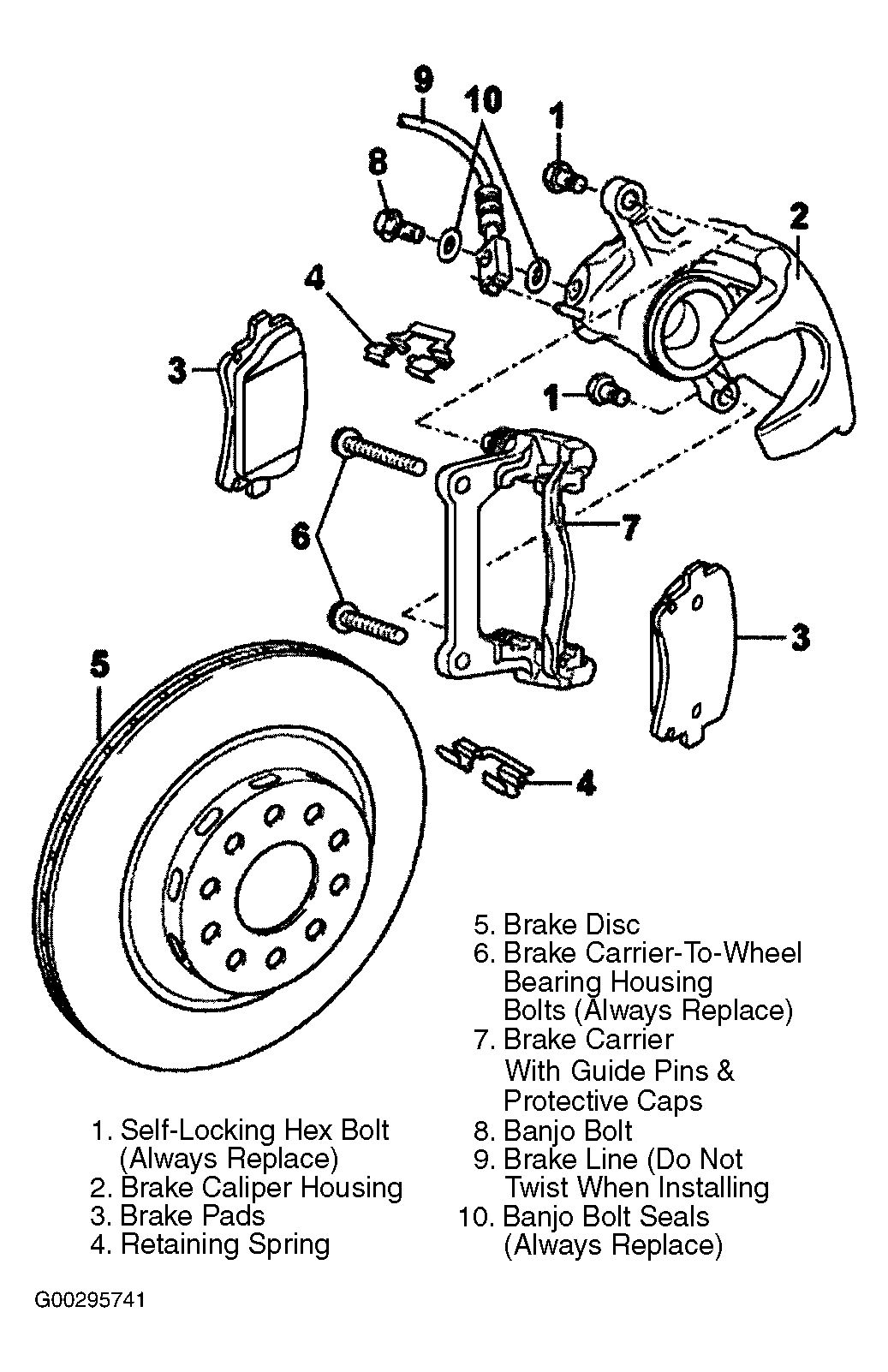

Fig 6: Exploded View Of Rear Brake Components (C38)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

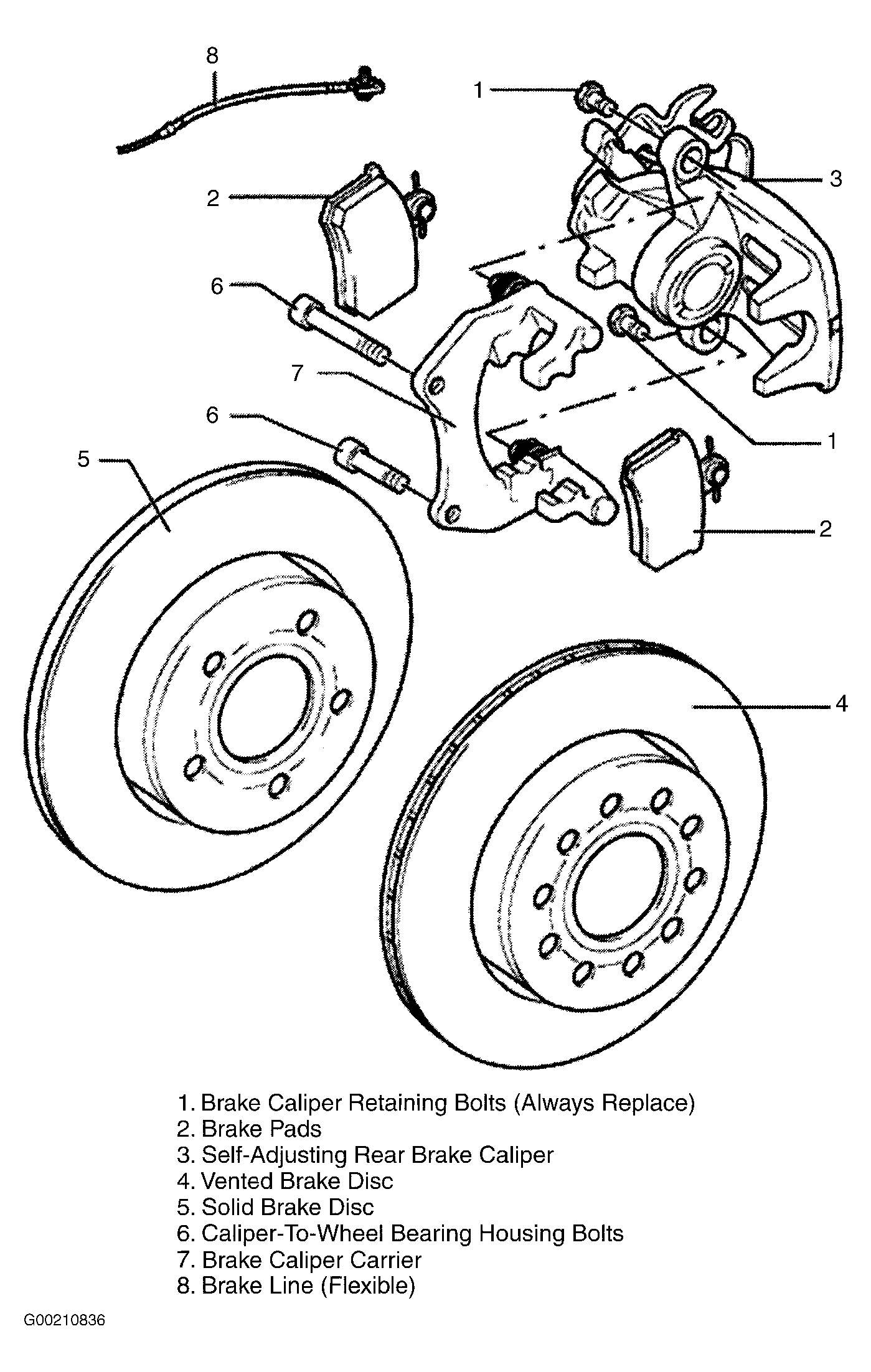

Fig 7: Exploded View Of Rear Brake Components (C43)

Courtesy of AUDI OF AMERICA, INC.
