Test requirement
- Engine not running, ignition switched on.

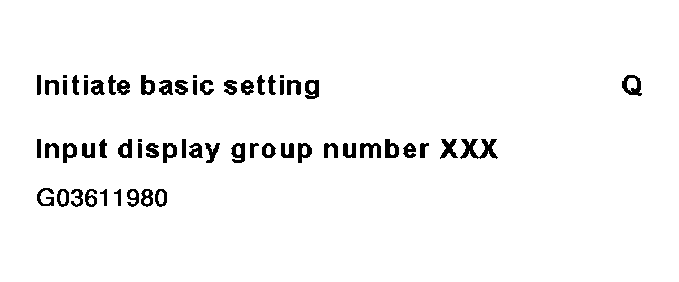

When indicated on display:
- Press buttons -0-, -6- and -3- to select "display group number 063" and press -Q- button to confirm input.

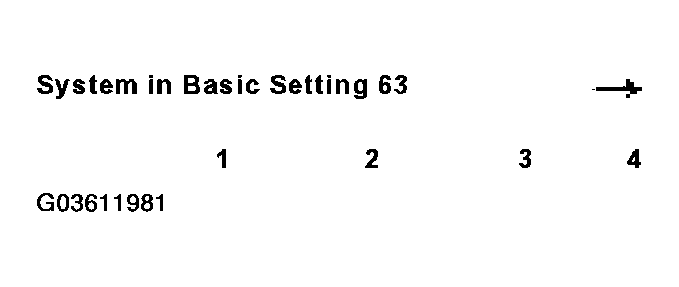

When indicated on display:
NOTE:
There will be a prompt: "Activate kick-down"
- Depress accelerator pedal completely, past kick down point, and hold down.
NOTE:
During adaptation of the kick down point, the VAG1551 will display "Kick down ADP in progress". After successful adaptation of the kick down point, the VAG1551 will display "Kick down ADP OK".
- Check specified value in display field 4.
DISPLAY GROUP 063: KICK DOWN FUNCTION, ADAPTING
| Display fields | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 063: Kick down function, adapting | ||||
| Display | xx% | xx% | Kick down | - |
| Indicated | Sensor 1 for Pedal position |
Sensor 2 for Pedal position |
Kick down | Adaptation condition |
| Functional range | 0 to 100% | 0 to 50% | Kick down | operate ADP in progress ADP OK ADP ERROR |
| Specified value | 12 to 97% | 4 to 49% | Kick down | ADP OK |
| Notes | If "ADP ERROR." is displayed: Check DTC memory . See CHECK DTC MEMORY (FUNCTION 02) AND ERASE DTC MEMORY (FUNCTION 05) . | |||
Note for display field 4:
"ERROR" can be indicated, for example, if the accelerator pedal is not immediately pressed in response to a request by the tester or if the accelerator pedal is released while adaptation is running despite the fact that adaptation is not yet complete .
In both cases, "Basic Setting" must be exited and the adaptation must be performed again .
If specified value "ADP OK" is obtained:
- Press -C- button.
