Initiating instrument cluster coding

Indicated on display

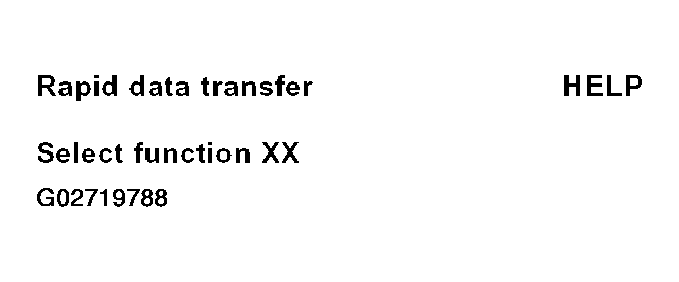

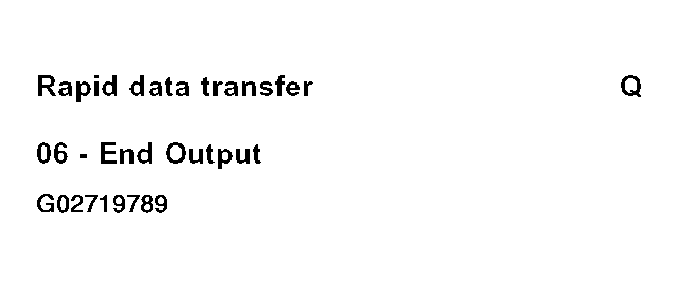

Fig 1: VAG 1551 Scan Tool Display - Code Control Module, Instrument Cluster (1 Of 5)

Input code number as per instrument cluster code table. See READ MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08) .

Example: 02262

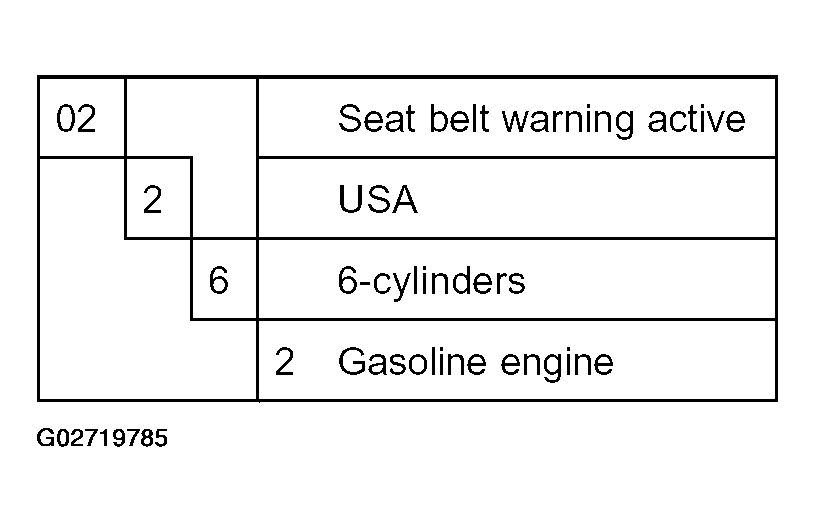

Fig 2: Instrument Cluster Input Code Number Table - Except Instrument Cluster With Maintenance Interval Extension

Indicated on display

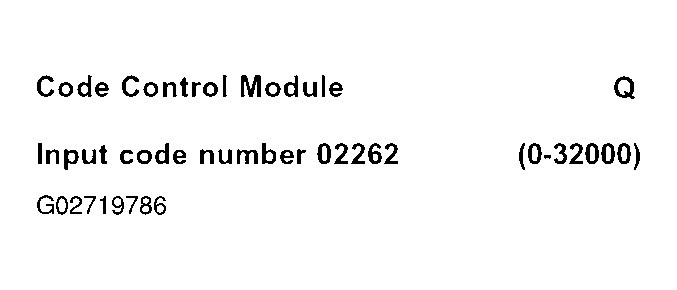

Fig 3: VAG 1551 Scan Tool Display - Code Control Module, Instrument Cluster (2 Of 5)

Indicated on display

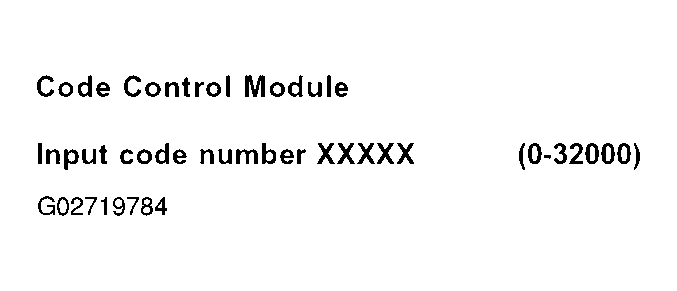

Fig 4: VAG 1551 Scan Tool Display - Code Control Module, Instrument Cluster (3 Of 5)

Indicated on display

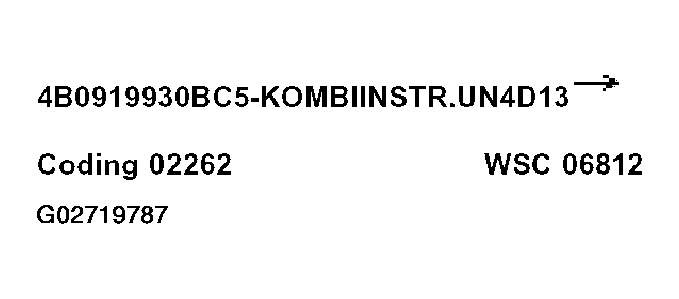

Fig 5: VAG 1551 Scan Tool Display - Code Control Module, Instrument Cluster (4 Of 5)

Indicated on display

Fig 6: VAG 1551 Scan Tool Display - Code Control Module, Instrument Cluster (5 Of 5)
