Read Measuring Value Block (function 08)
>>
Display group 001
Display group 001
NOTE:
Corresponding texts or data appearing in the following Read Measuring Value Blocks are examples only and may differ slightly from those appearing in the scan tool!

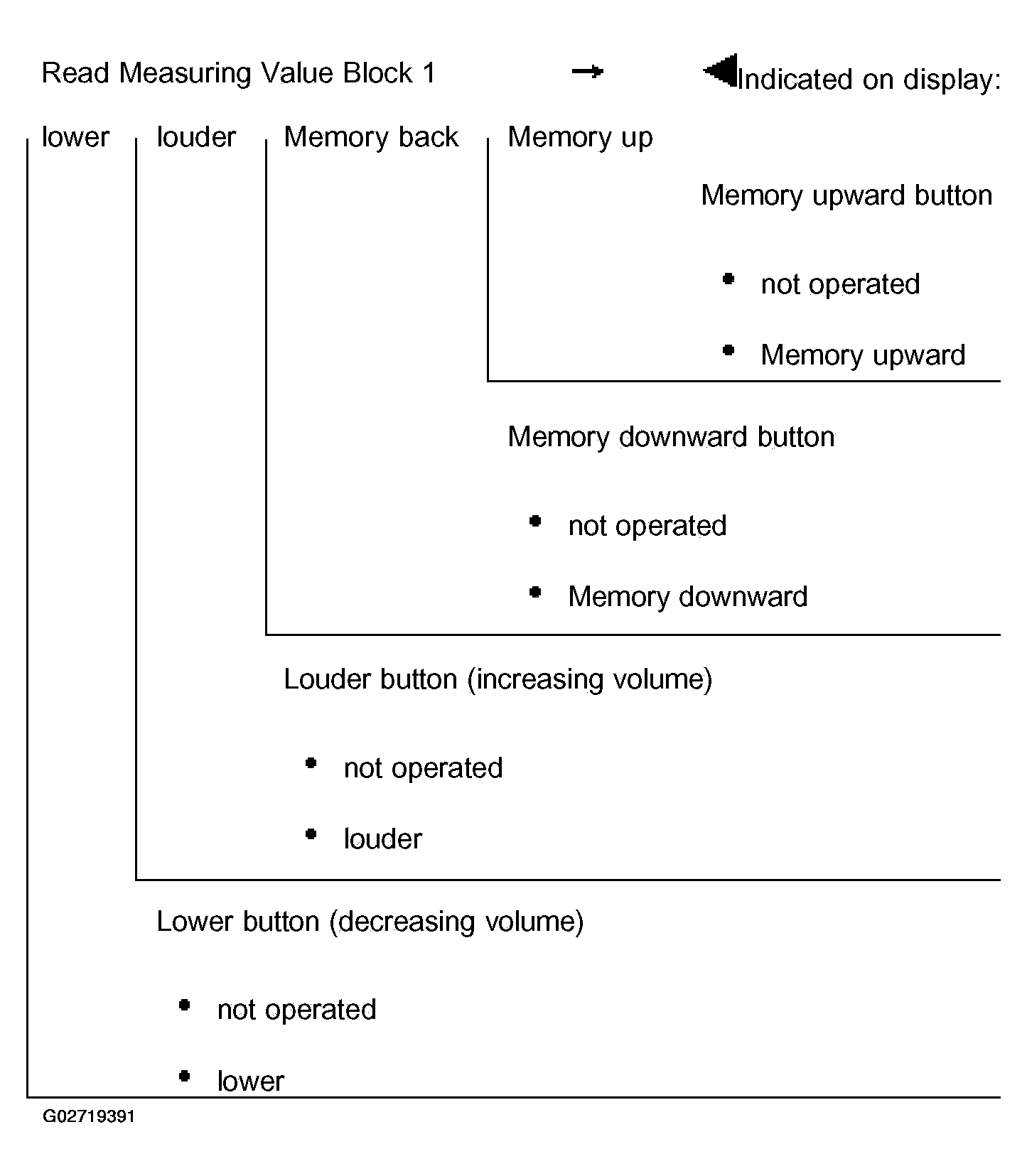

Fig 1: Display Group 001 - Multi-Function Steering Wheel
Courtesy of AUDI OF AMERICA, INC.
