Output DTM, initiating

Switch on ignition
Switch off radio and navigation system, telephone not in use.
Press buttons -0- and -3- to select "output Diagnostic Test Mode (DTM)", function 3.

Indicated on display

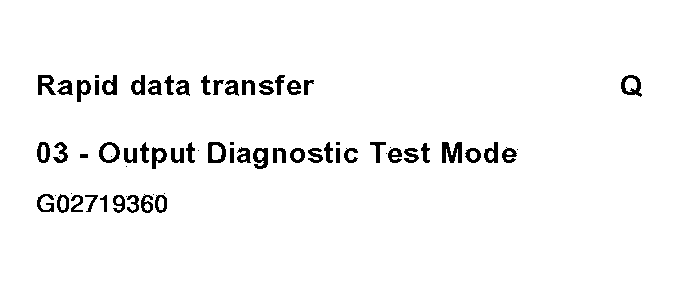

Fig 1: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (1 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

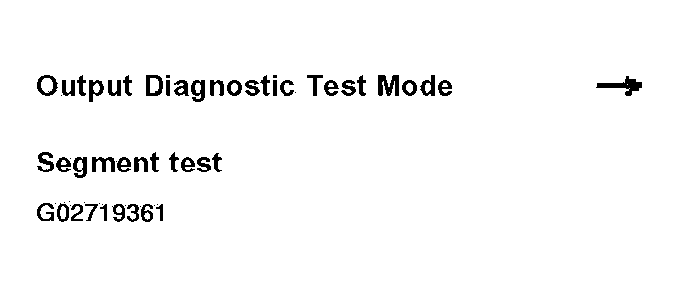

Fig 2: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (2 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

Fig 3: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (3 Of 10)

Courtesy of AUDI OF AMERICA, INC.

The radio volume is increased audibly.

Indicated on display

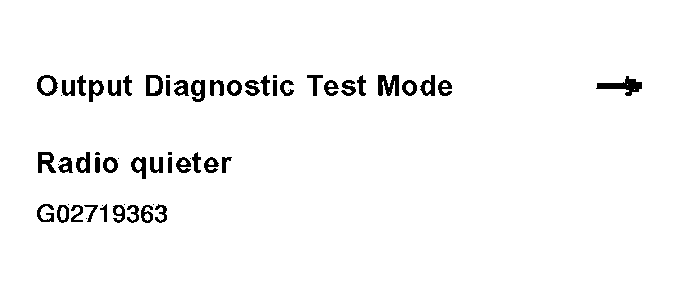

Fig 4: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (4 Of 10)

Courtesy of AUDI OF AMERICA, INC.

The radio volume is decreased audibly.

Indicated on display

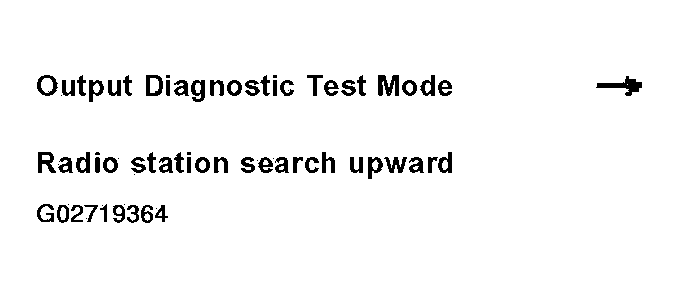

Fig 5: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (5 Of 10)

Courtesy of AUDI OF AMERICA, INC.

The next station will be searched and displayed in combination center display.

Indicated on display

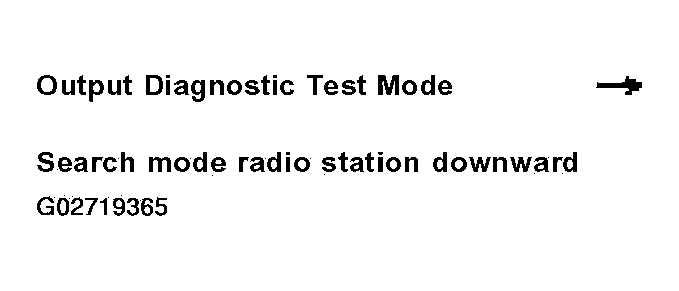

Fig 6: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (6 Of 10)

Courtesy of AUDI OF AMERICA, INC.

The previous station will be adjusted again and will be displayed in combination center display.

Indicated on display

Fig 7: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (7 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Station buttons will be switched through in forward motion.

Indicated on display

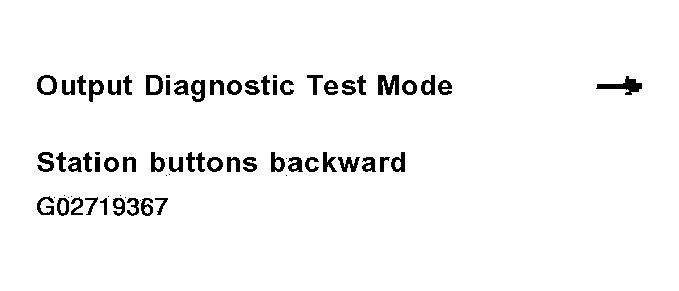

Fig 8: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (8 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Station buttons will be switched through in backward motion.

Indicated on display

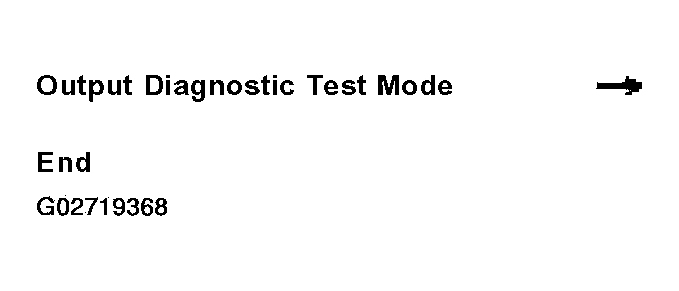

Fig 9: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (9 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

Fig 10: VAG1551 Scan Tool Display - Output Diagnostic Test Mode - Multi-Function Steering Wheel (10 Of 10)

Courtesy of AUDI OF AMERICA, INC.
