Central Locking System Function Options (GROUP 01, NO. 98-09)

Publication date: 1998-12-08
Reference number: GROUP 01, NO. 98-09

CENTRAL LOCKING SYSTEM FUNCTION OPTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 98-09, Date of Issue: December 8, 1998

CENTRAL LOCKING SYSTEM, FUNCTION OPTIONS

Model(s): 1997-on Audi A8

Group: 01 - On-Board Diagnostic

Bulletin No.: 98-09

Date: December 8, 1998

CONDITION

Customer requests that specific remote/central locking functions can be "activated".

SERVICE

Review optional control module coding below with customer to confirm the desired function changes. Input codings into central locking control module using function 07, "Code control module".

NOTE: For models listed, the following information will be included in the Repair Manual at the next update.

OPTIONAL CONTROL MODULE CODING

In addition to basic coding, it is possible customers may request the following option:

Vehicle locks automatically upon reaching a speed of about 15 km/h (10 mph) and unlocks when key is removed from ignition.

CODING

Vehicle	Standard Coding	Optional Coding
A8 Up To 06/97 (with Delta radio)	12172	12204
A8 07/97-on (with Concert radio)	16140	16172

EXAMPLE OF CARRYING OUT "CODE CONTROL MODULE" FUNCTION 07

Connect VAG 1551/1552 to Data Link Connector (DLC) and advance to "Rapid data transfer".

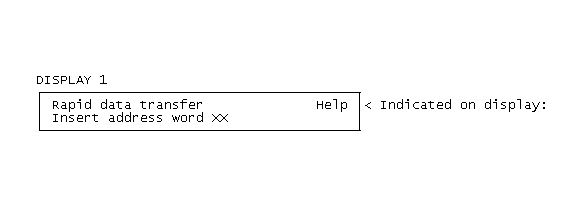

Fig 1: DISPLAY 1

Press buttons -3- and -5- to insert "Central Locking" address word 35.

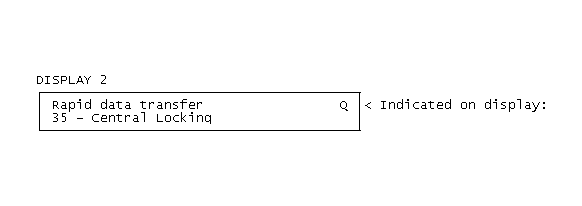

Fig 2: DISPLAY 2

Press -Q- button to confirm input.

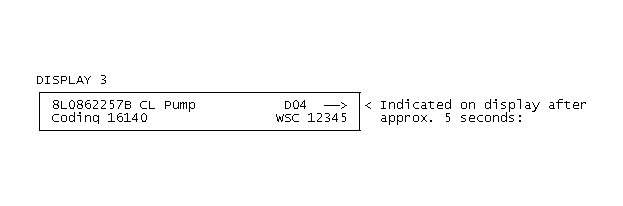

Fig 3: DISPLAY 3

Press --> button.

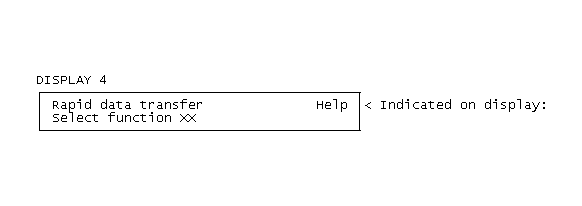

Fig 4: DISPLAY 4

Press buttons -0- and -7- to select "Code Control Module", function 07.

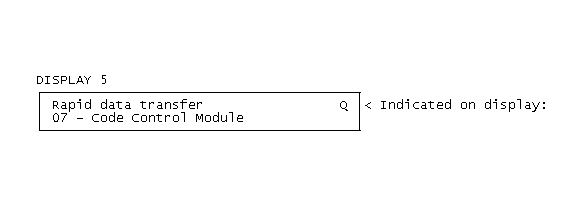

Fig 5: DISPLAY 5

Press -Q- button to confirm input.

Fig 6: DISPLAY 6

Enter control module coding using key pad as indicated by CODING TABLE above.

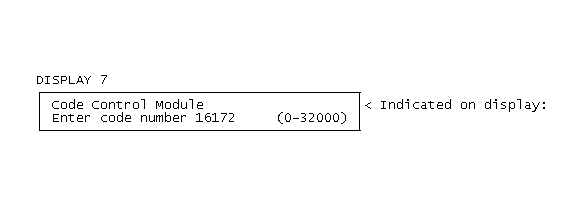

Fig 7: DISPLAY 7

Press -Q- button to confirm input.

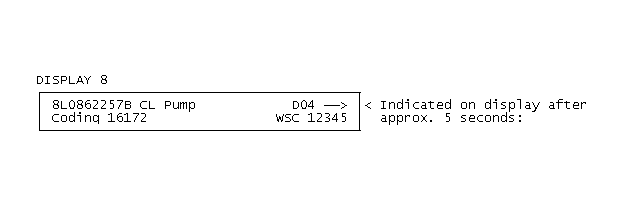

Fig 8: DISPLAY 8

Display shows control module identification and coding that has been entered (16172).

Press --> button.

Fig 9: DISPLAY 9

Press buttons -0- and -6- to select "End Output", function 06.

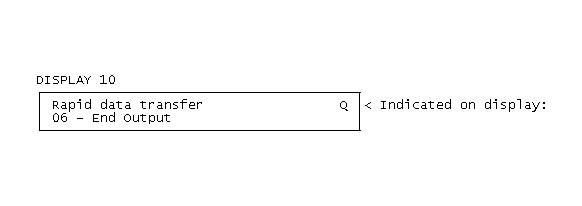

Fig 10: DISPLAY 10

Press -Q- button to confirm input.

Fig 11: DISPLAY 11

Disconnect VAG 1551/1552 from Data Link Connector (DLC).

WARRANTY INFORMATION

Re-coding of Central Locking Control Module is covered by warranty ONE TIME ONLY on each vehicle. Subsequent re-coding is not covered by warranty and may not be claimed as such.

When procedure applies to vehicles within the New Vehicle Limited Warranty, use the following:

LABOR OPERATION: 5700711 20TU

DAMAGE CODE: 5782660001
