Connecting VAG 1551 Scan Tool (ST)

Place selector lever in position "P" or "N" and engage parking brake.
With ignition off, connect VAG 1551 Scan Tool (ST) VAG 1551/3 adapter cable to Data Link Connector (DLC), located under driver's knee bar, to left of steering wheel.

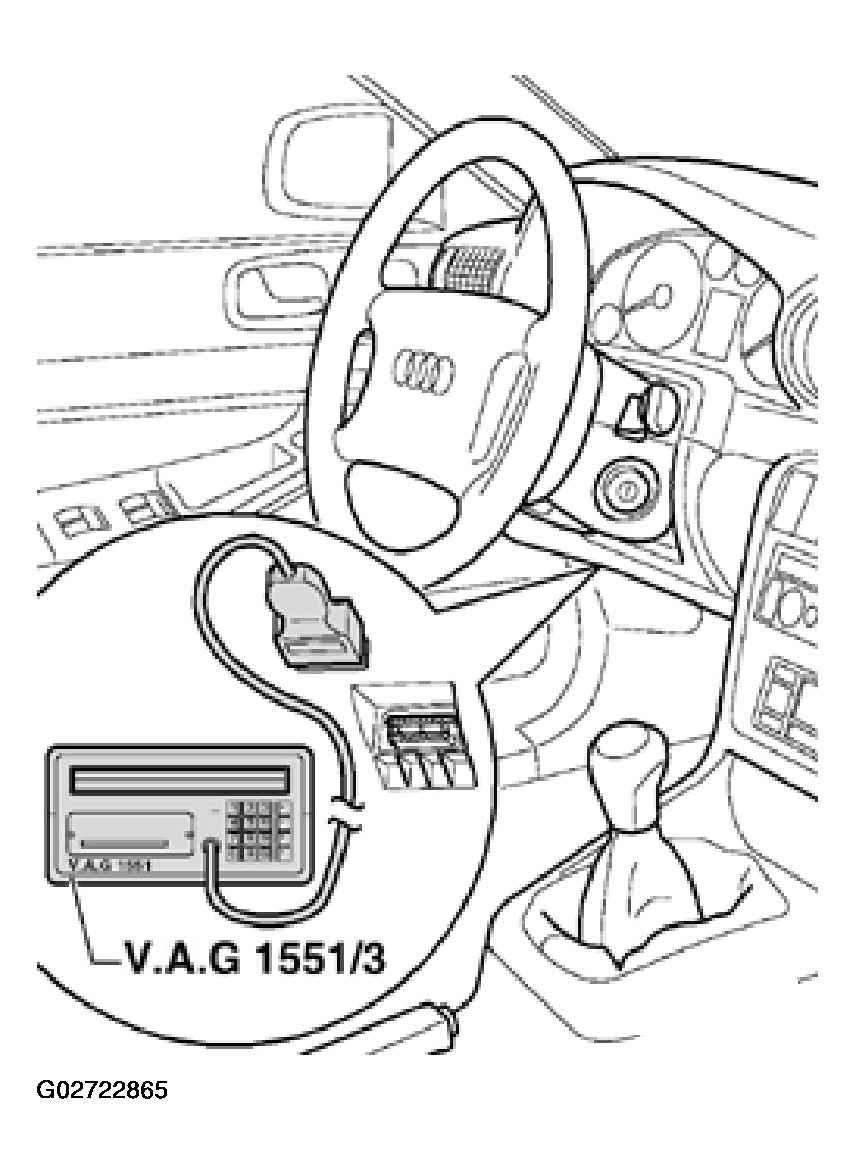

Fig 1: Connecting VAG 1551 Scan Tool (ST) VAG 1551/3 Adapter Cable To Data Link Connector (DLC)

Courtesy of AUDI OF AMERICA, INC.

Switch printer on by pressing PRINT button (indicator light in button comes on).
