Test sequence

Connect VAG1551/VAG1552 Scan Tool (ST) and press buttons -0- and -1- to insert "Engine Electronics" address word 01 (engine running at idle). See VAG1551/VAG1552 SCAN TOOL (ST), CONNECTING AND SELECTING "ENGINE ELECTRONICS" ADDRESS WORD 01 .

Indicated on display

Fig 1: VAG Scan Tool Display - Basic Setting, Scan Tool Function 04 (1 Of 4)

NOTE: By pressing the HELP button an overview of possible functions will be printed out.

Press buttons -0- and -4- to select "Basic Setting" function 04, and press -Q- button to confirm input.

Indicated on display

Fig 2: VAG Scan Tool Display - Basic Setting, Scan Tool Function 04 (2 Of 4)

NOTE: Display group number 0 (000) is used as an example to demonstrate the procedure.

Fig 3: Changing Display Group Chart

Press -0- button three times to input display group number 0 (000), and press -Q- button to confirm input.

Indicated on display

Fig 4: VAG Scan Tool Display - Basic Setting, Scan Tool Function 04 (3 Of 4)

NOTE:

If specified values were attained in all display fields, Press --> button to advance through program sequence.

Indicated on display

Fig 5: VAG Scan Tool Display - Basic Setting, Scan Tool Function 04 (4 Of 4)

Press buttons -0- and -6- to select "End Output" function 06, and press -Q- button to confirm input.
If one of the specified values is not attained evaluation of display group 000. See DISPLAY GROUP 000 - EVALUATION .
Continue by using procedures in "Corrective action" column.

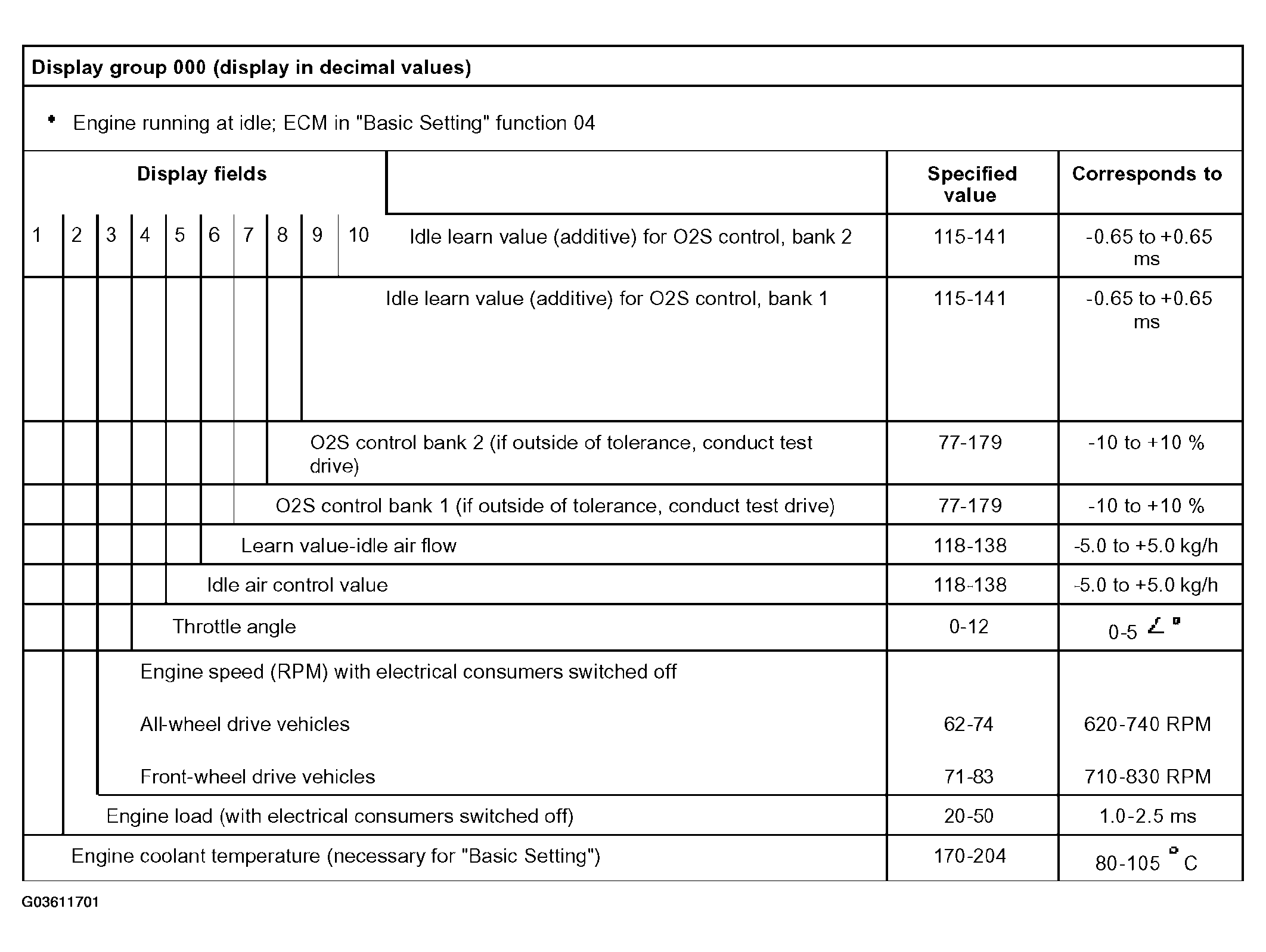

Fig 6: Display Group 000 (Display In Decimal Values)
