Functional test

Check that steering column turns easily without jerking.
Check that steering column can be adjusted for height and reach.
Check gap-dimension A- between slide and mounting bracket.
Dimension a; maximum 0.5 mm or smaller

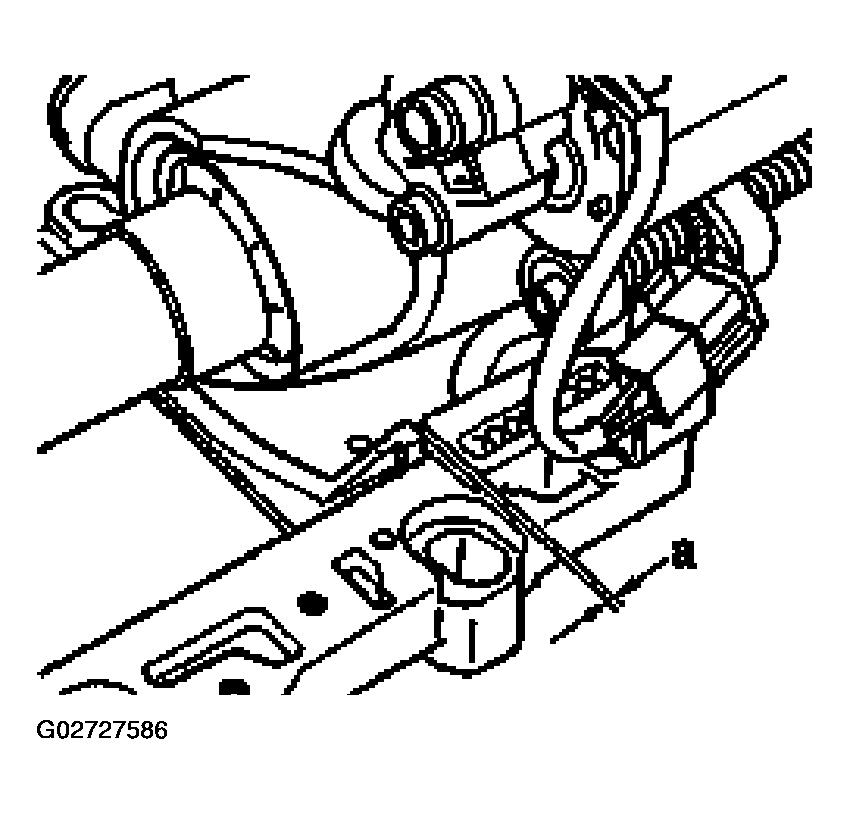

Fig 1: Checking Gap Between Slide And Mounting Bracket

Courtesy of AUDI OF AMERICA, INC.

If dimension -a- is larger than 0.5mm, the steering column is damaged and must be replaced.
