Component Locations

COMPONENT LOCATIONS

Component	Location
Central Locking System Pump	In Trunk At Left, Behind Trunk Trim. See Fig 1 .
Front Door Lock Switches	On Door Trim Panel (Front). See Fig 2 .
Interior Fuse Panel	Front Of Passenger Footwell
Locking System Actuators	Connected By Vacuum Lines, Behind Door Trim Panel. See Fig 1 .
Rear Door Lock Switches	On Door Trim Panel (Rear). See Fig 3 .
Starting Interlock Relay	Auxiliary Fuse & Relay Panel E-Box, Front Of Passenger Footwell. See Fig 7 .

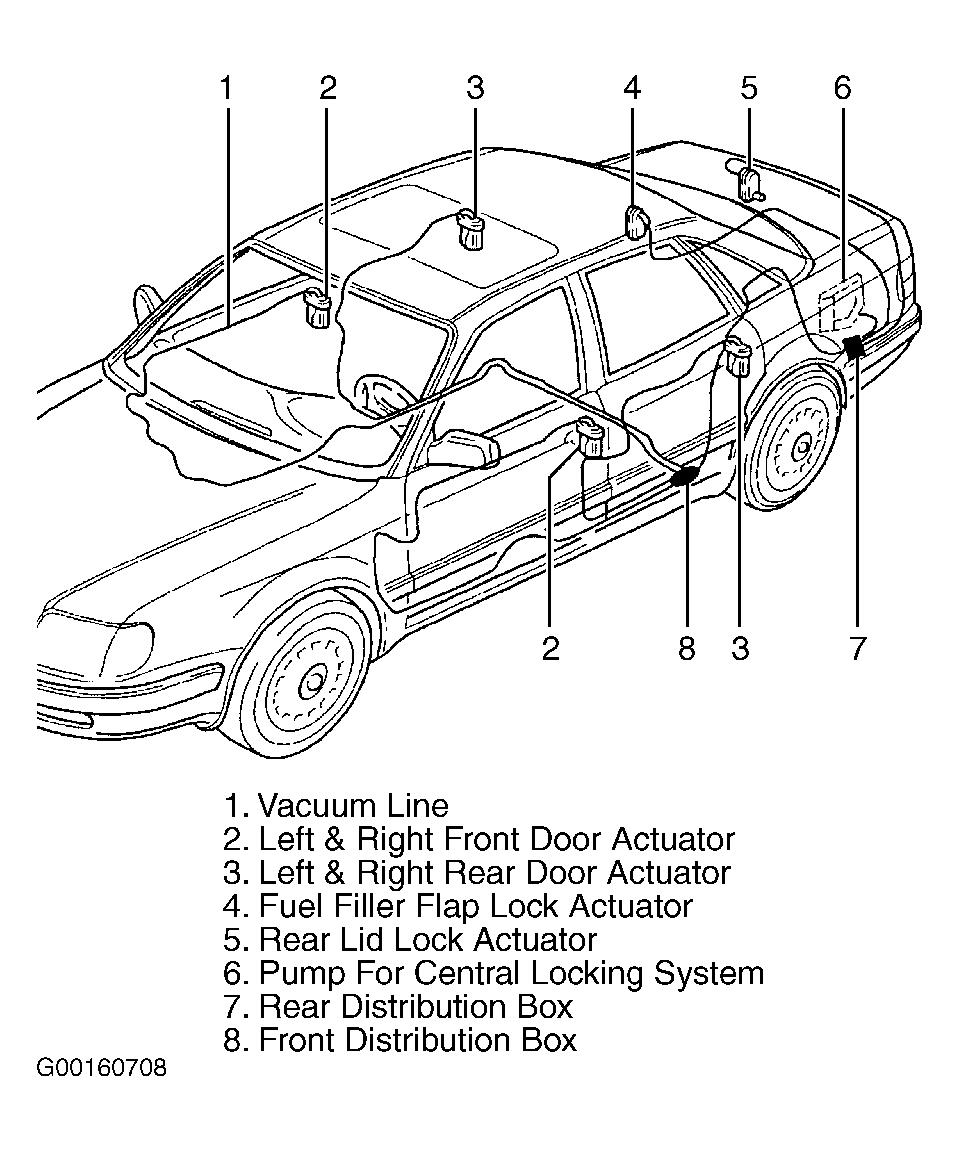

Fig 1: Locating Power Door Lock Components

G00160708

Courtesy of AUDI OF AMERICA, INC.

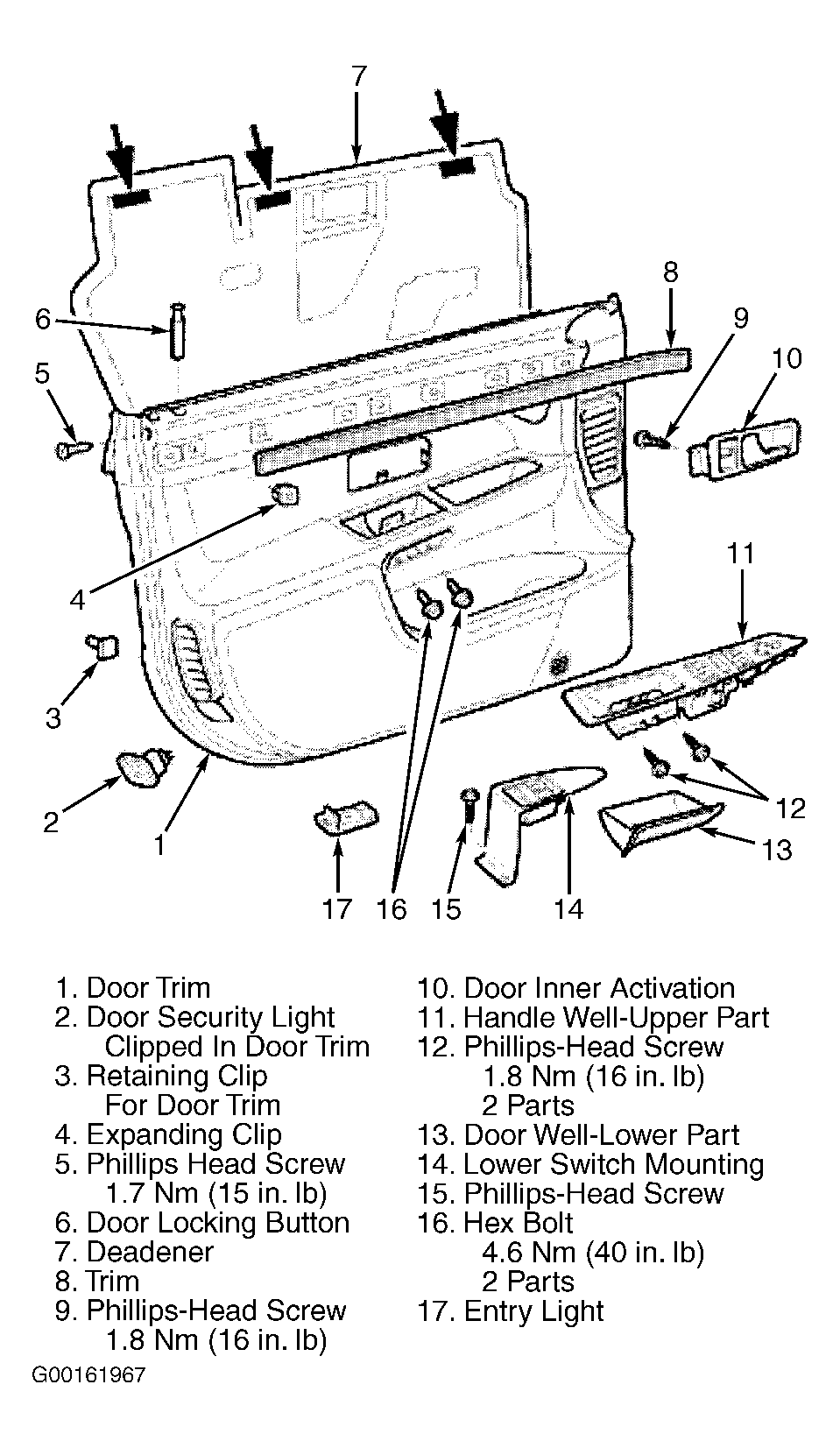

Fig 2: Locating Front Door Trim Components

G00161967

Courtesy of AUDI OF AMERICA, INC.

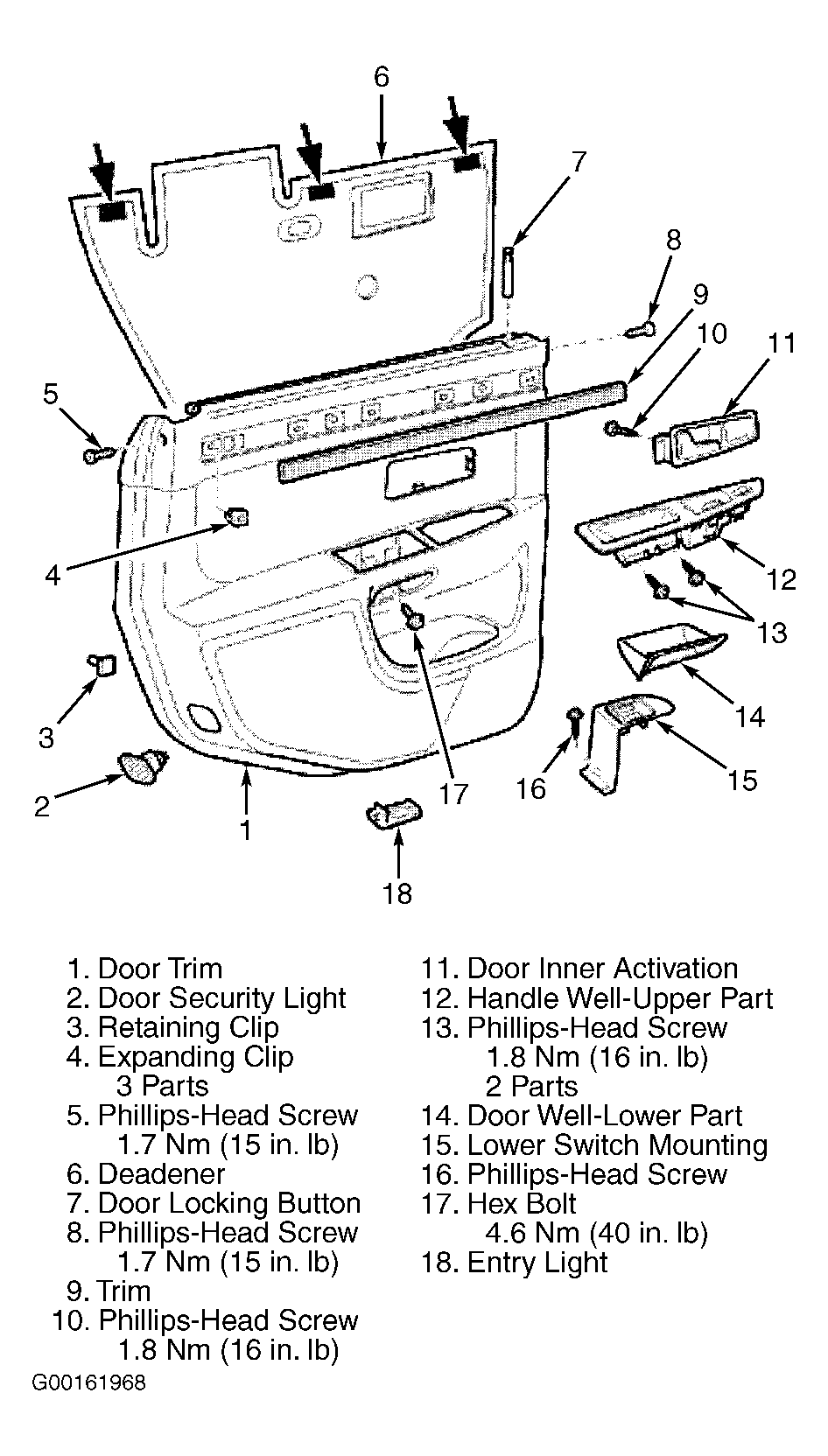

Fig 3: Locating Rear Door Trim Components

G00161968

Courtesy of AUDI OF AMERICA, INC.

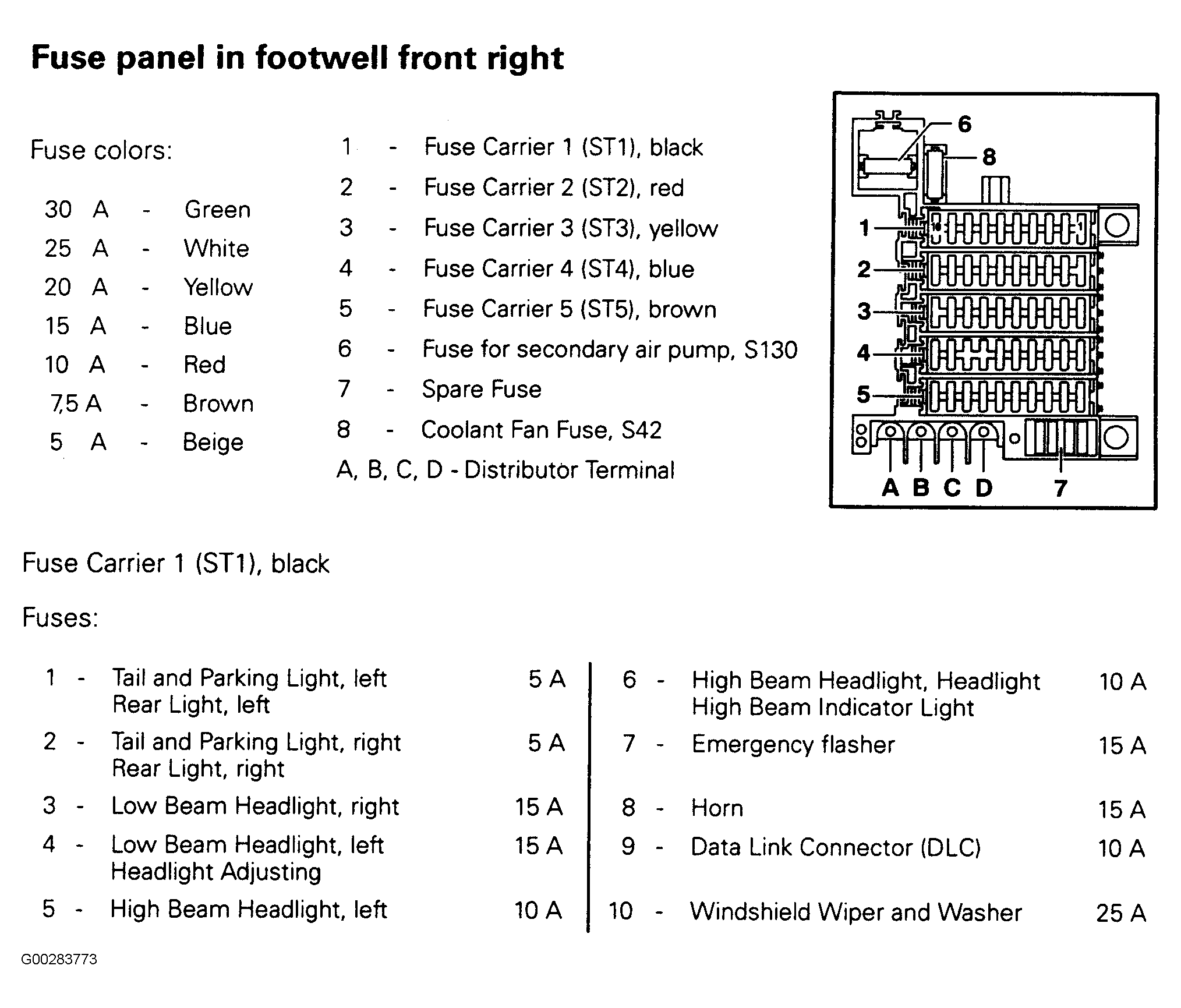

Fig 4: Identifying Interior Fuse Panel Components (1 Of 3)

G00283773

Courtesy of AUDI OF AMERICA, INC.

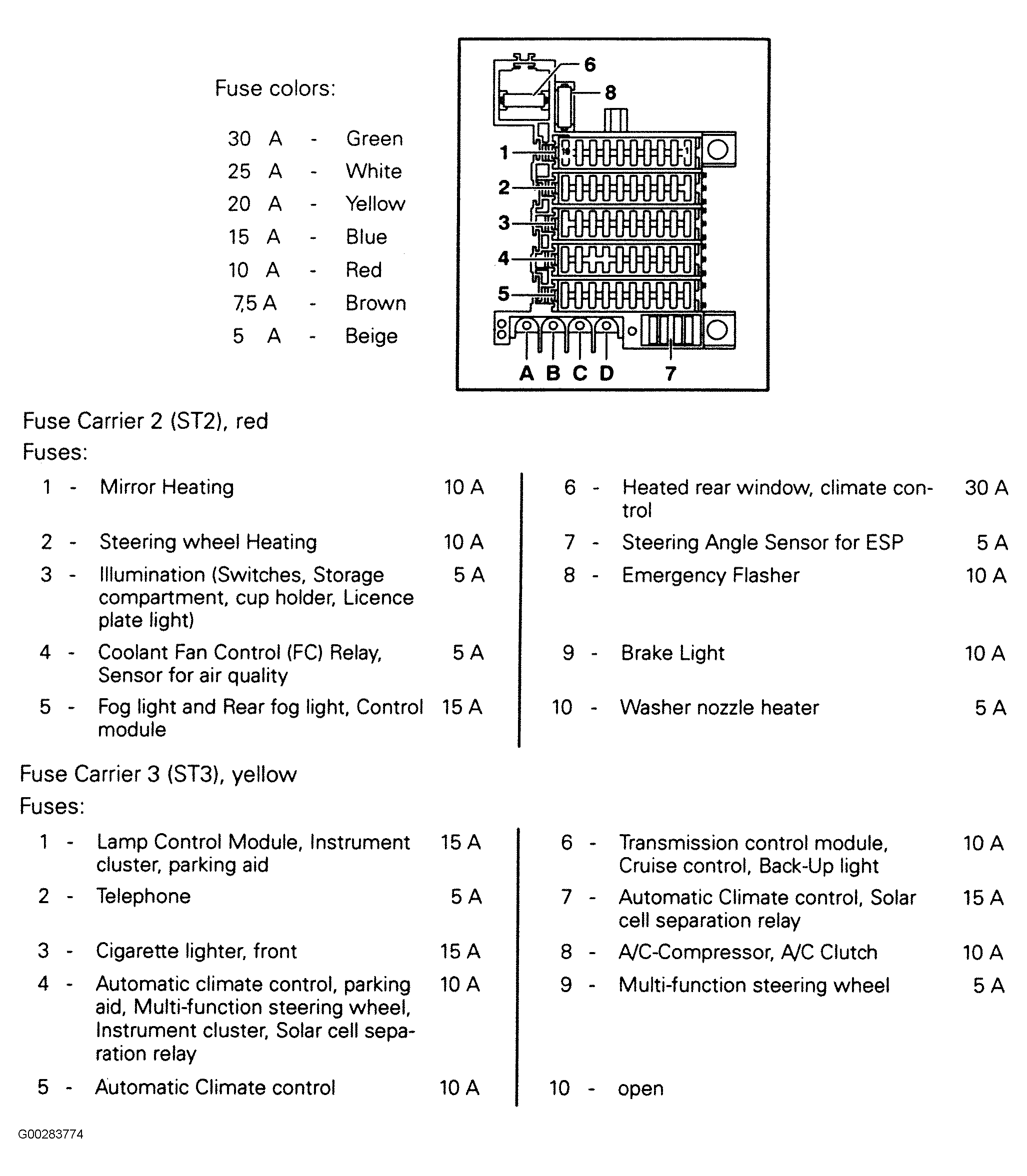

Fig 5: Identifying Interior Fuse Panel Components (2 Of 3)

G00283774

Courtesy of AUDI OF AMERICA, INC.

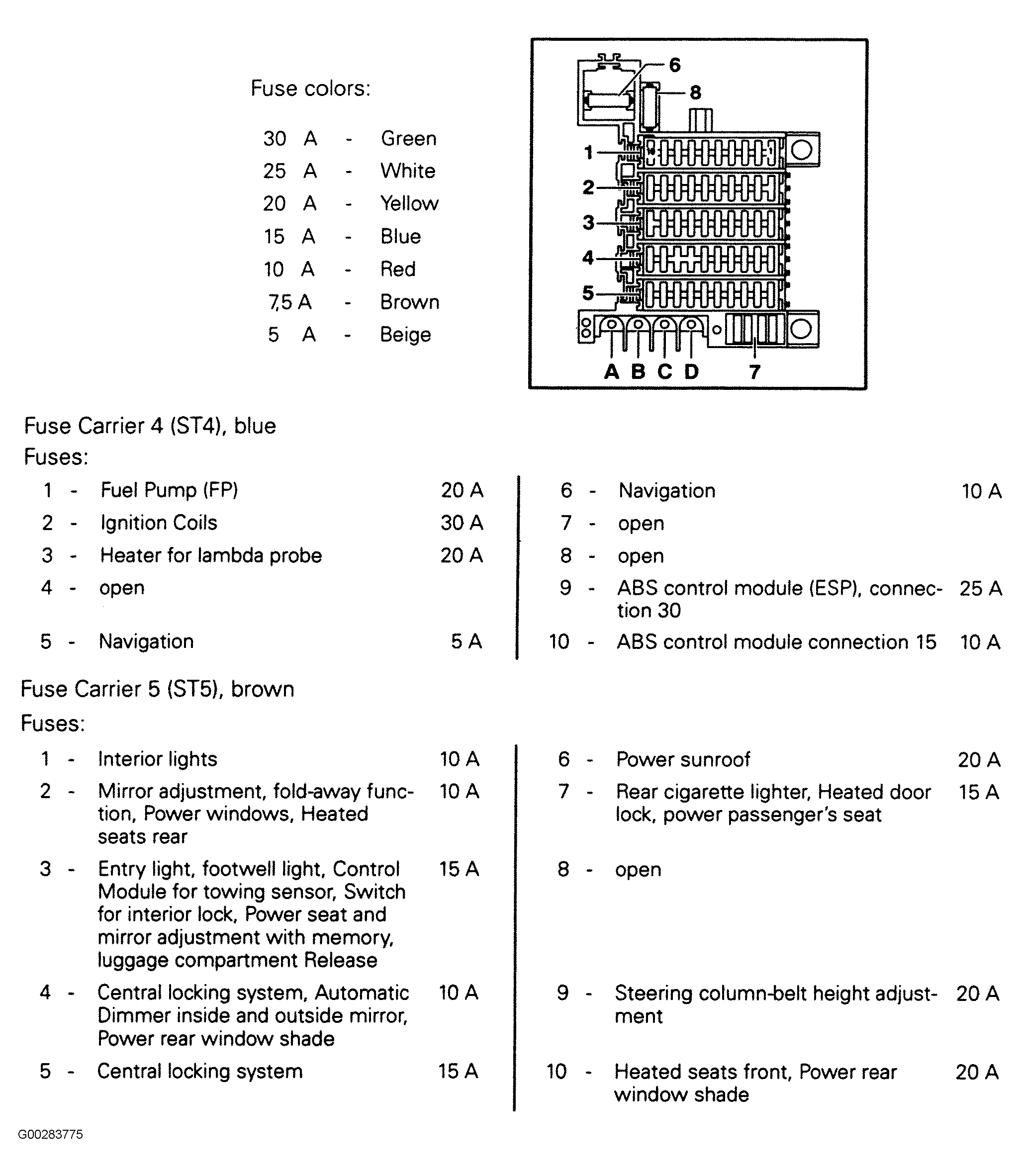

Fig 6: Identifying Interior Fuse Panel Components (3 Of 3)

G00283775

Courtesy of AUDI OF AMERICA, INC.

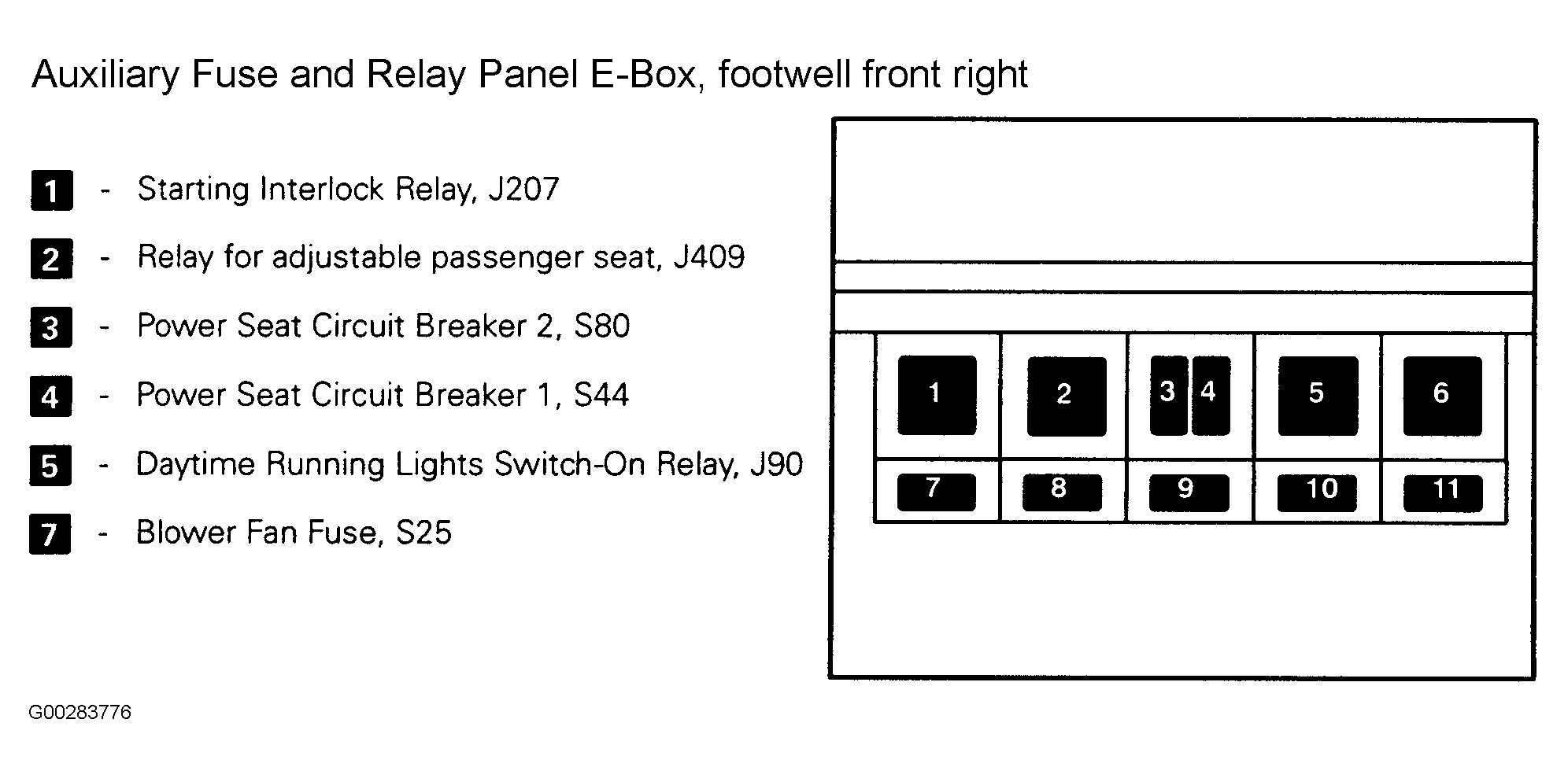

Fig 7: Identifying Auxiliary Fuse & Relay Panel E-Box Components

G00283776

Courtesy of AUDI OF AMERICA, INC.
