Code: 20129

• Manufacturer: 2 = Audi
• 2nd digit = 0
• Configuration: 1 = 4 antennas, 5 wheels, 4-wheel-monitoring
• Specified pressure: 2 = 2.2 bar
• 5th digit = 9

• The display shows the control module identification with the entered code (20129).

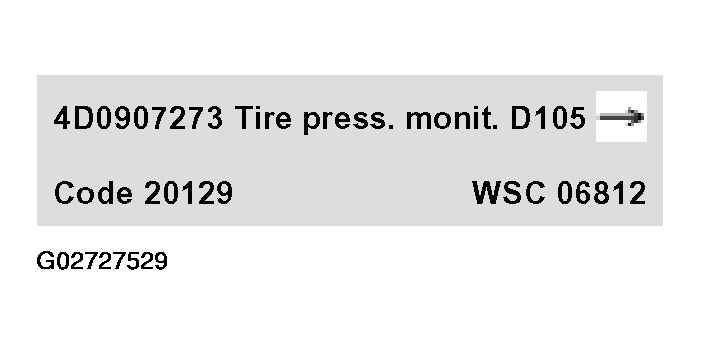

  Fig 1: VAG 1551 Scan Tool Display - Encode Control Module, Tire Pressure Monitoring (Code 20129)

  Courtesy of AUDI OF AMERICA, INC.
• Press --> button to terminate coding.

Indicated on display:

• Press buttons -0- and -6-

Indicated on display:

• Confirm entry with -Q- button.

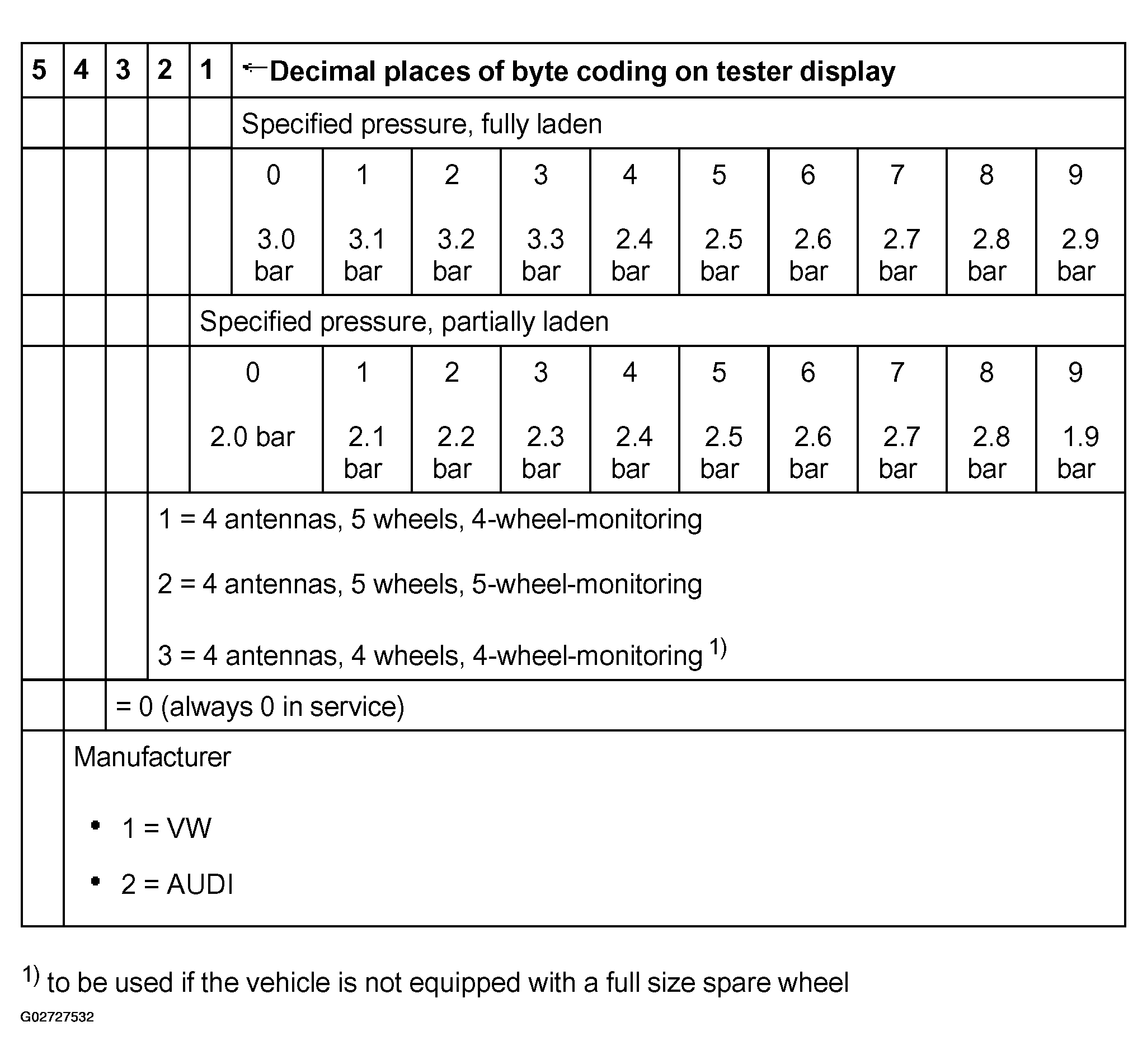

  Fig 4: Control Module Coding Table - Tire Pressure Monitoring

  Courtesy of AUDI OF AMERICA, INC.
• The display shows the control module identification with the entered code (20129).

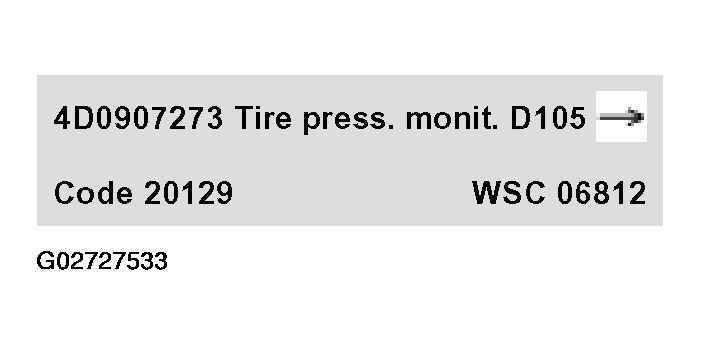

  Fig 5: VAG 1551 Scan Tool Display - Encode Control Module, Tire Pressure Monitoring (Code 20129)

  Courtesy of AUDI OF AMERICA, INC.
• Press --> button to terminate coding.

Indicated on display:

• Press buttons -0- and -6-.

Indicated on display:

• Confirm entry with -Q- button.
