Adaptation (function 10)

The adaptation function makes it possible to implement and store the following modification:

Setting of ultrasonic sensors can be adjusted such that they react less sensitively.

Starting interior monitoring system On Board Diagnostic (OBD), see ON BOARD DIAGNOSTIC (OBD) OF INTERIOR MONITORING SYSTEM, INITIATING .

Indicated on display:

Fig 1: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (1 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 2: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (2 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display: The sensor sensitivity level is displayed: for example, 100 %

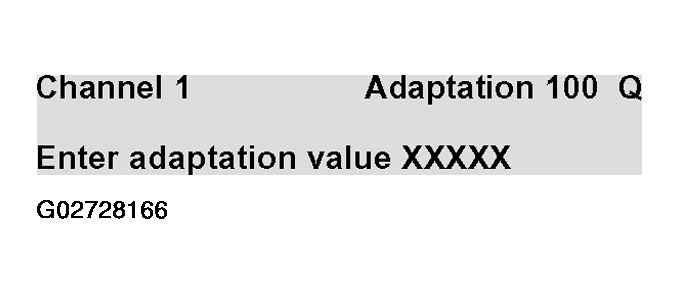

Fig 3: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (3 Of 9)

Courtesy of AUDI OF AMERICA, INC.

NOTE: The maximum ultrasonic sensor setting made at the factory is 100% and can be reduced to 50 %.

Indicated on display:

Fig 4: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (4 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 5: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (5 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 6: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (6 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 7: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (7 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 8: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (8 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Terminate adaptation of sensitivity in "Adaptation channel 01" by pressing -> key.

Indicated on display (function selection):

Fig 9: V.A.G 1551 Scan Tool Display - Adaptation, Interior Monitoring System (9 Of 9)

Courtesy of AUDI OF AMERICA, INC.
