Description & Operation

To identify steering system, see Fig 1 , Fig 2 or Fig 3 .

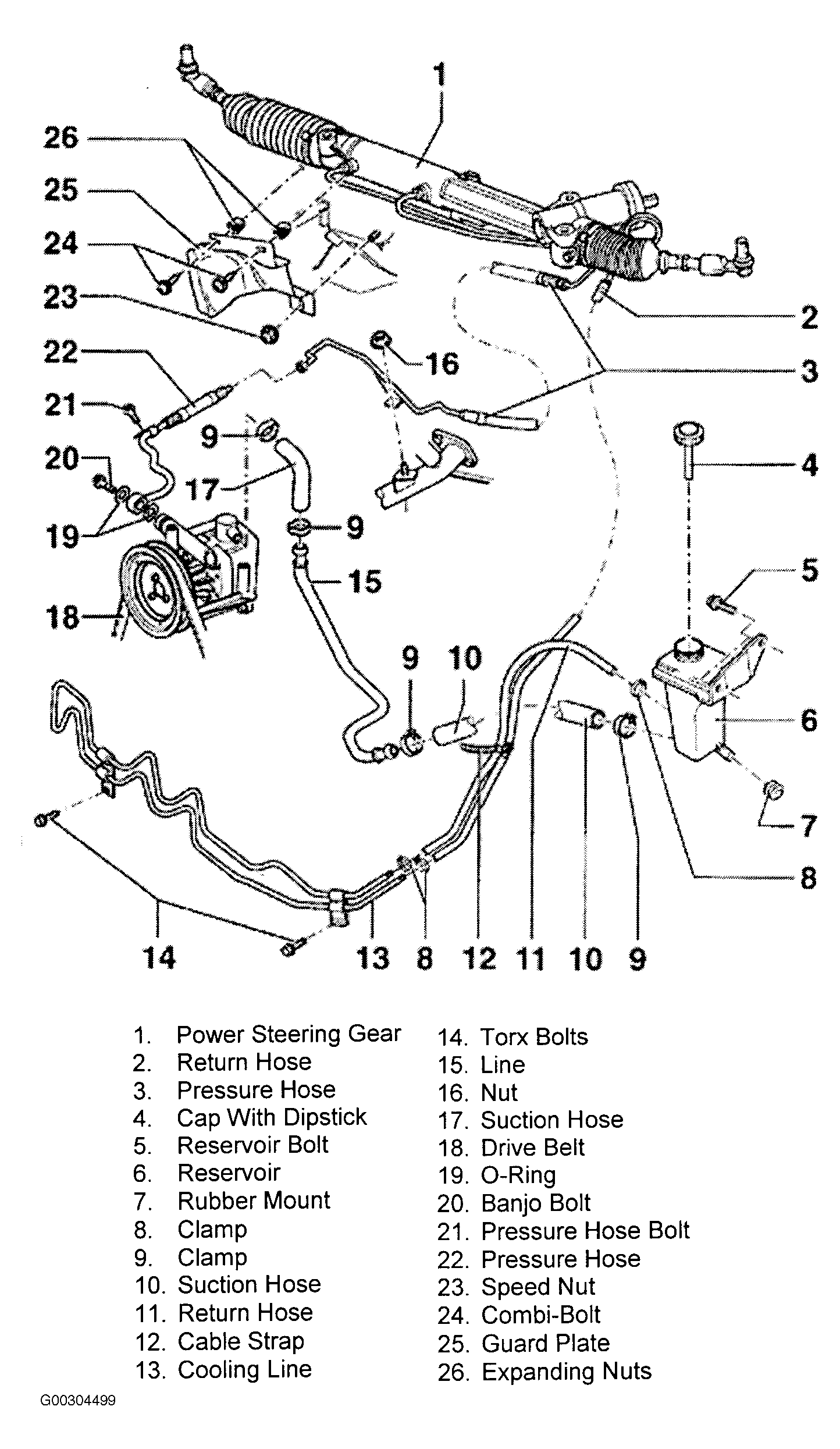

Fig 1: Identifying Power Steering Components 1.8L Turbo (AEB, ATM & AWM)

Courtesy of AUDI OF AMERICA, INC.

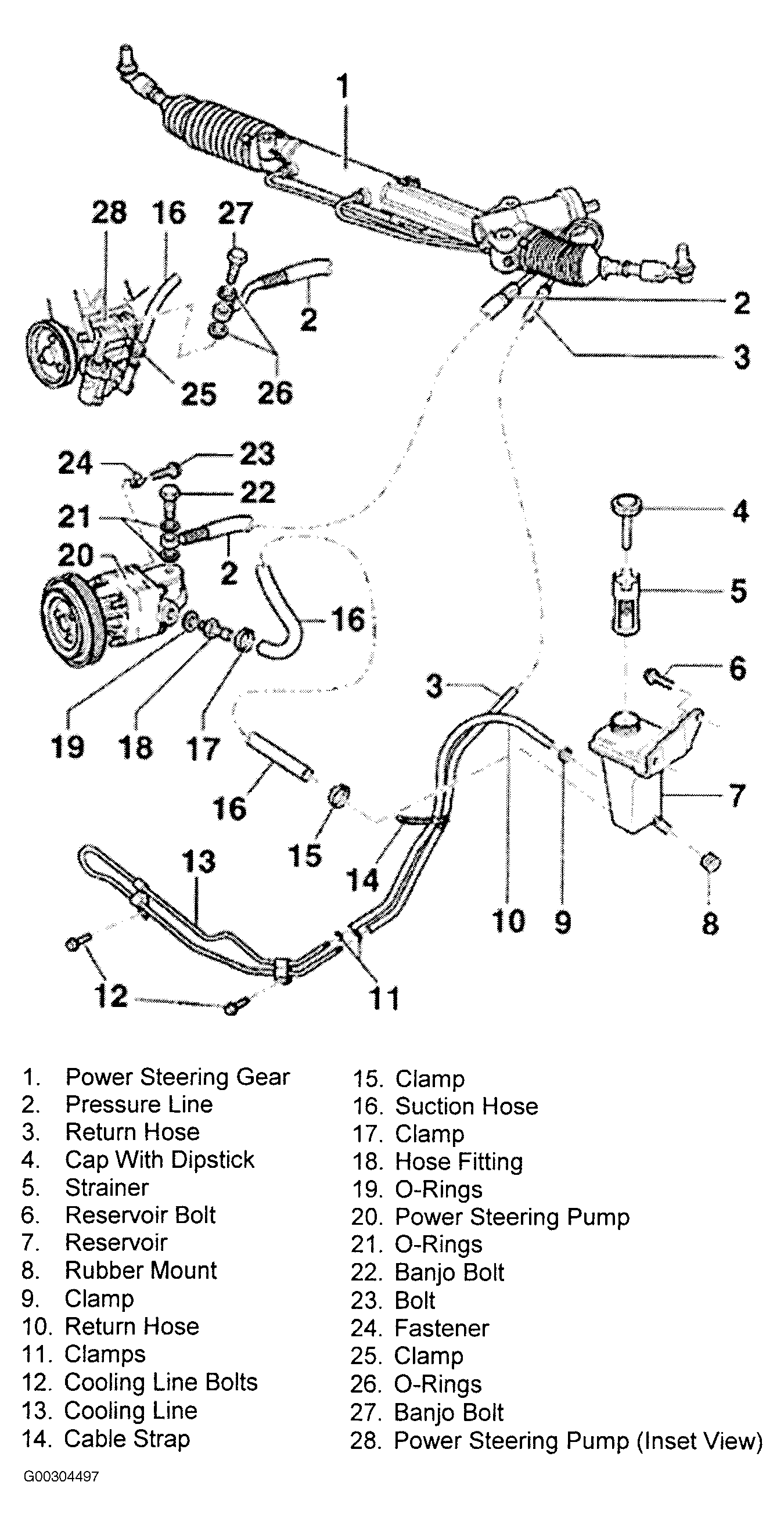

Fig 2: Identifying Power Steering Components 2.8L V6 (AFC)

Courtesy of AUDI OF AMERICA, INC.

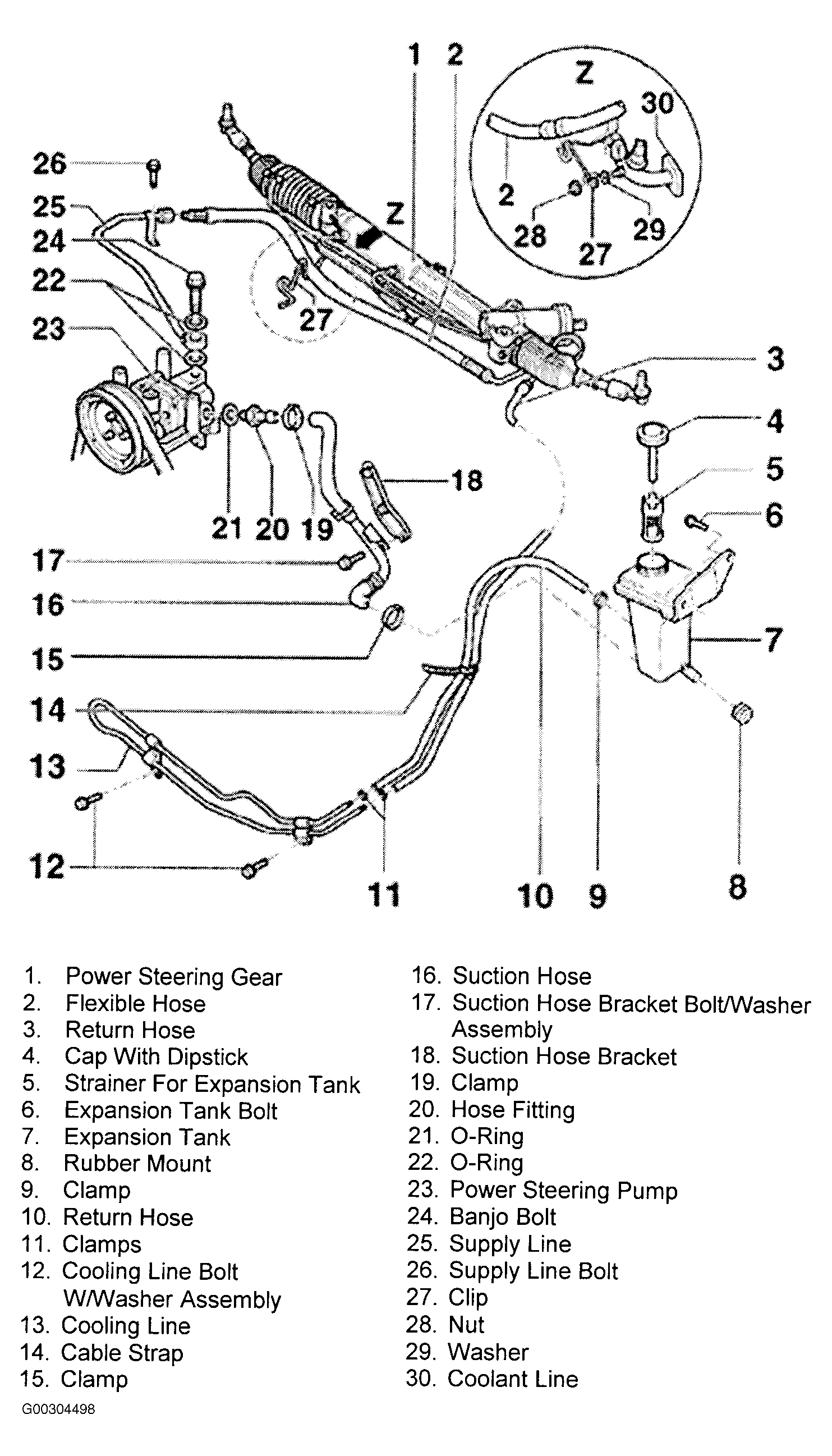

Fig 3: Identifying Power Steering Components 2.8L V6 (AHA & ATQ)

Courtesy of AUDI OF AMERICA, INC.
