Notes
Wiring Diagrams: Notes

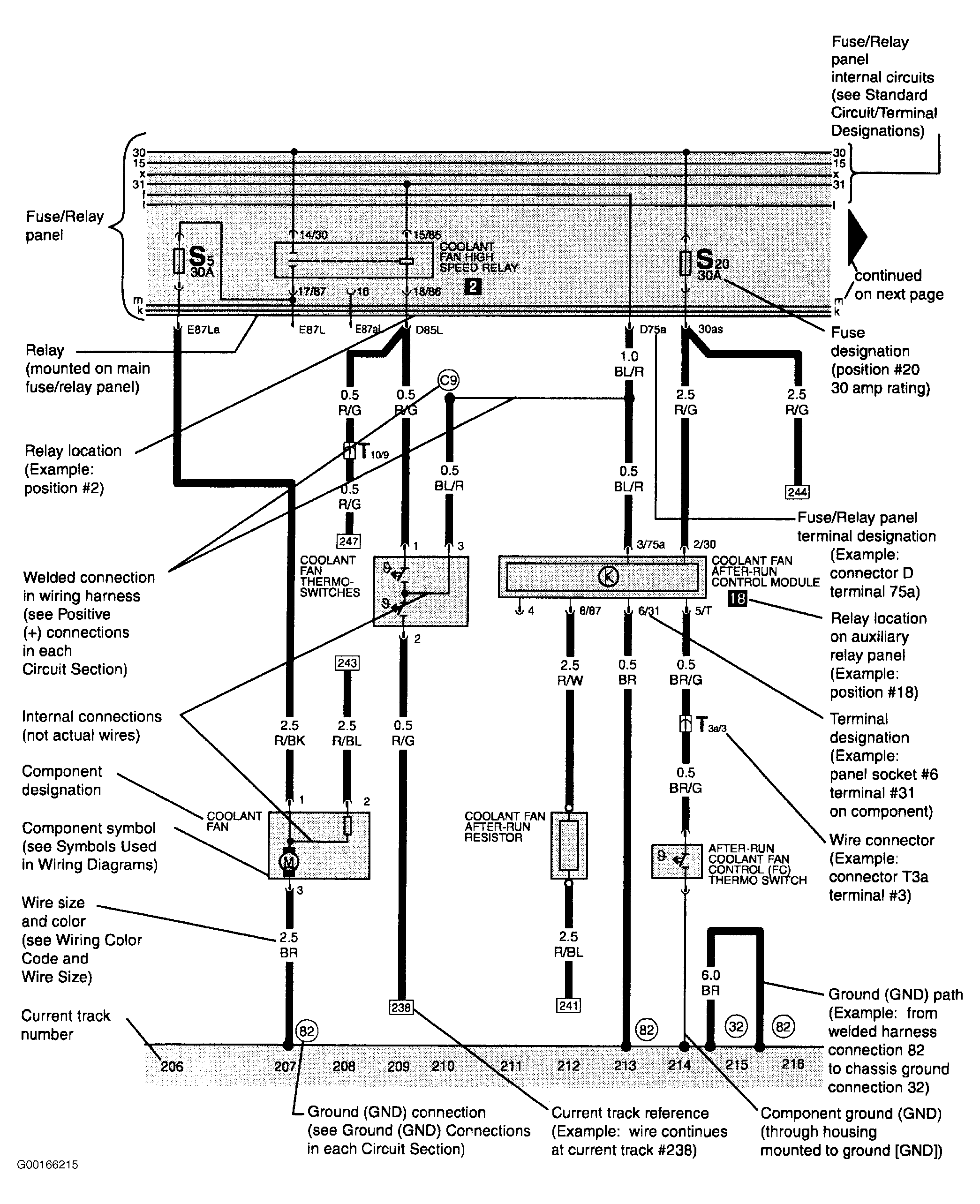

Fig 1: How To Read Wiring Diagrams
Courtesy of AUDI OF AMERICA, INC.

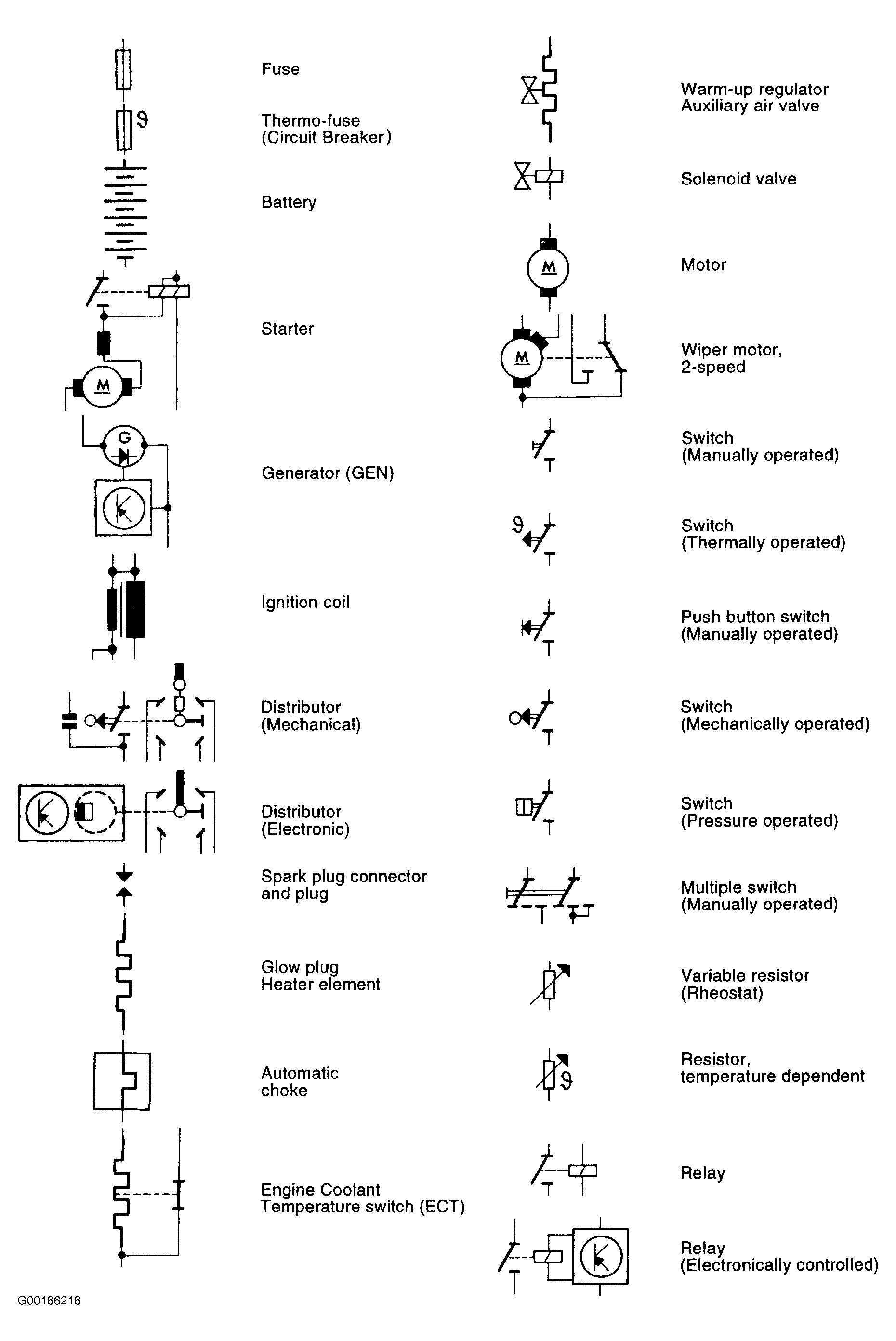

Fig 2: Wiring Diagram Symbols (1 Of 2)
Courtesy of AUDI OF AMERICA, INC.

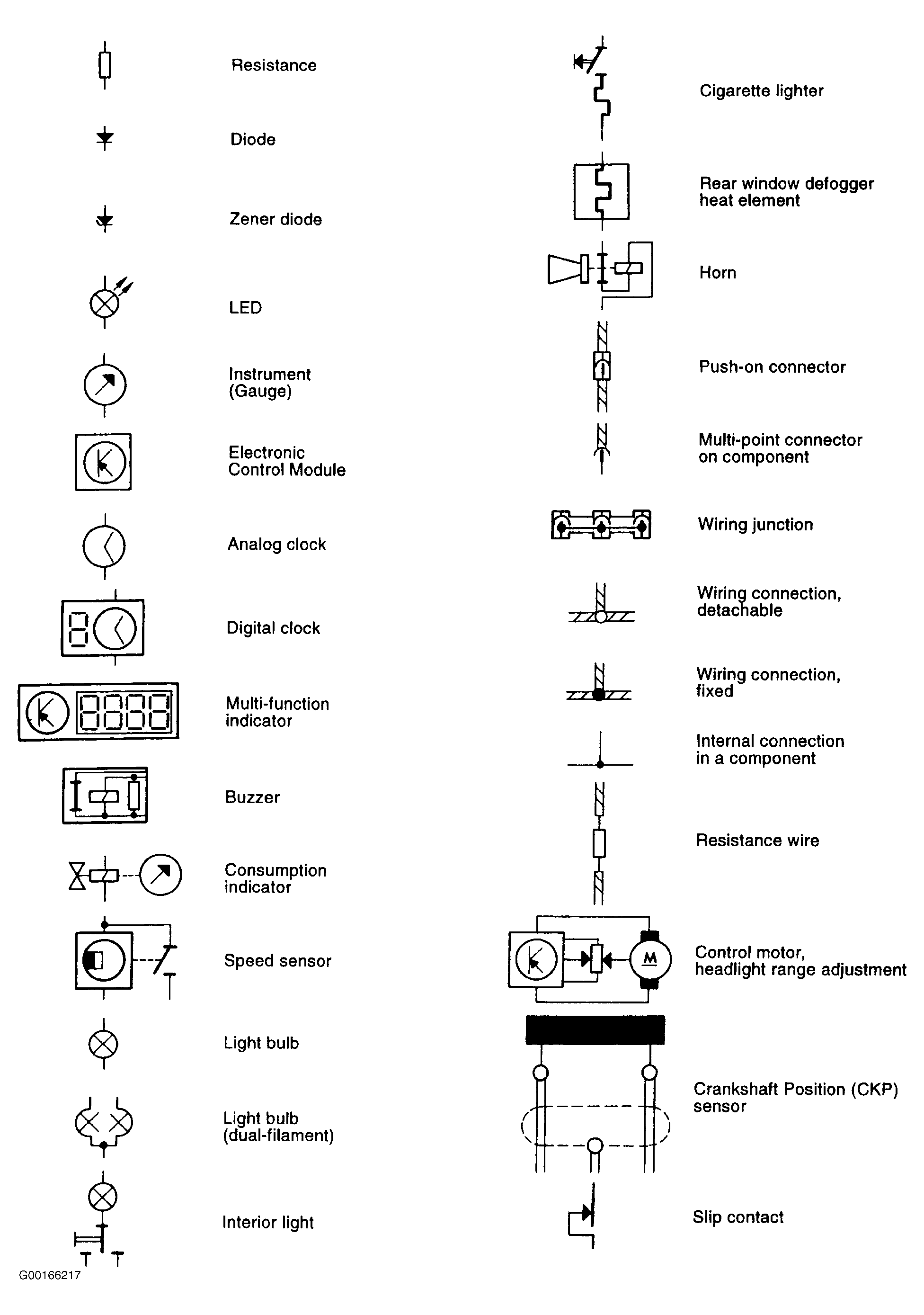

Fig 3: Wiring Diagram Symbols (2 Of 2)
Courtesy of AUDI OF AMERICA, INC.

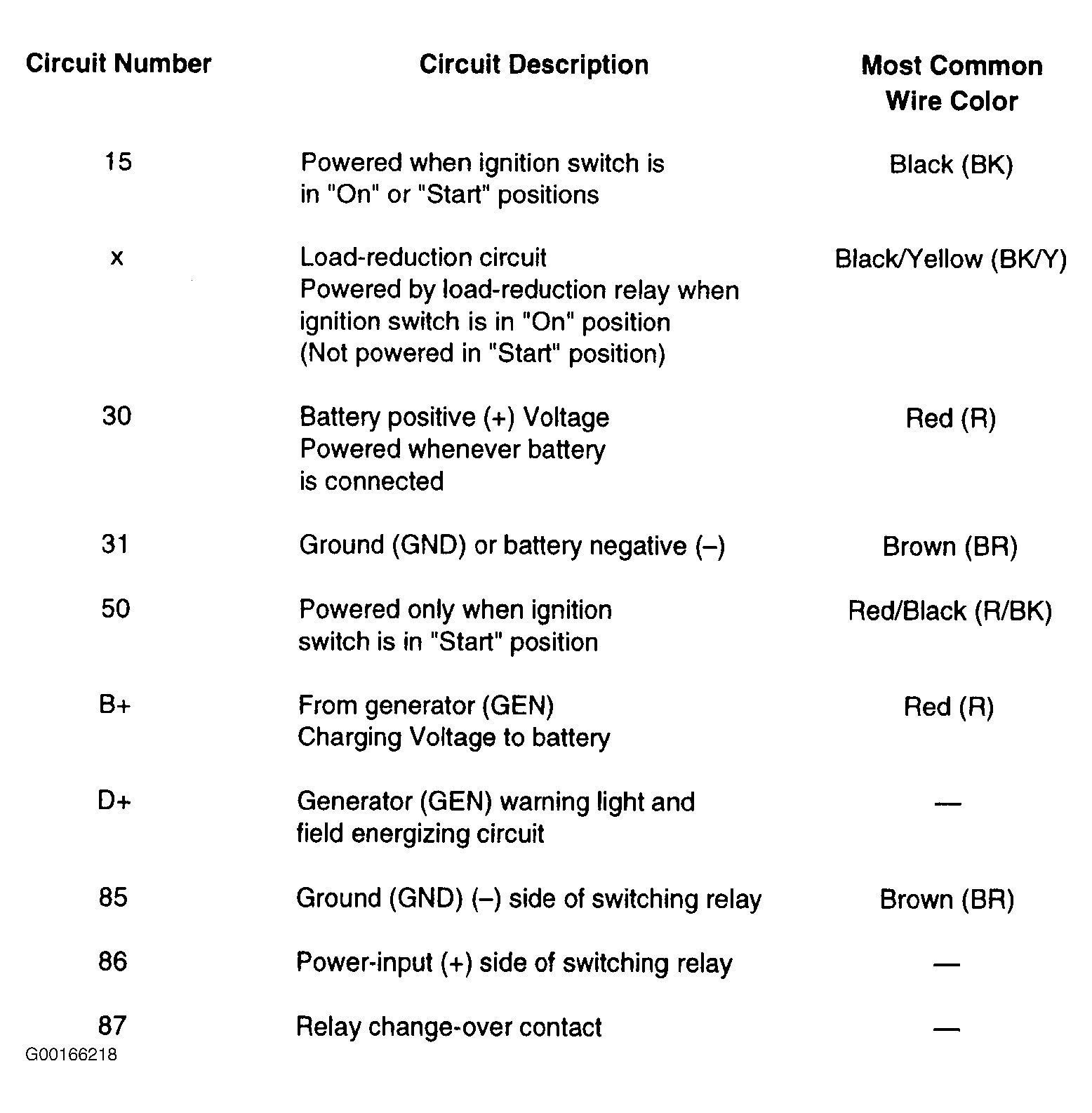

Fig 4: Standard Circuit & Terminal Designations
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
