Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Below left side of rear seat. |

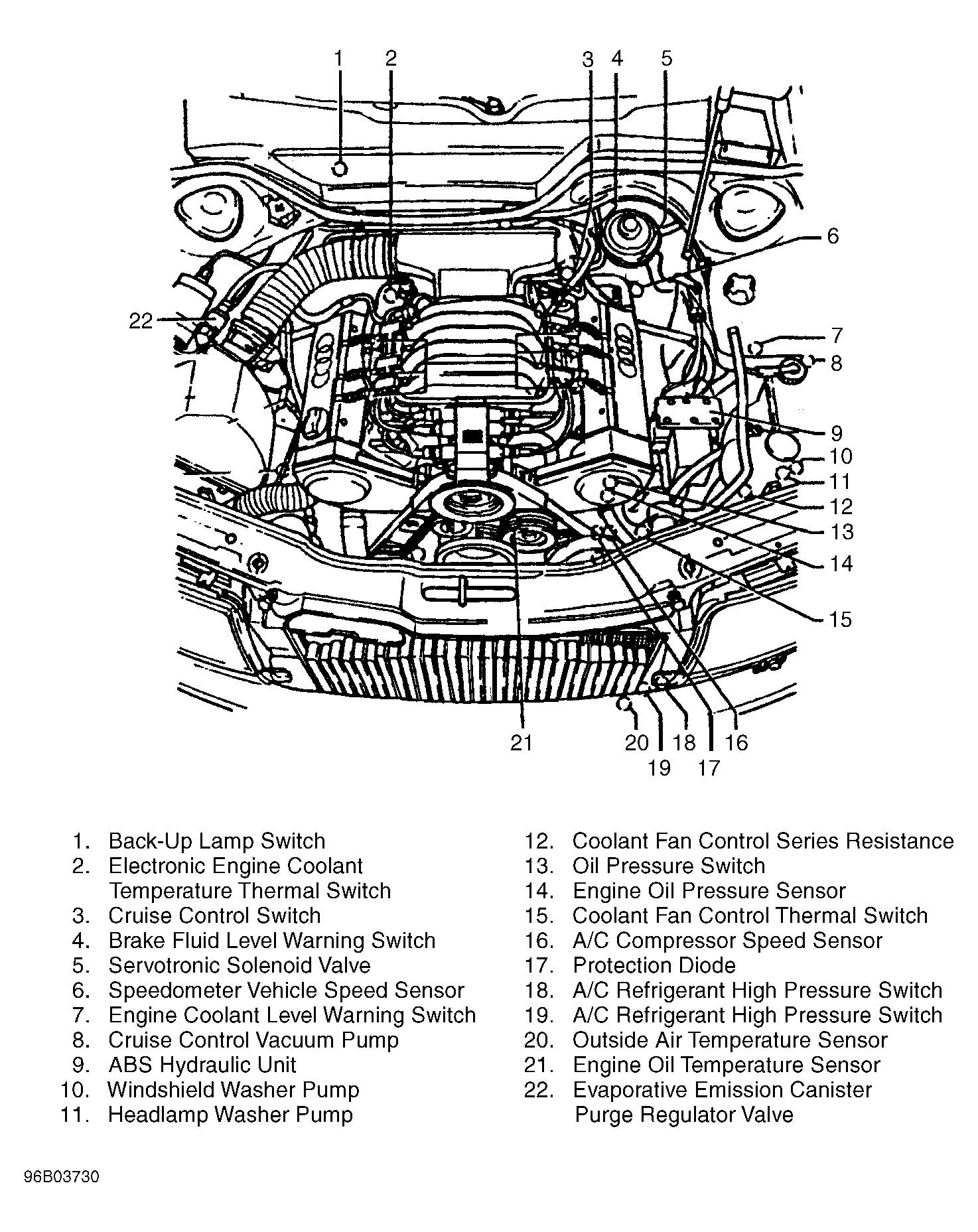

| ABS Hydraulic Unit | Left side of engine compartment. See Figure. |
| A/C Clutch Control Module | On auxiliary relay panel I, position No. 10. See Figure. |
| Airbag Triggering Unit | Below front of center console. See Figure. |
| Central Locking/Alarm System/ Interior Lamp Delay Control Module | Below right side of rear seat. |

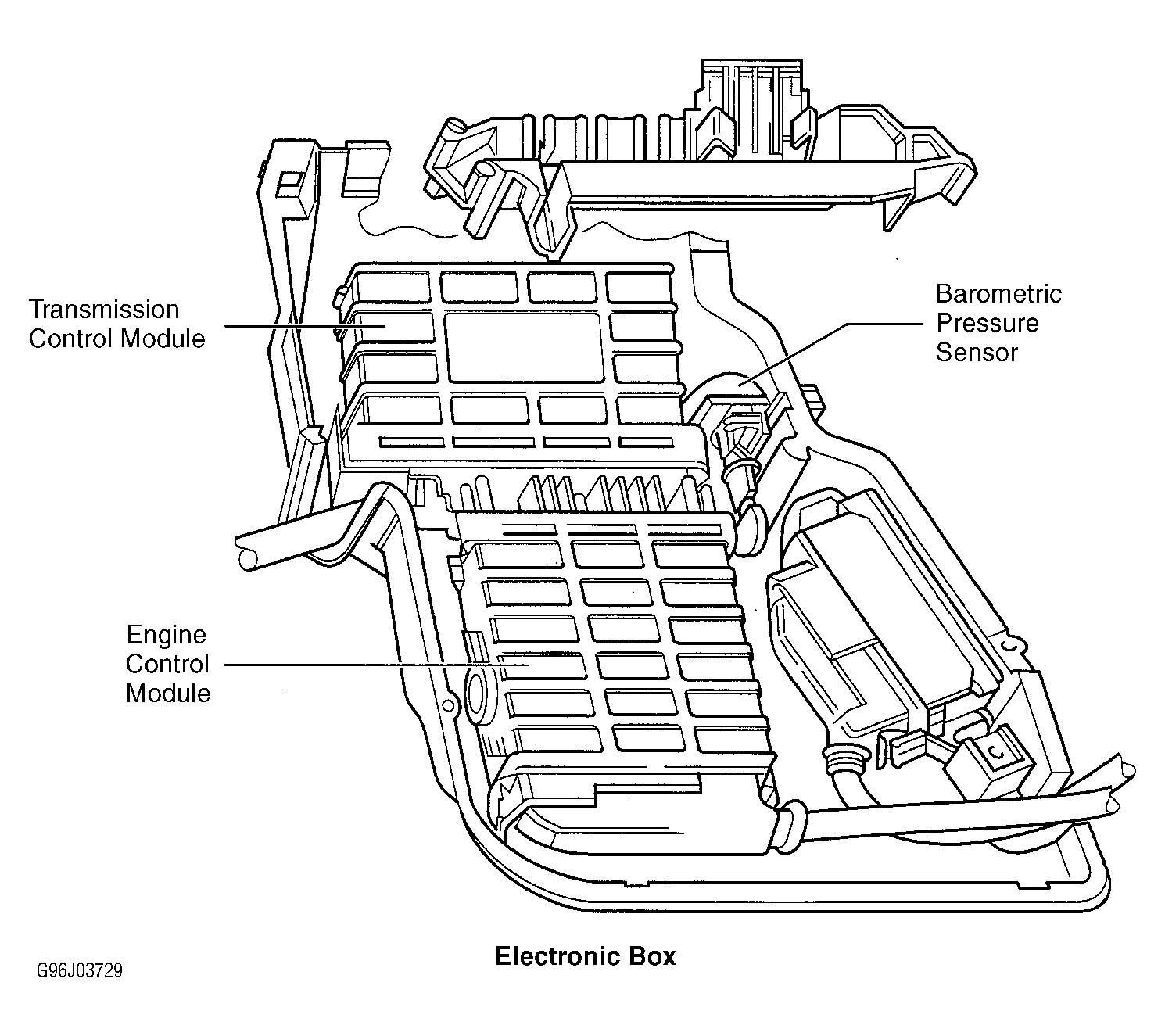

| Engine Control Module | Under right footwell carpet, in electronic box. See Figure. |
| Lamp Control Module | On auxiliary relay panel I, positions No. 14 & 15. See Figure. |
| Mirror Fold-Away Control Module | On auxiliary relay panel II, positions No. 3 & 4. See Figure. |
| Mirror Memory Control Module | Below center of rear seat. |
| Power Window/Sunroof Control Module | On auxiliary relay panel II, positions No. 1 & 2. See Figure. |
| Servotronic Control Module (1995) | Behind right side of dash. See Figure. |
| Servotronic Control Module (1996) | On auxiliary relay panel I. position No. 16. See Figure. |
| Transmission Control Module | Under right footwell carpet, in electronic box. See Figure. |
