Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

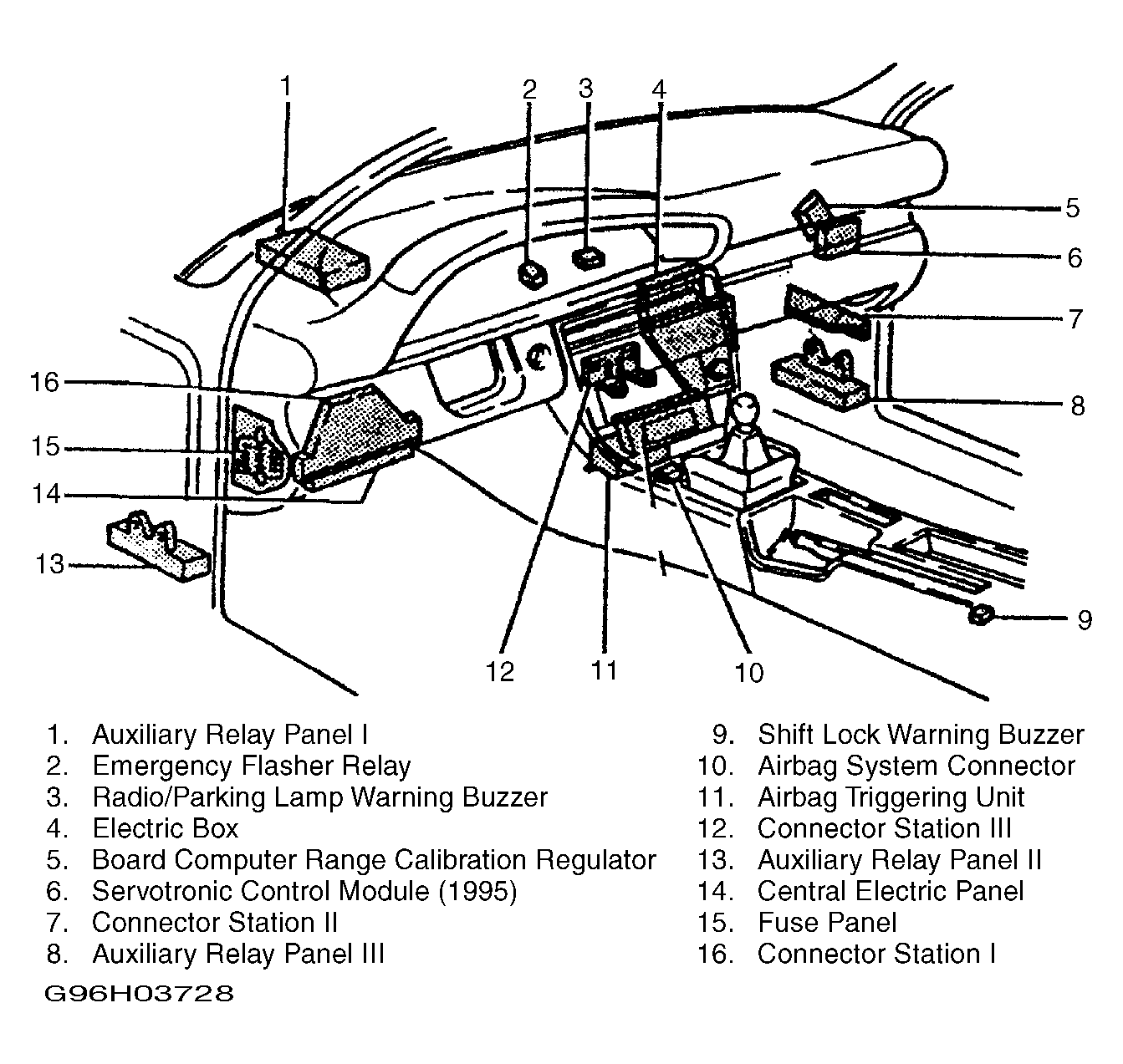

| Auxiliary Relay Panel I | Behind top left side of dash. See Figure. |
| Auxiliary Relay Panel II | Behind left kick panel. See Figure. |
| Auxiliary Relay Panel III | Behind right kick panel. See Figure. |
| Coolant Fan Fuse | On auxiliary relay panel II, position No. 7. See Figure. |
| Fuse Panel | Left side of dash. See Figure. |

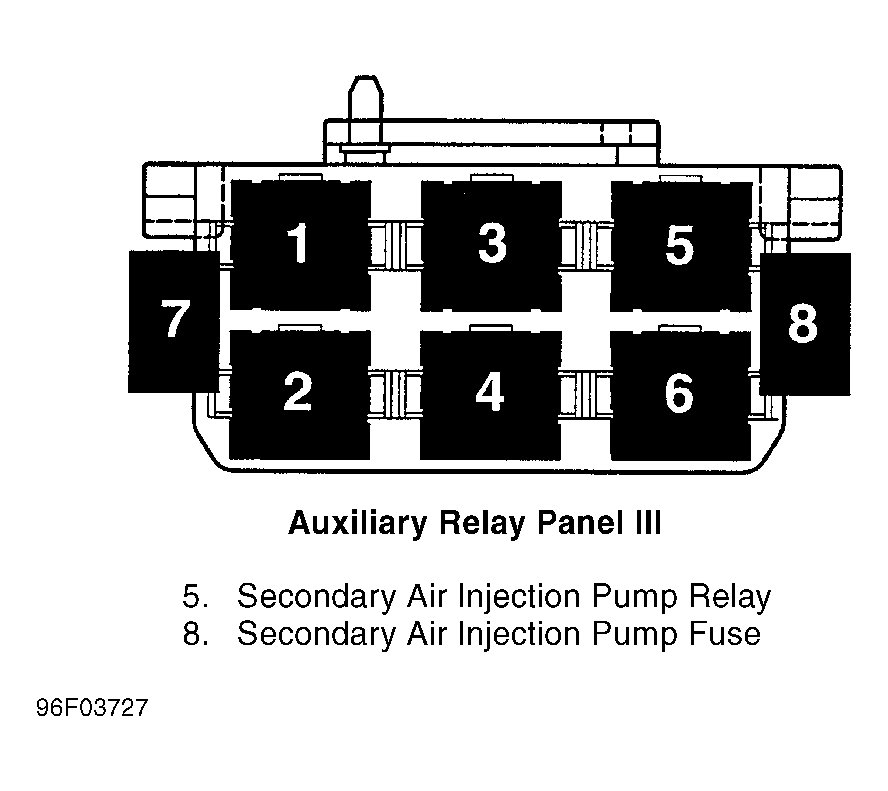

| Secondary Air Injection Pump Fuse | On auxiliary relay panel III, position No, 8. See Figure. |
