Section 14 (Automatic A/C-Heater Systems): Description

WARNING: This page is about a different car, the 2001 Audi S4, 2001 Audi A4, 2000 Audi S4, and 2000 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG SYSTEM SAFETY article in GENERAL SERVICING.

The A/C-heater control panel has buttons to control system. Blower speed is controlled automatically according to difference between selected temperature and interior temperature. Blower speed can also be controlled manually.

The A/C-heater control panel left side display shows selected temperature and automatic functions. See Fig 2 . The right side display indicates manual functions. The A/C-heater system microprocessor, located within A/C-heater control panel, has a self-diagnostic feature.

The A/C-heater system automatically maintains temperatures from 64°F (18°C) to 84°F (29°C). If a temperature greater than 84°F (29°C) is selected, the word HI appears in temperature display. If temperature less than 64°F (18°C) is selected, the word LO is displayed. Selection of these temperatures overrides automatic climate control system.

Fig 1: Identifying Condenser Manufacturer

Courtesy of AUDI OF AMERICA, INC.

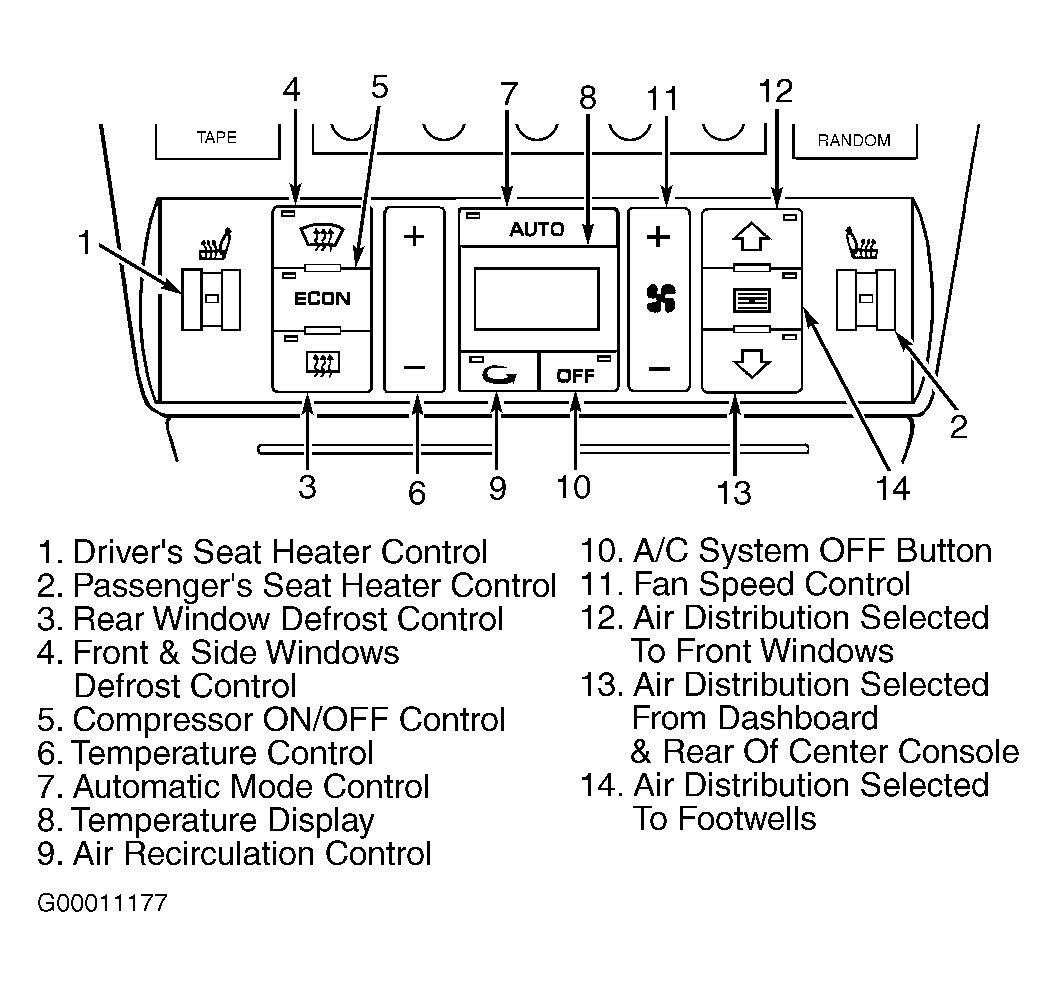

Fig 2: Identifying A/C-Heater Control Panel

Courtesy of AUDI OF AMERICA, INC.
