Power Mirror Assembly: Installation

To install, reverse removal procedure. Tighten inner mounting screw to 21 Inch lbs (2 N.m). Tighten inner mounting screw to 42 Inch lbs (5 N.m). Swing mirror back to normal position and press inward until it engages base.

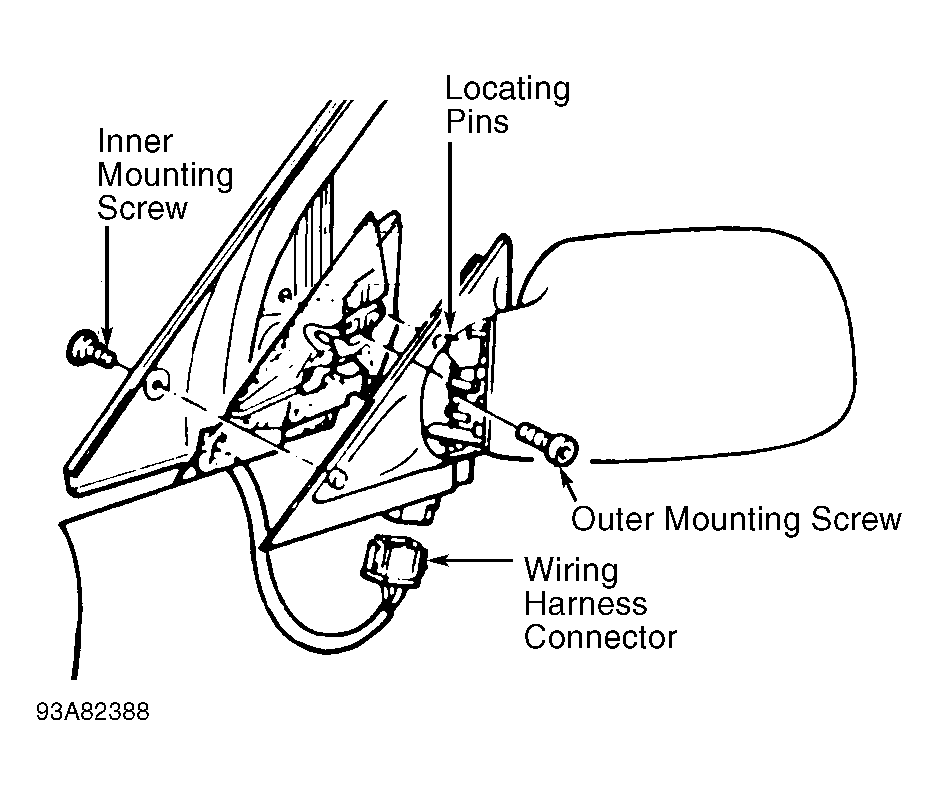

Fig 1: Removing Power Mirror Assembly

Courtesy of AUDI OF AMERICA, INC.
