Hall Sensor: Removal

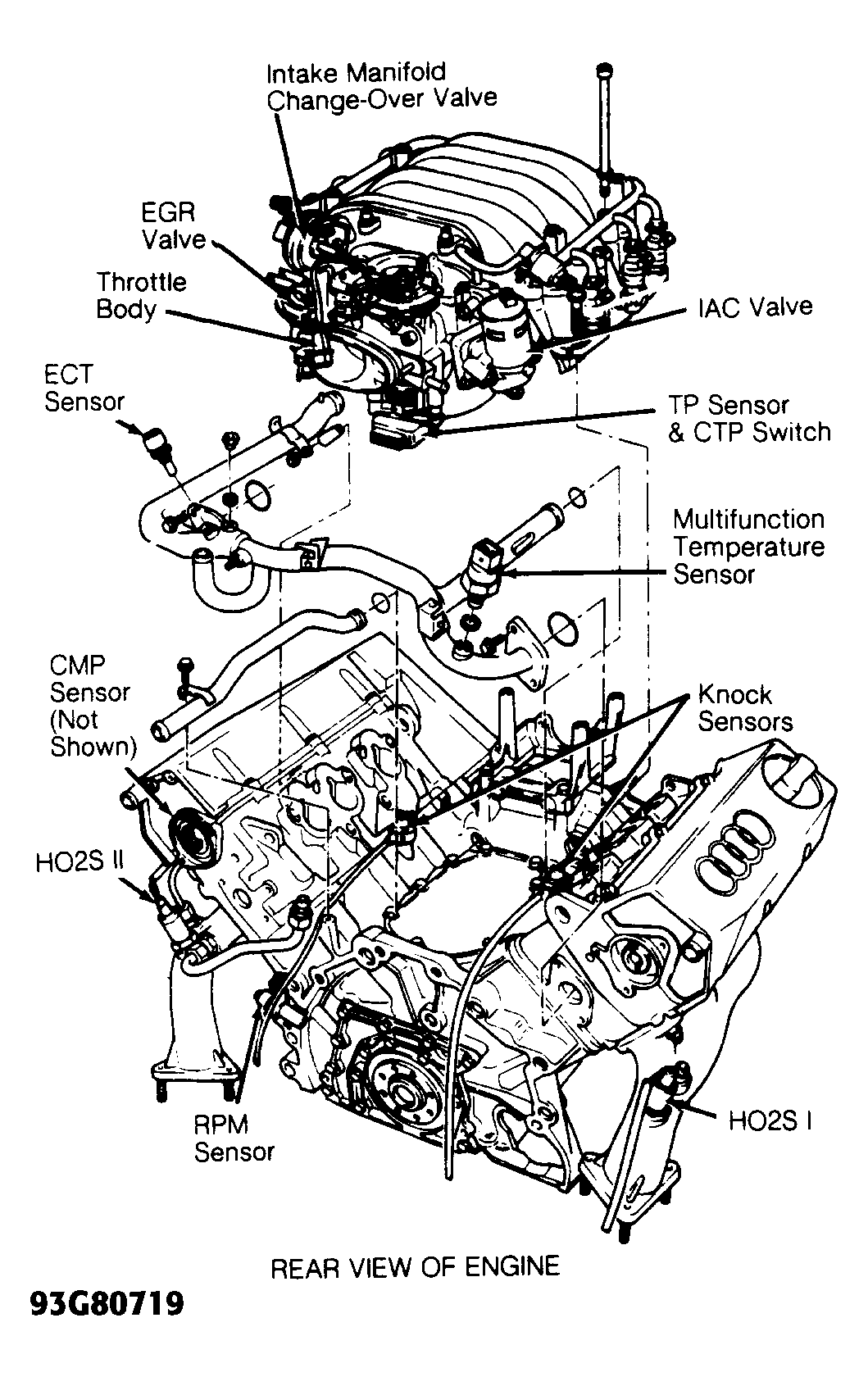

Hall Sensor is located on rear of left cylinder head. See Figure . Remove mounting bolts and sensor. To replace oil seal, remove hall sensor mounting plate. Install Seal Extractor Holder (2085/1) and Seal Extractor (3240). Remove seal.
