Automatic Shift Lock Solenoid

  1. Remove gear selector lever handle and console cover to access gear selector assembly. Place gear selector lever in Reverse.
  2. Clearance between gear selector lever and solenoid switch valve should be .04" (1.0 mm). See Fig 1 . If clearance is not correct, loosen retaining screws and adjust.

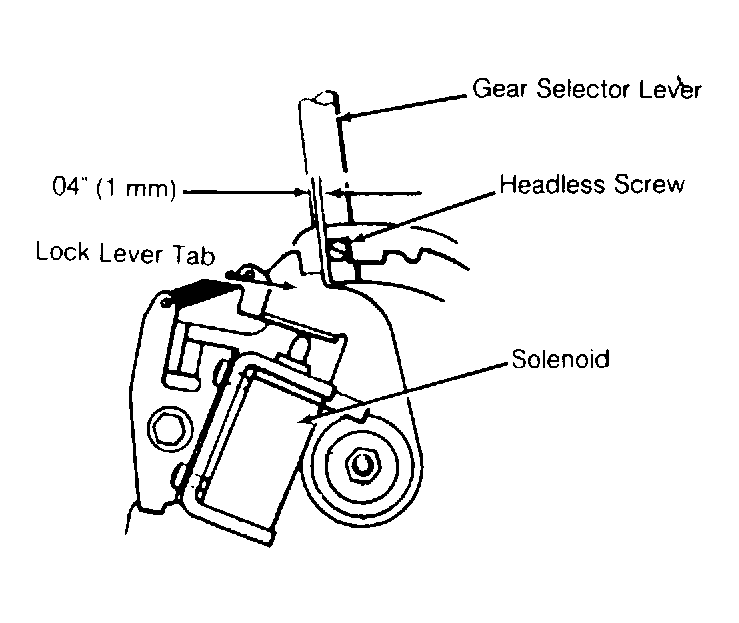

Fig 1: Adjusting Automatic Shift Lock Solenoid
G99994Courtesy of AUDI OF AMERICA, INC.
