Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Antenna Amplifier (Windshield) | In right side windshield pillar. See Figure . |
| Antenna Amplifier (Rear Window) | In trunk, below trunk latch. |
| Blower Motor Ballast Resistor | On blower housing. |
| Center Console Light Booster | Under dash, on right side of steering column. See Figure . |
| Diagnostic Connector | In fuse socket, on fuel pump relay. |

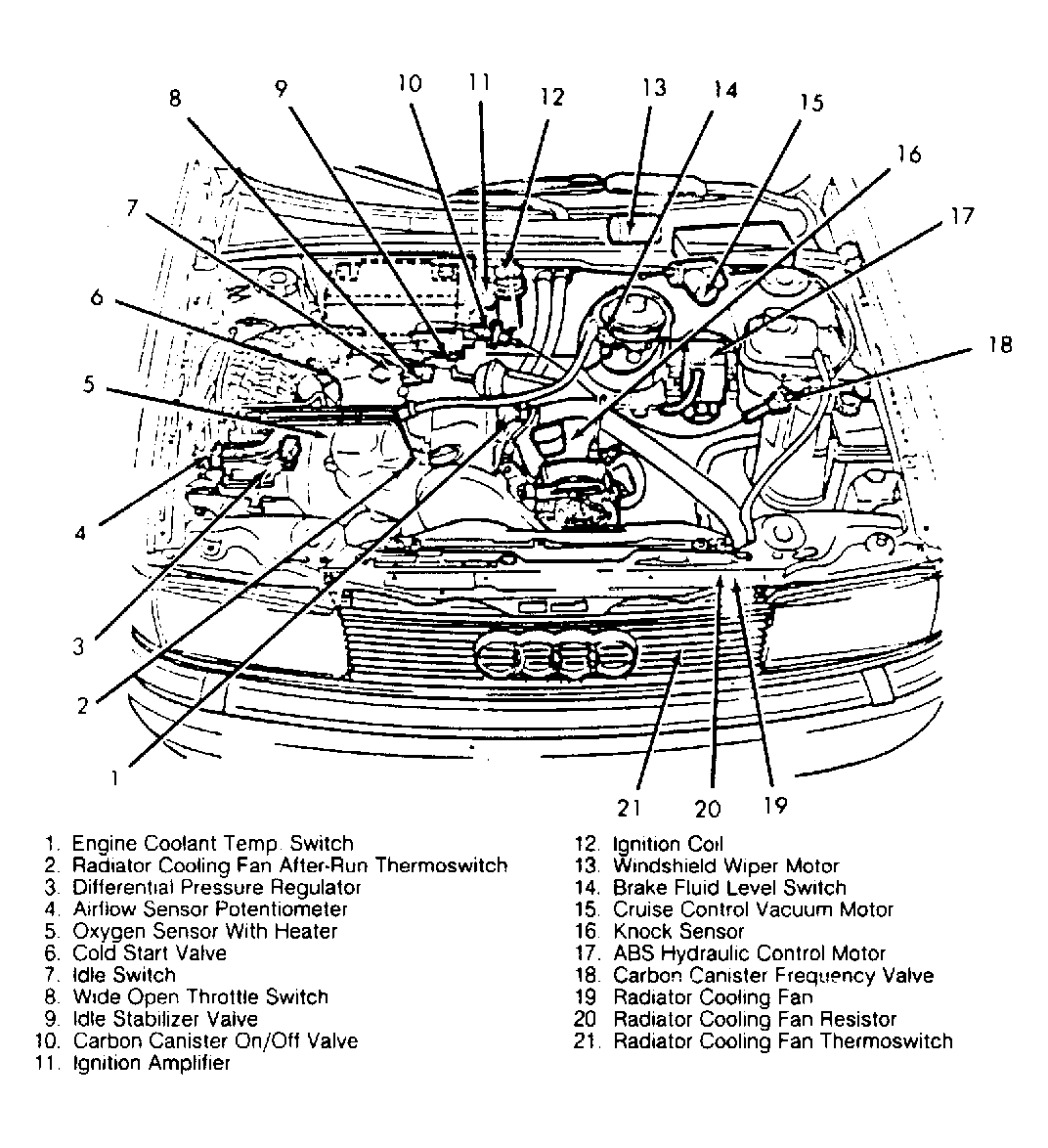

| Ignition Amplifier | On ignition coil bracket. See Figure . |
| Instrument Panel Light Booster | Behind left front of center console. |
| Instrument Panel Voltage Regulator | On right rear of instrument panel. |
| Radiator Cooling Fan Resistor | Behind left side of grille. See Figure . |
