Wiring Diagrams

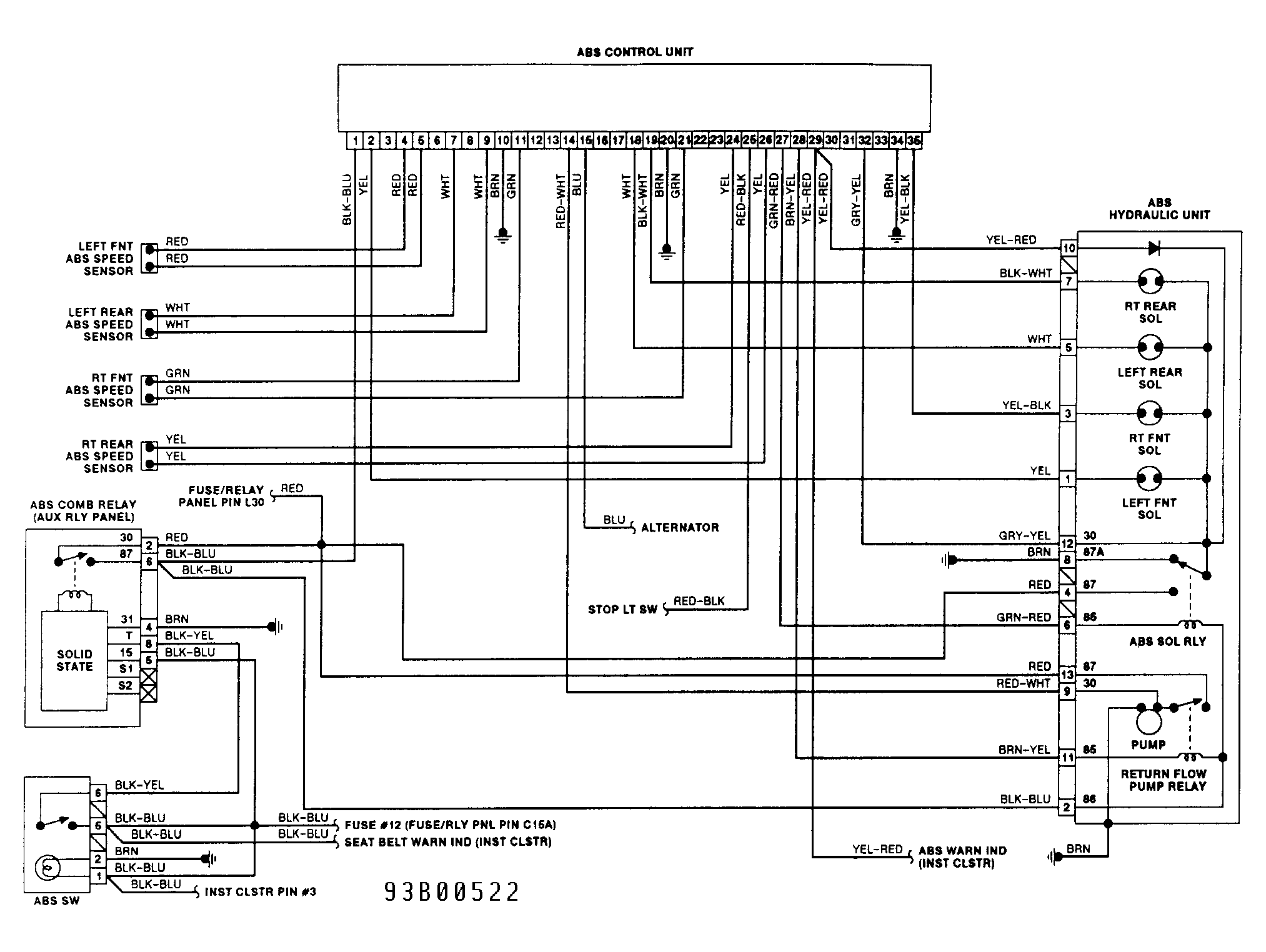

Fig 1: Audi (1992) ABS Wiring Diagram (80)

G93B00522

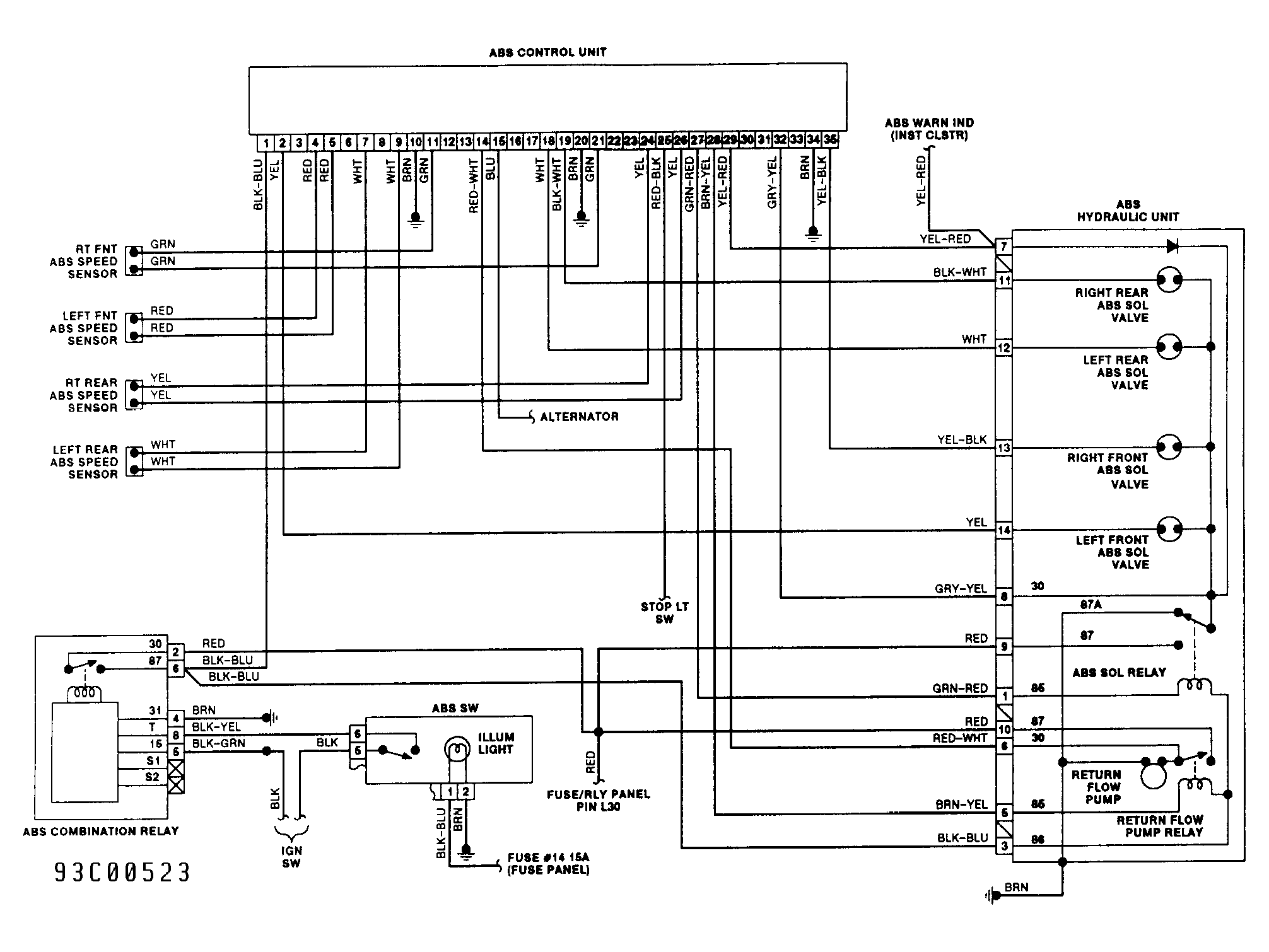

Fig 2: Audi (1992) ABS Wiring Diagram (100)

G93C00523

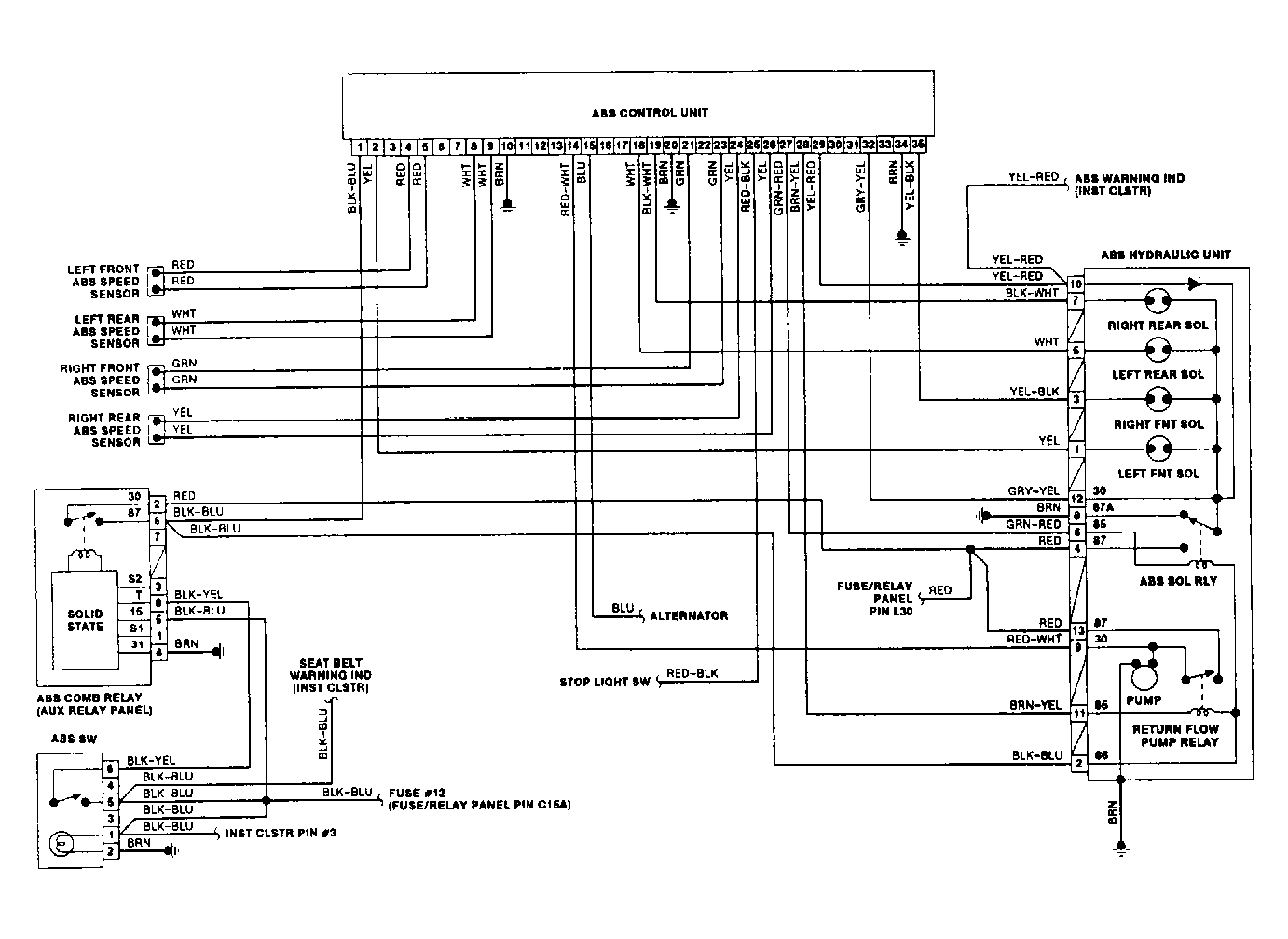

Fig 3: Audi (1990-91) ABS Wiring Diagram (80 & 90)

G90I08745

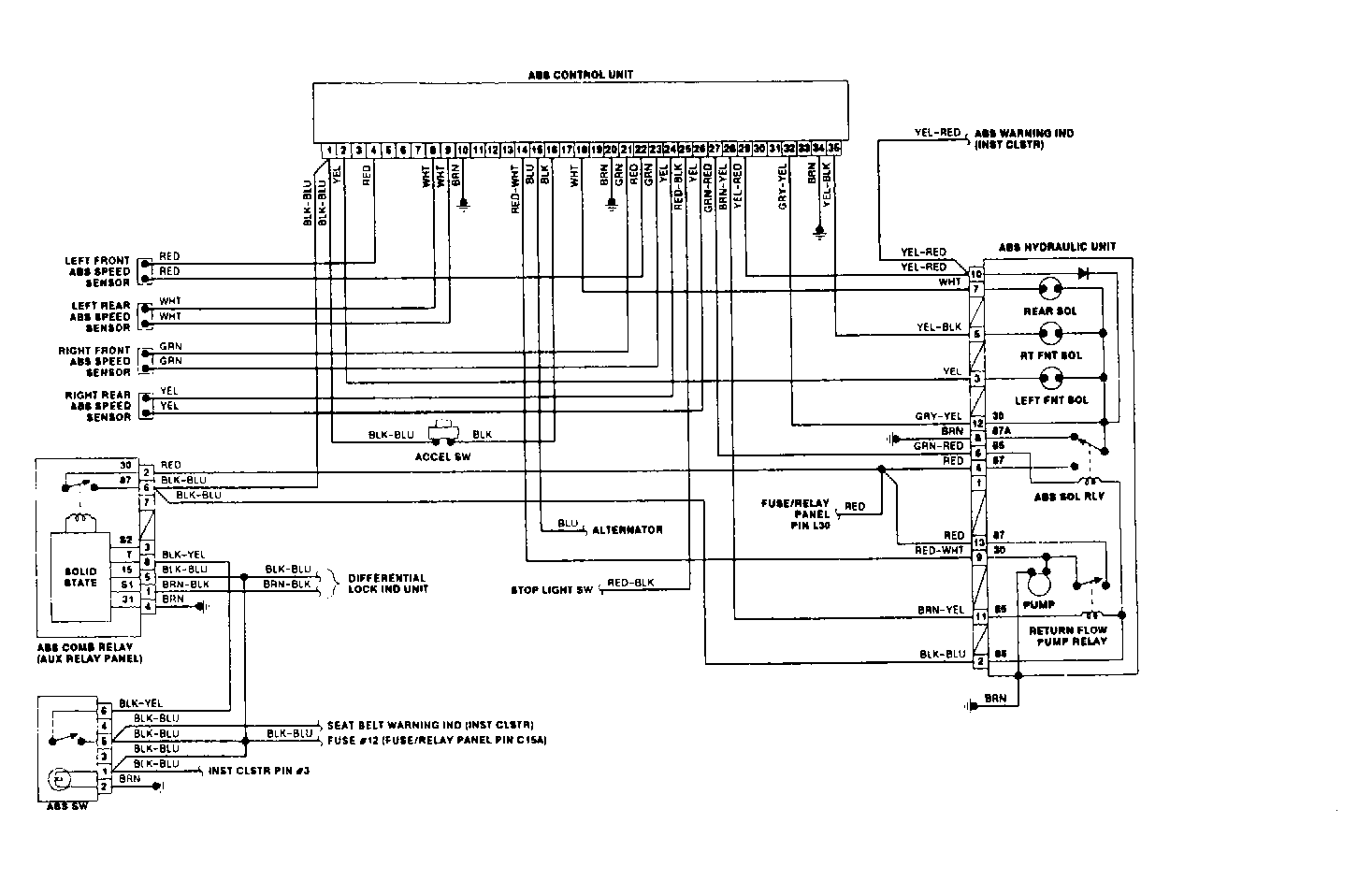

Fig 4: Audi (1990-91) ABS Wiring Diagram (100/200 & 200 Turbo)

G90A08746
