Test A: No Supply To Control Unit
Test A: No Supply To Control Unit

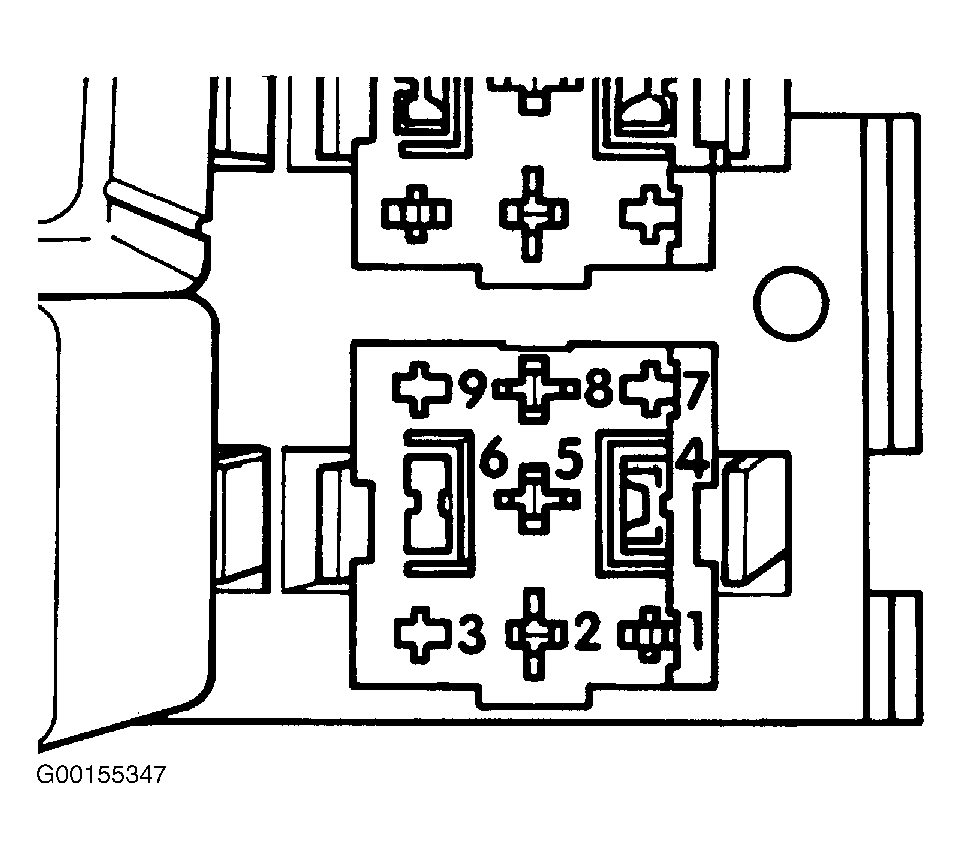

Fig 1: Identifying Control Unit Terminals
Courtesy of AUDI OF AMERICA, INC.

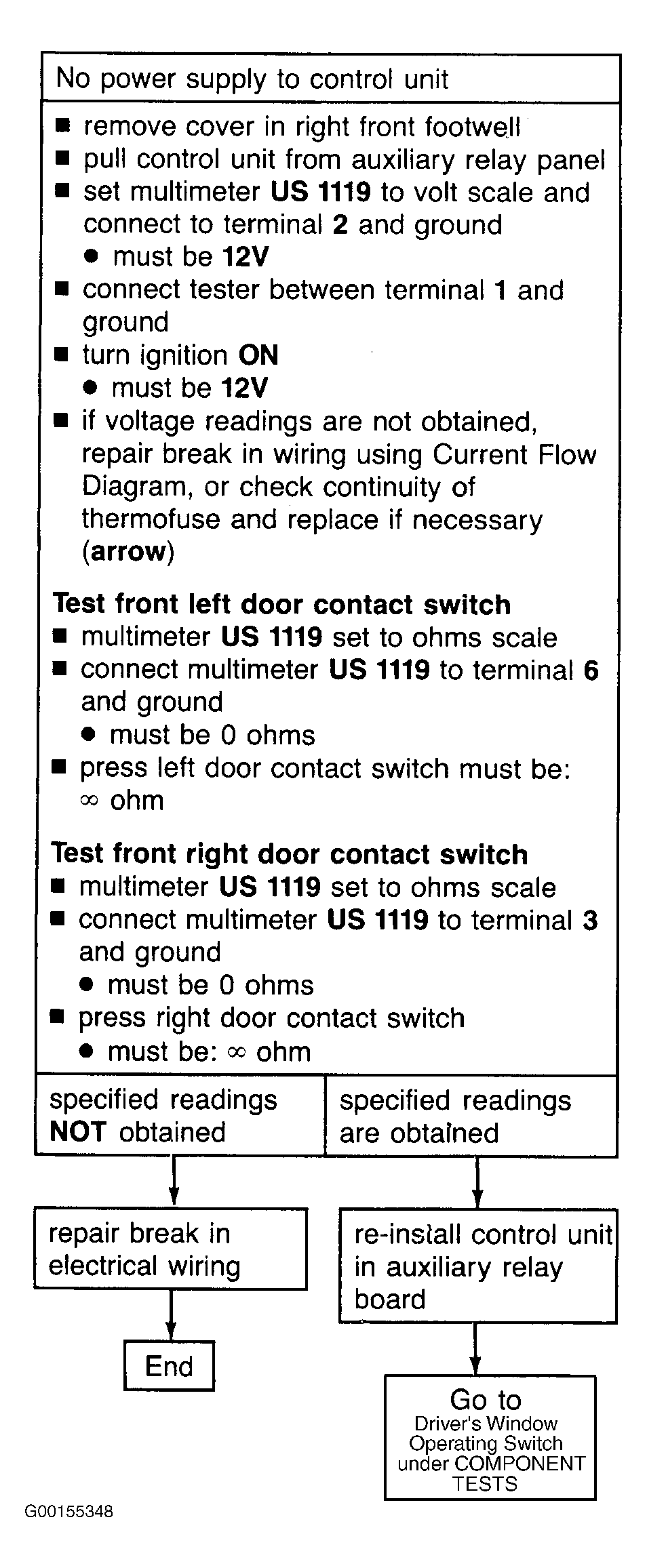

Fig 2: Test A: No Power Supply To Control Unit
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
