Home >> Audi >> 1990 >> V8 Quattro >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Removal & Installation >> Window Regulator Safety Switch

Window Regulator Safety Switch

  1. Remove switch and console from door trim panel.
  2. Pull off terminal connector.
  3. Carefully pry out switch by inserting small screwdriver into recess and pushing toward center of switch. See Fig 1 .

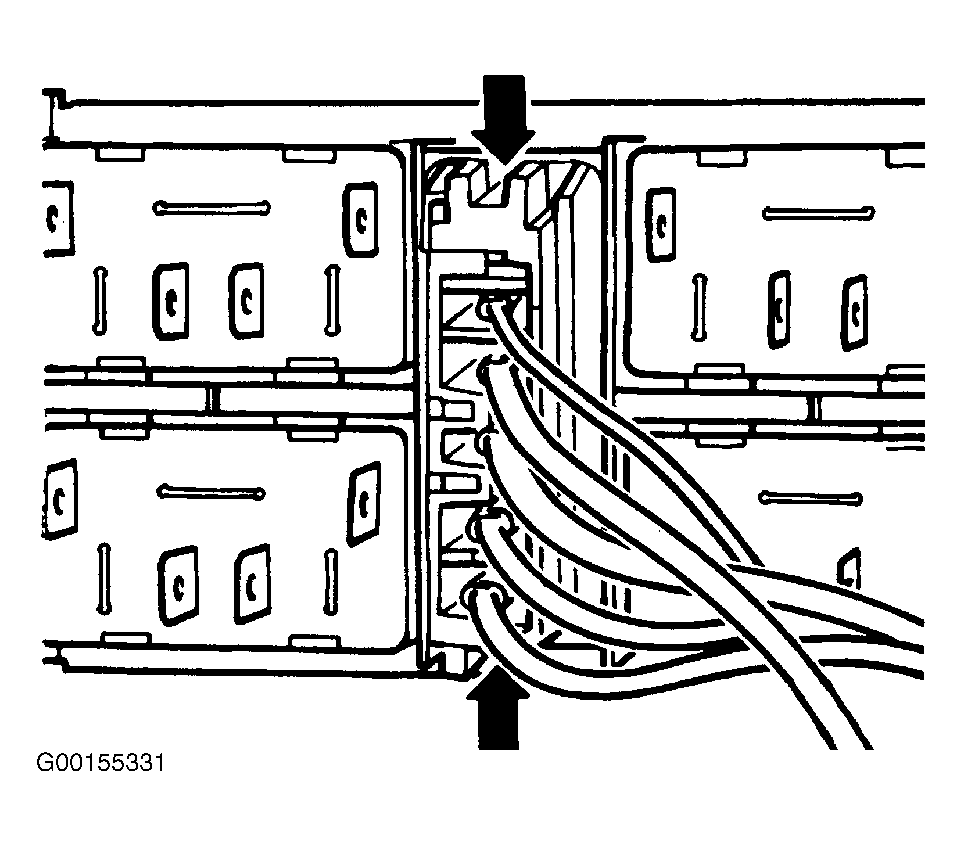

Fig 1: Removing & Installing Window Regulator Safety Switch
G00155331Courtesy of AUDI OF AMERICA, INC.
