Window Regulator Drive Cable Assembly/Motor: Installation

1. Remove plastic over from new regulator motor. See Fig 1 . Three vaned plastic drive gear and gasket remain on motor.
2. Carefully lift vaned drive from new regulator motor. See Fig 2 . Black rubber plate and ring gear stay inside motor housing.
   CAUTION: Vanes must fit securely into drive cable housing.

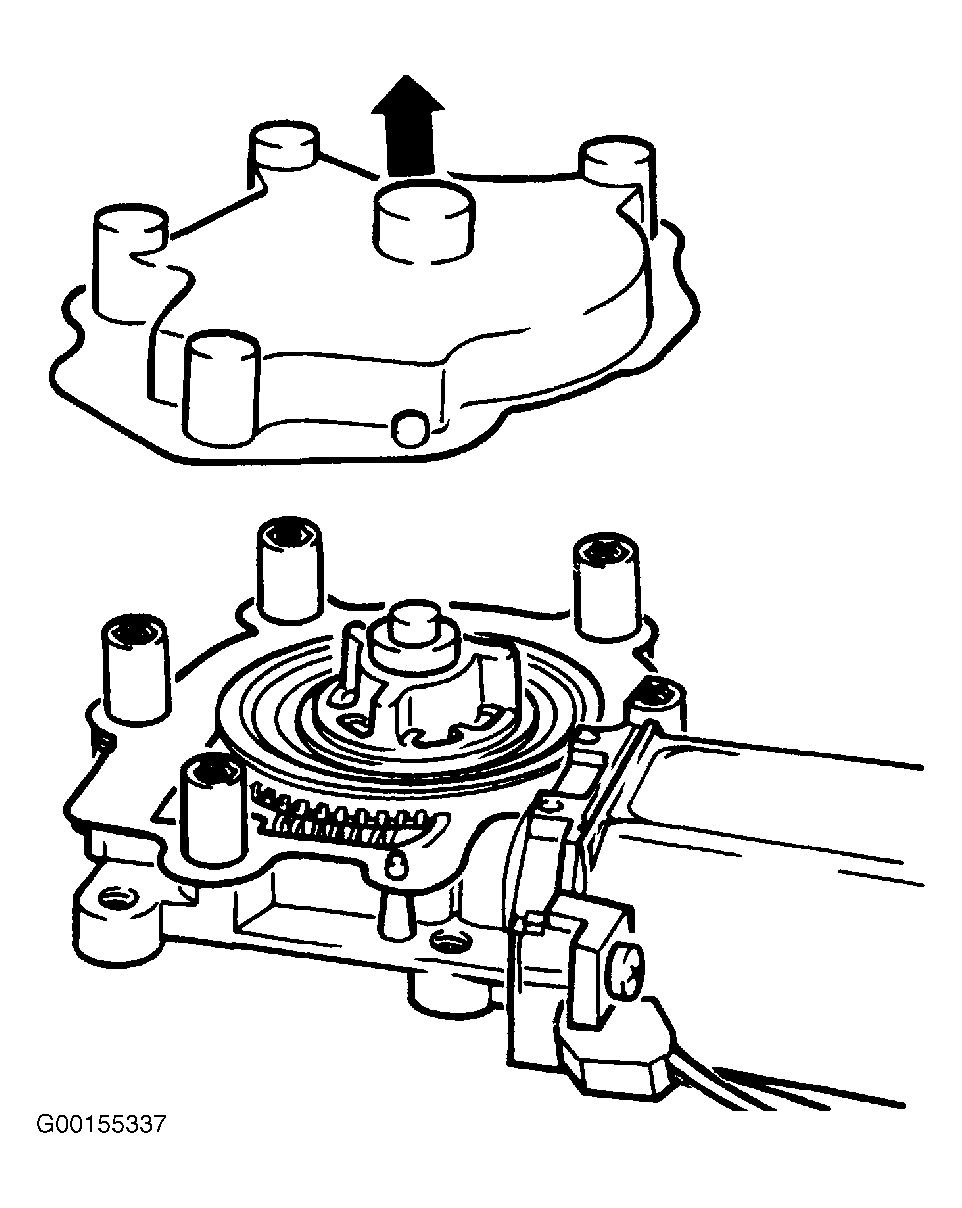

   Fig 1: Removing Plastic Dust Cover From New Regulator

   Courtesy of AUDI OF AMERICA, INC.

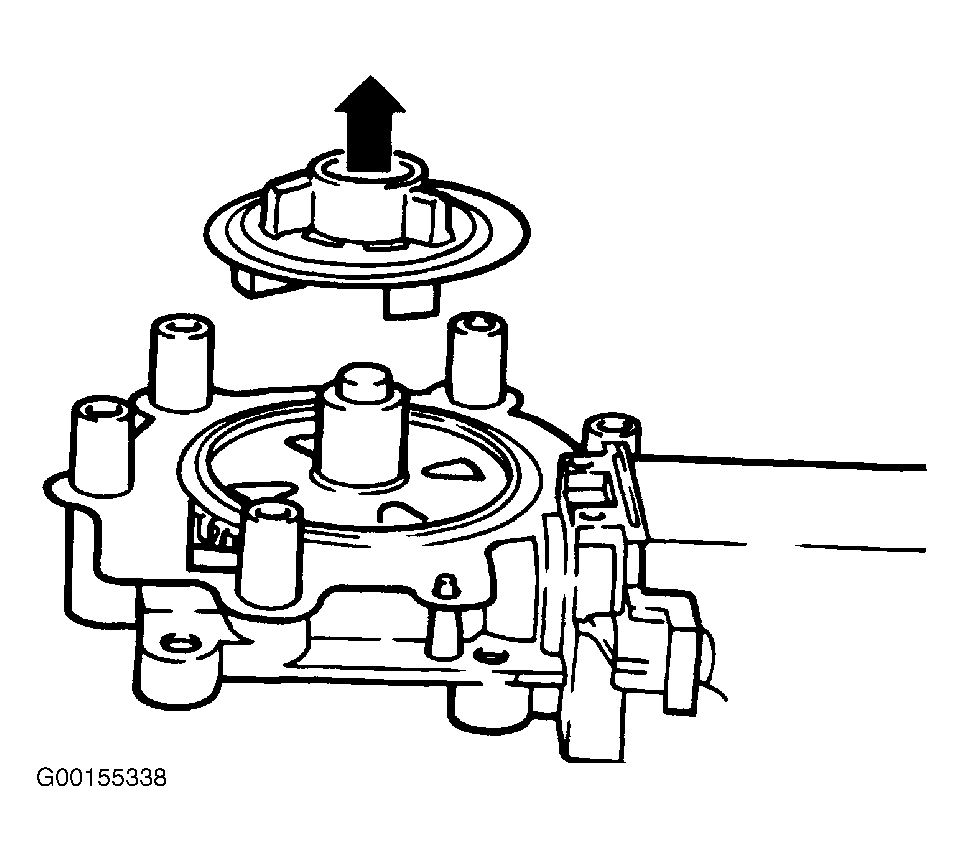

   Fig 2: Lifting Vaned Drive Gear From New Regulator Motor

   Courtesy of AUDI OF AMERICA, INC.
3. Insert vaned drive gear into drive cable housing. See Fig 3 .

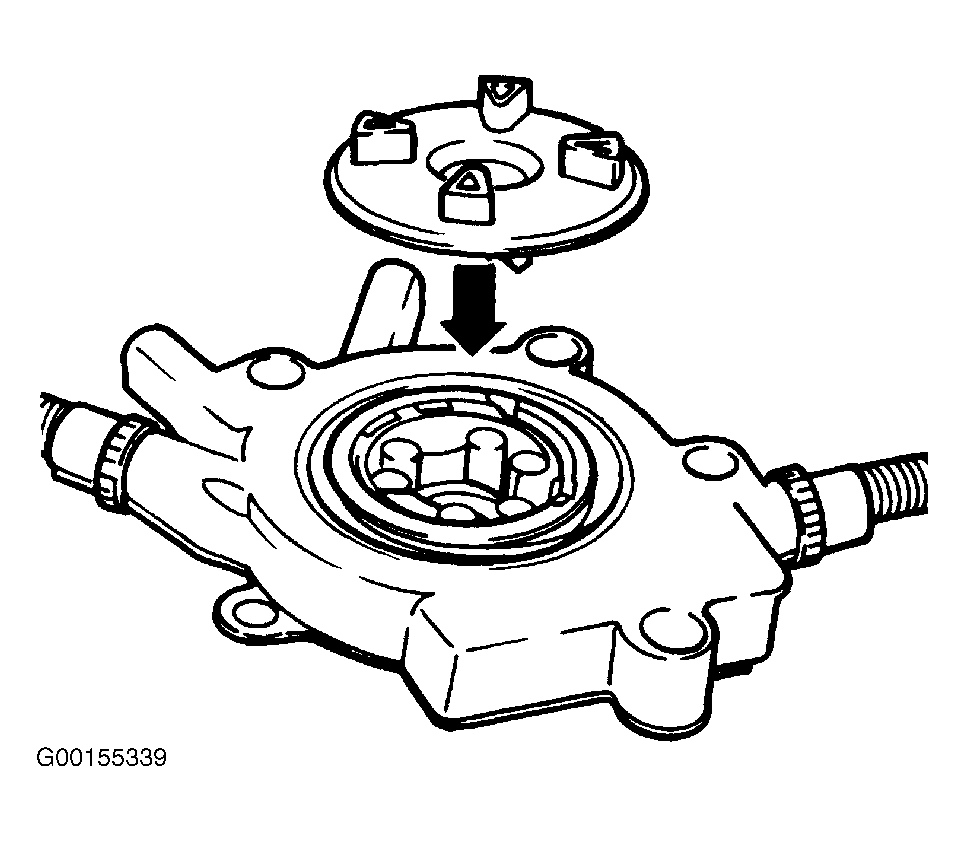

   Fig 3: Installing Vaned Gear Into Drive Cable Housing

   Courtesy of AUDI OF AMERICA, INC.
4. Install new regulator motor to drive cable assembly. See Fig 4 . Apply slight amount of grease to secure gasket when installing.

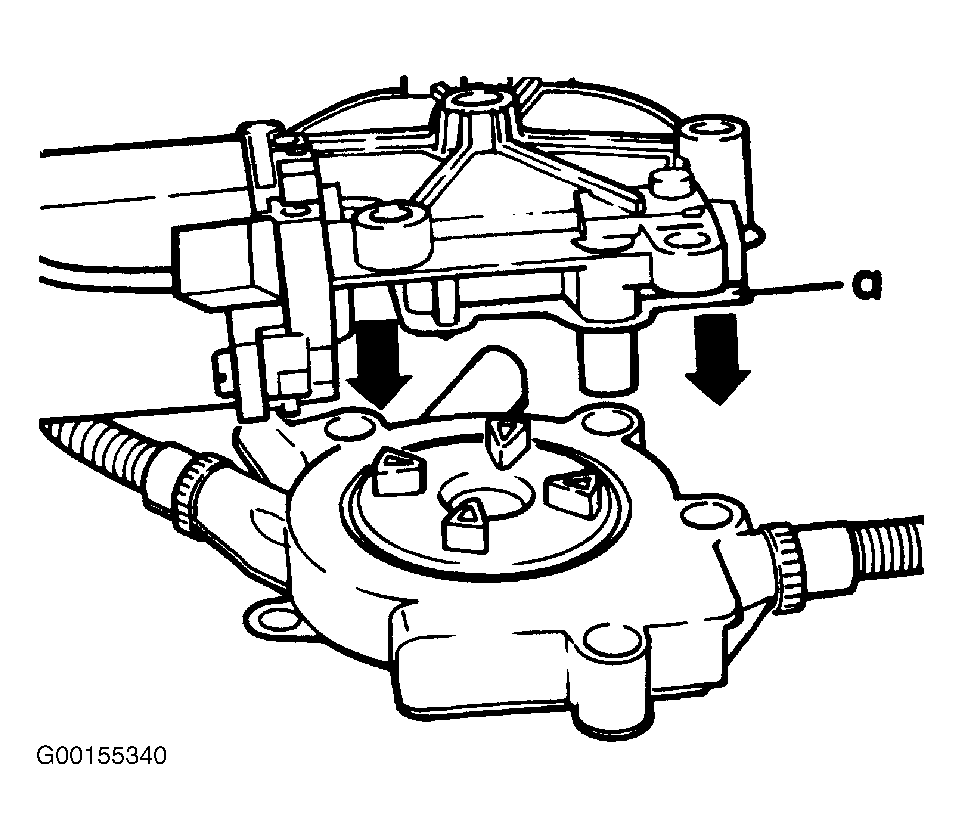

   Fig 4: Installing New Regulator Motor To Drive Cable Assembly (1 Of 2)

   Courtesy of AUDI OF AMERICA, INC.

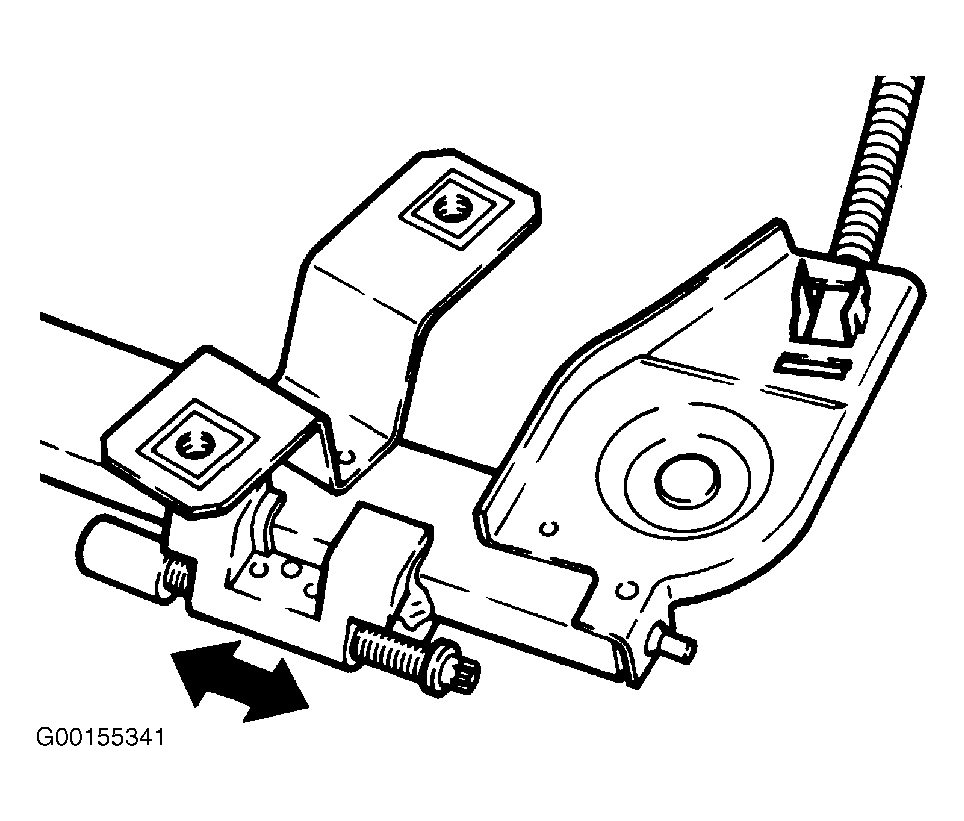

   Fig 5: Installing New Regulator Motor To Drive Cable Assembly (2 Of 2)

   Courtesy of AUDI OF AMERICA, INC.
5. If regulator and cable drive cannot be fitted together, move cable carrier slightly. See Fig 5 . Do not turn screw for upper window stop.
6. Install mounting bolts diagonally in order shown in illustration. See Fig 6 . See TORQUE SPECIFICATIONS  .
7. Cut off excess length of tie-wraps to prevent getting caught in window regulator.
8. Remove rubber hex bushings from old motor and reinstall on new motor. See Fig 7 .
NOTE: Before installing window regulator into vehicle, test function by connecting window regulator to 12-volt power supply, and operate in both directions.
9. Install window regulator and door panel.
10. Test window for proper function.

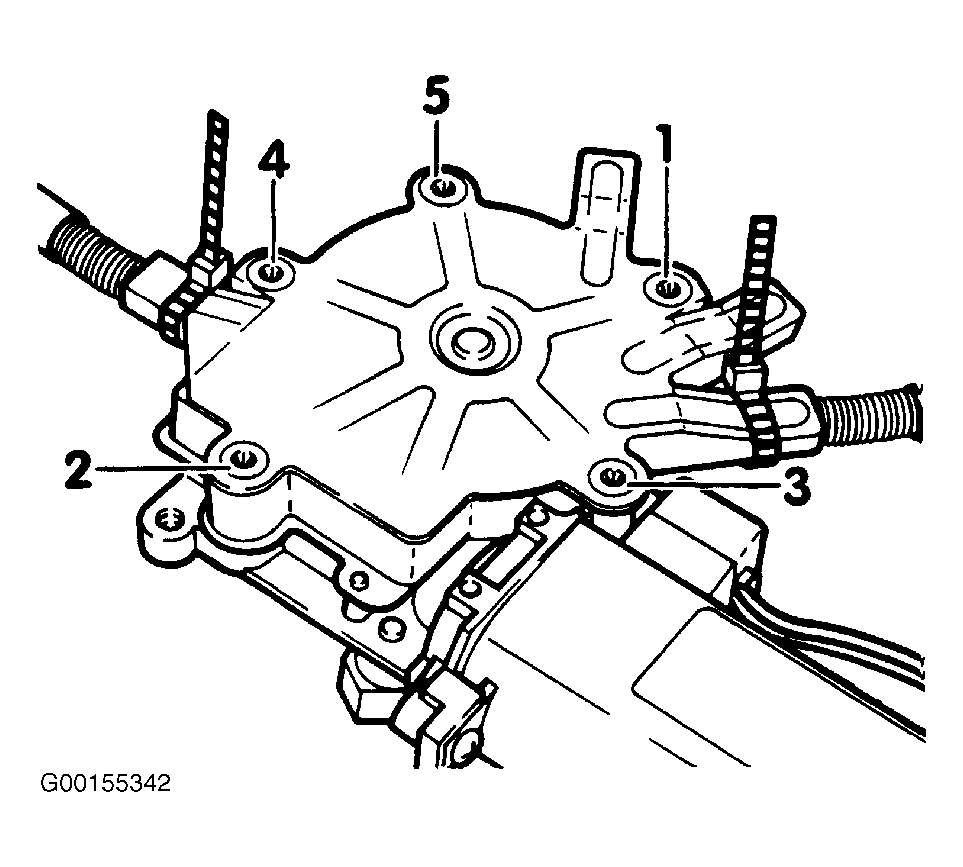

Fig 6: Installing Mounting Bolts

Courtesy of AUDI OF AMERICA, INC.

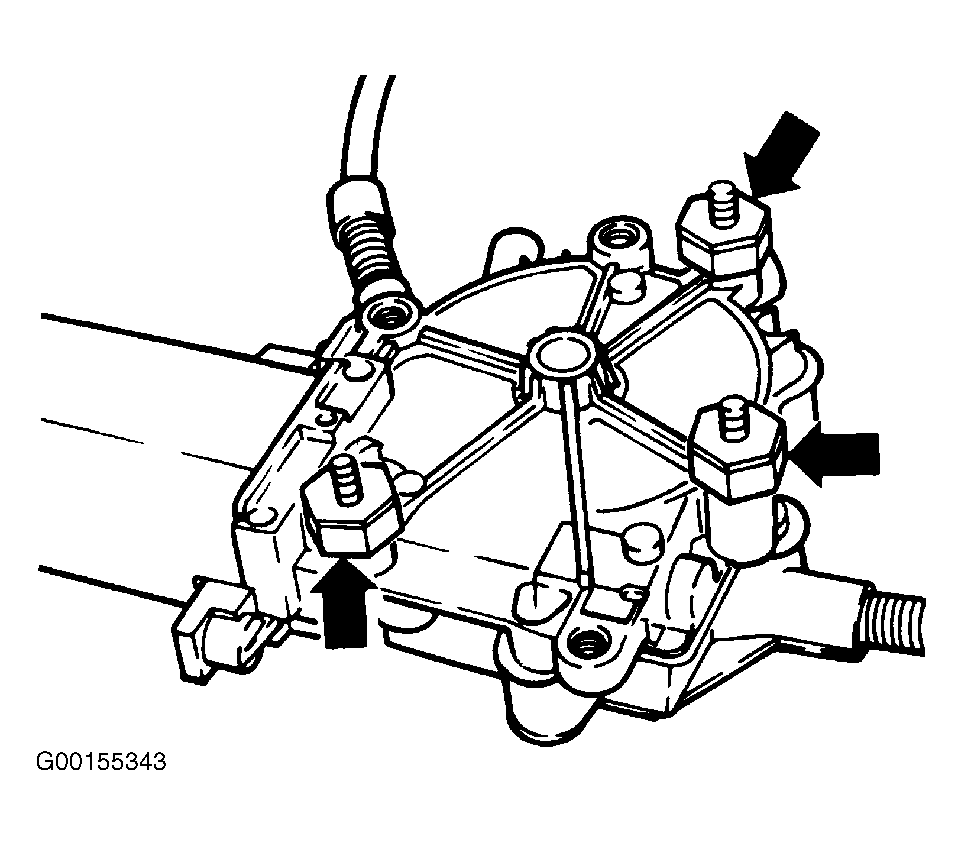

Fig 7: Installing Rubber Hex Bushings From Old Motor To New Motor

Courtesy of AUDI OF AMERICA, INC.
