Service Indicator & Warning Lights: Notes

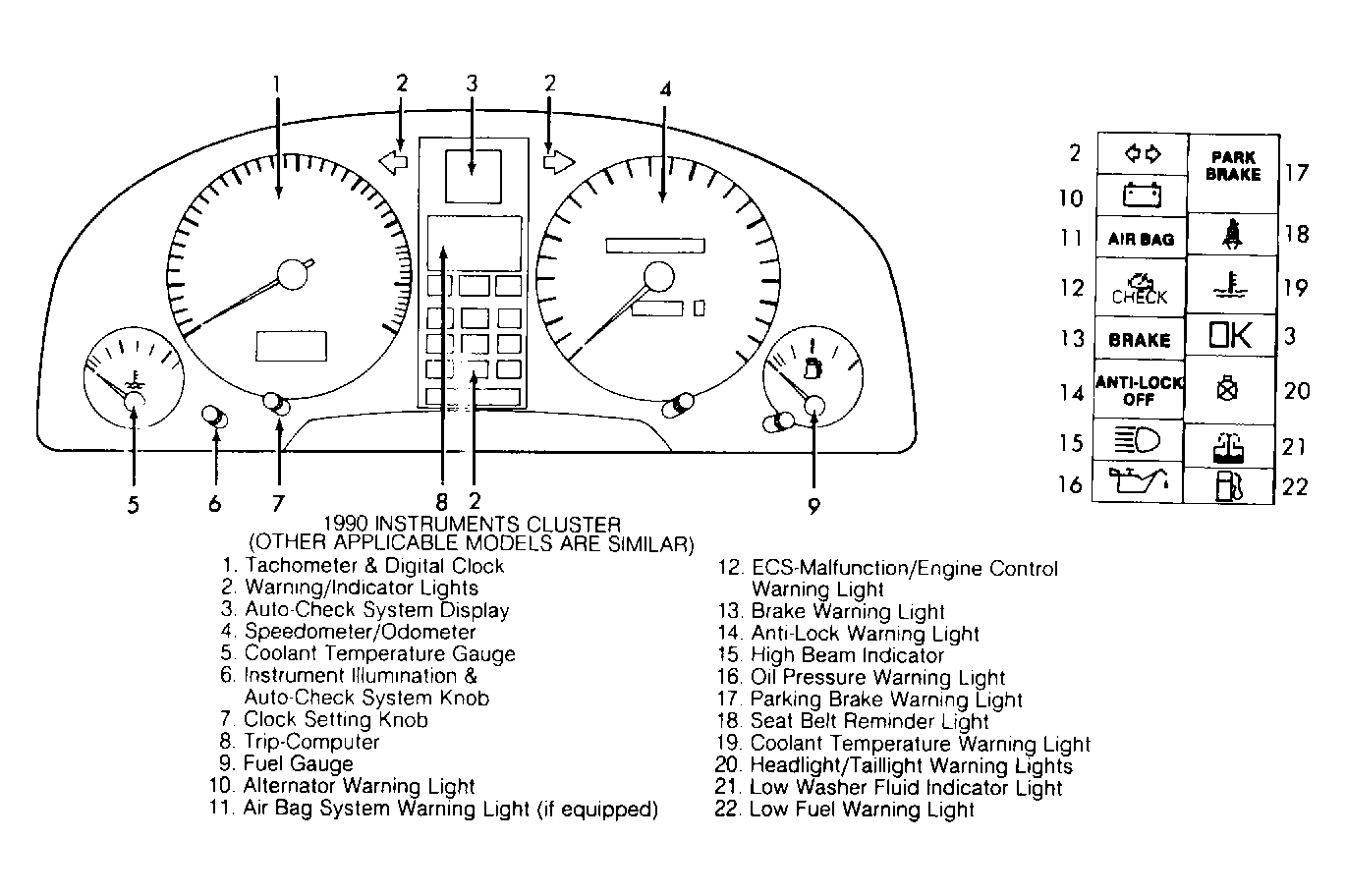

Fig 1: Dash Gauges & Warning Lights

G90B01156

Courtesy of AUDI OF AMERICA, INC.
