Wiring Diagrams

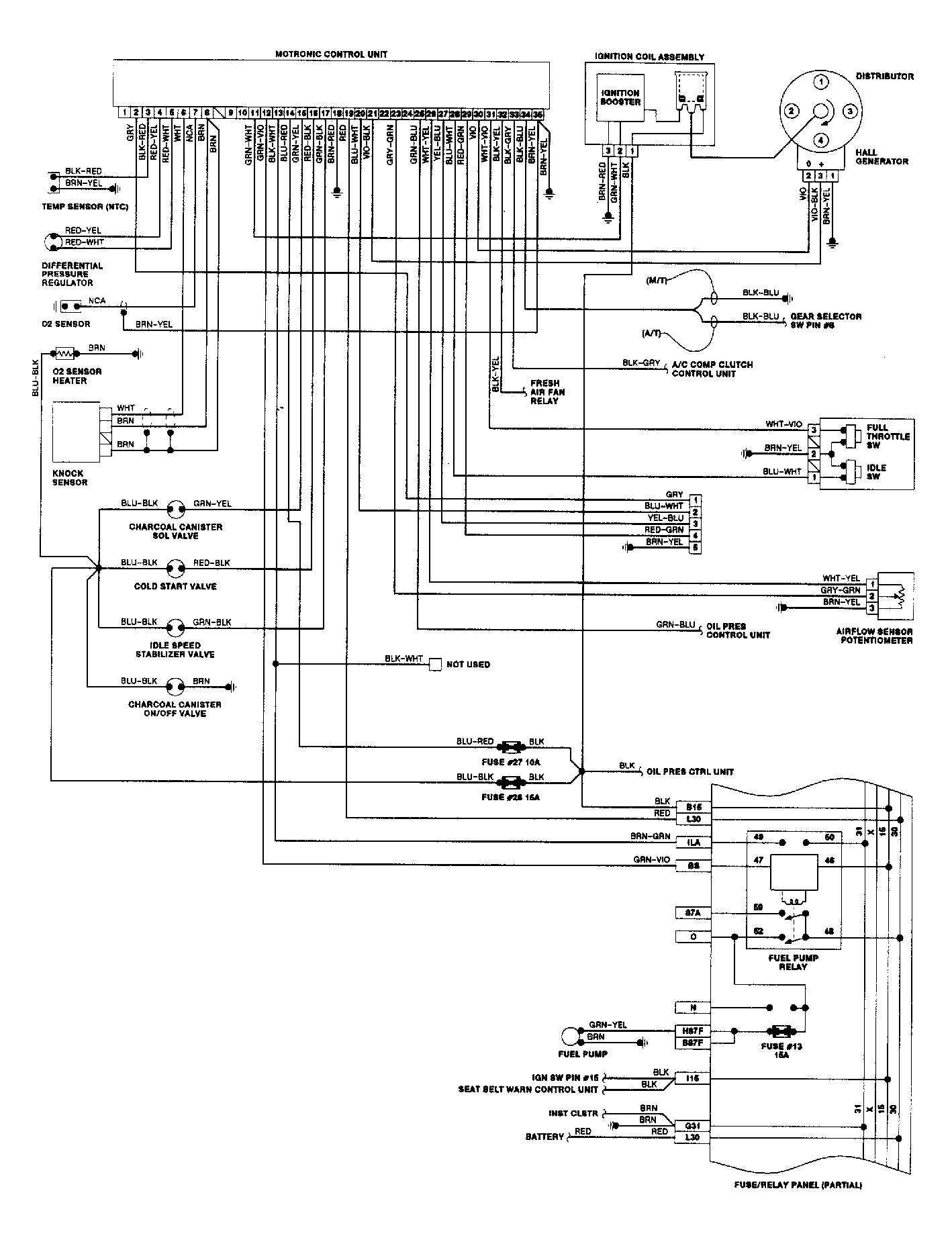

Fig 1: Audi 80 2.0L 4-Cylinder Wiring Diagram
G90A21659

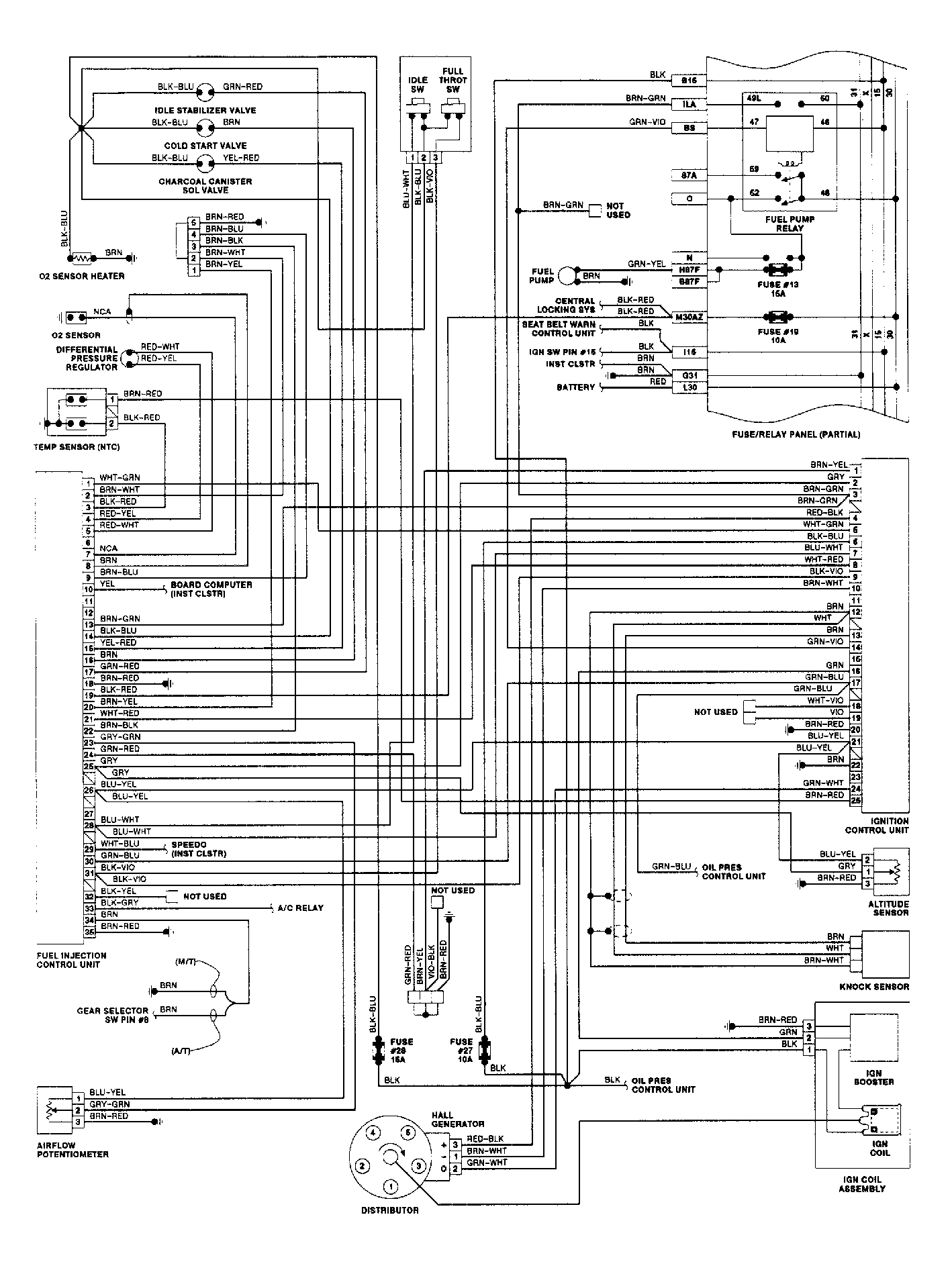

Fig 2: Audi 90 2.3L 5-Cylinder Wiring Diagram
G90D21660

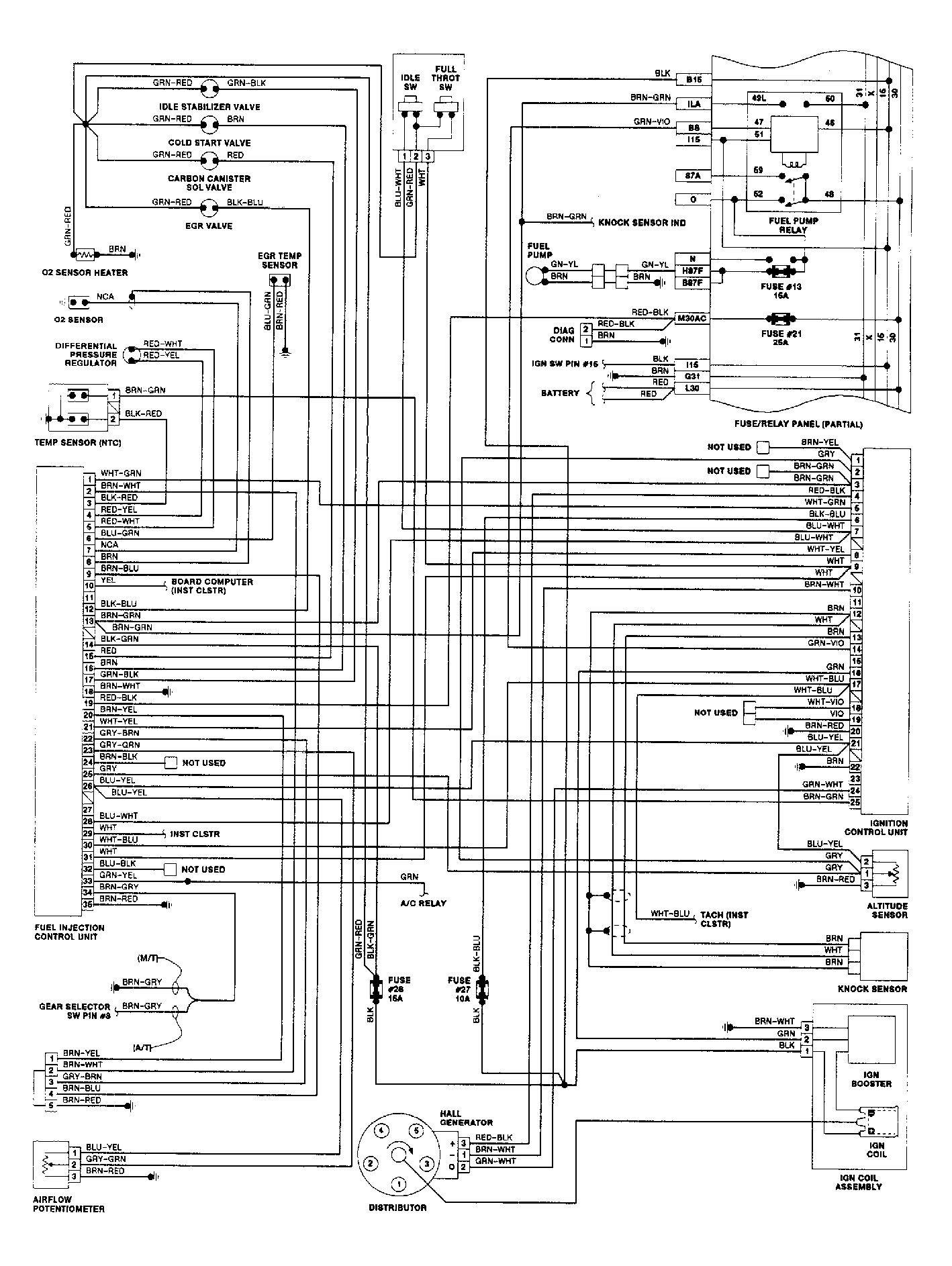

Fig 3: Audi 100 2.3L 5-Cylinder Wiring Diagram
G90E21661

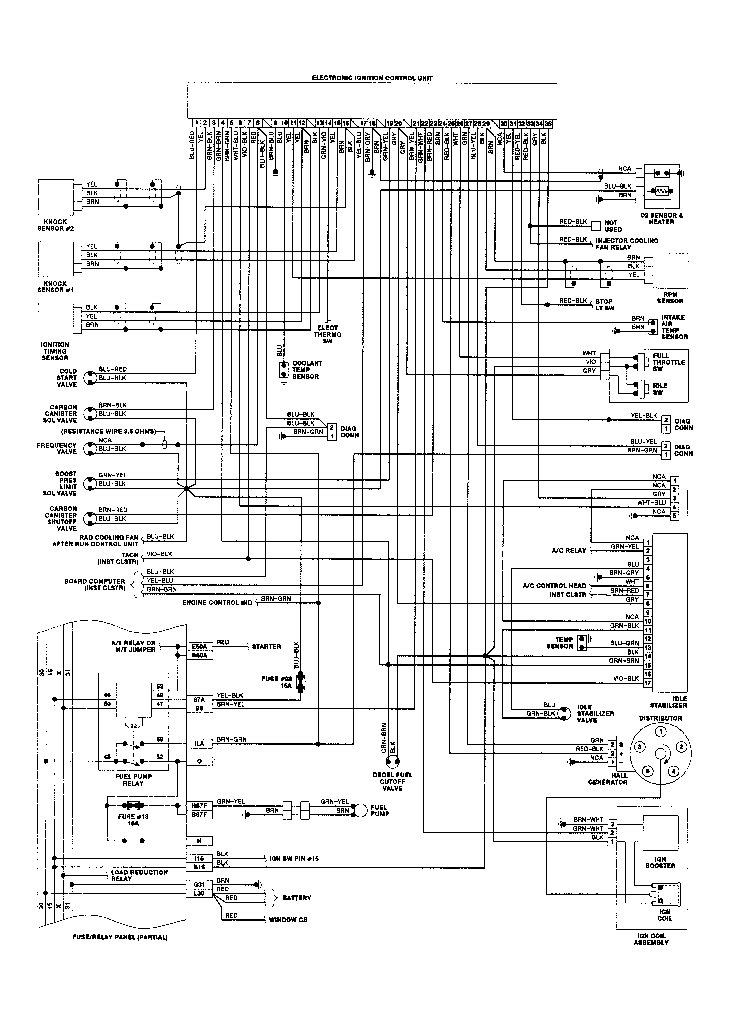

Fig 4: Audi 200 2.2L 5-Cylinder Turbo Wiring Diagram
G90F21662
