Second Brake Band

  1. Adjust brake band with transaxle in a horizontal position only. Loosen adjustment screw lock nut. Tighten brake band adjustment screw to 90 INCH lbs. (10 N.m).
  2. Loosen adjustment screw again, then tighten to 45 INCH lbs. (5 N.m). Back off screw 2 turns on 087 or 2 1/2 turns on 089 transaxles. Tighten lock nut to 15 ft. lbs. (20 N.m).

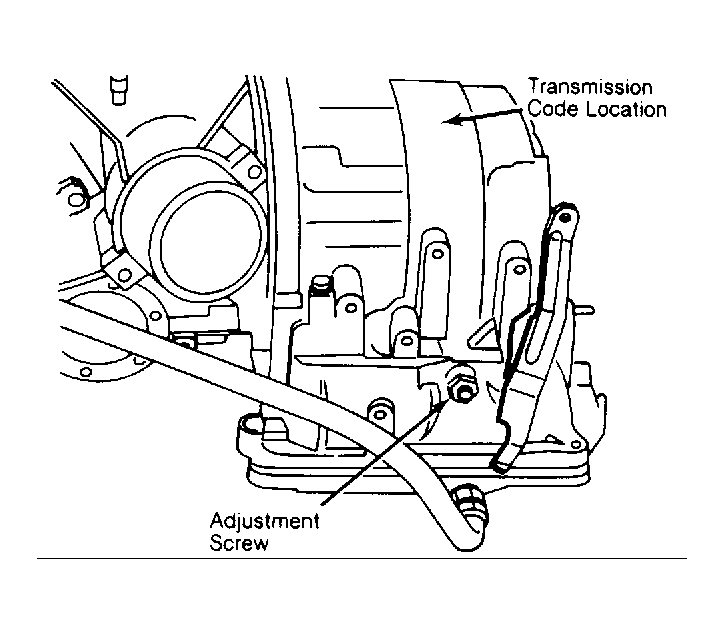

Fig 1: Brake Band Adjustment
G82683Courtesy of AUDI OF AMERICA, INC.
