Wiring Diagrams

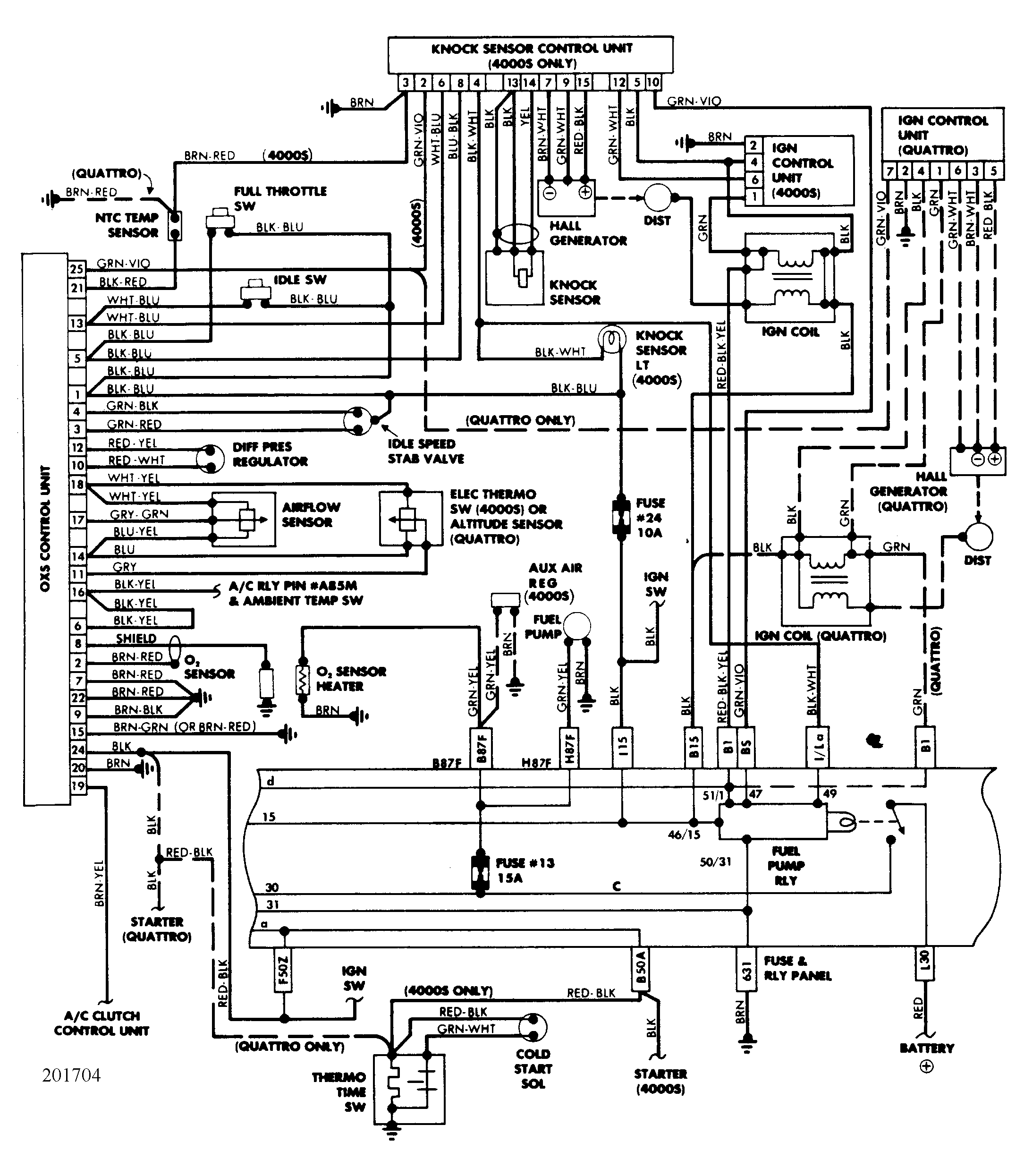

Fig 1: Audi 4000S & 4000S Quattro CIS-E Wiring Diagram

G201704

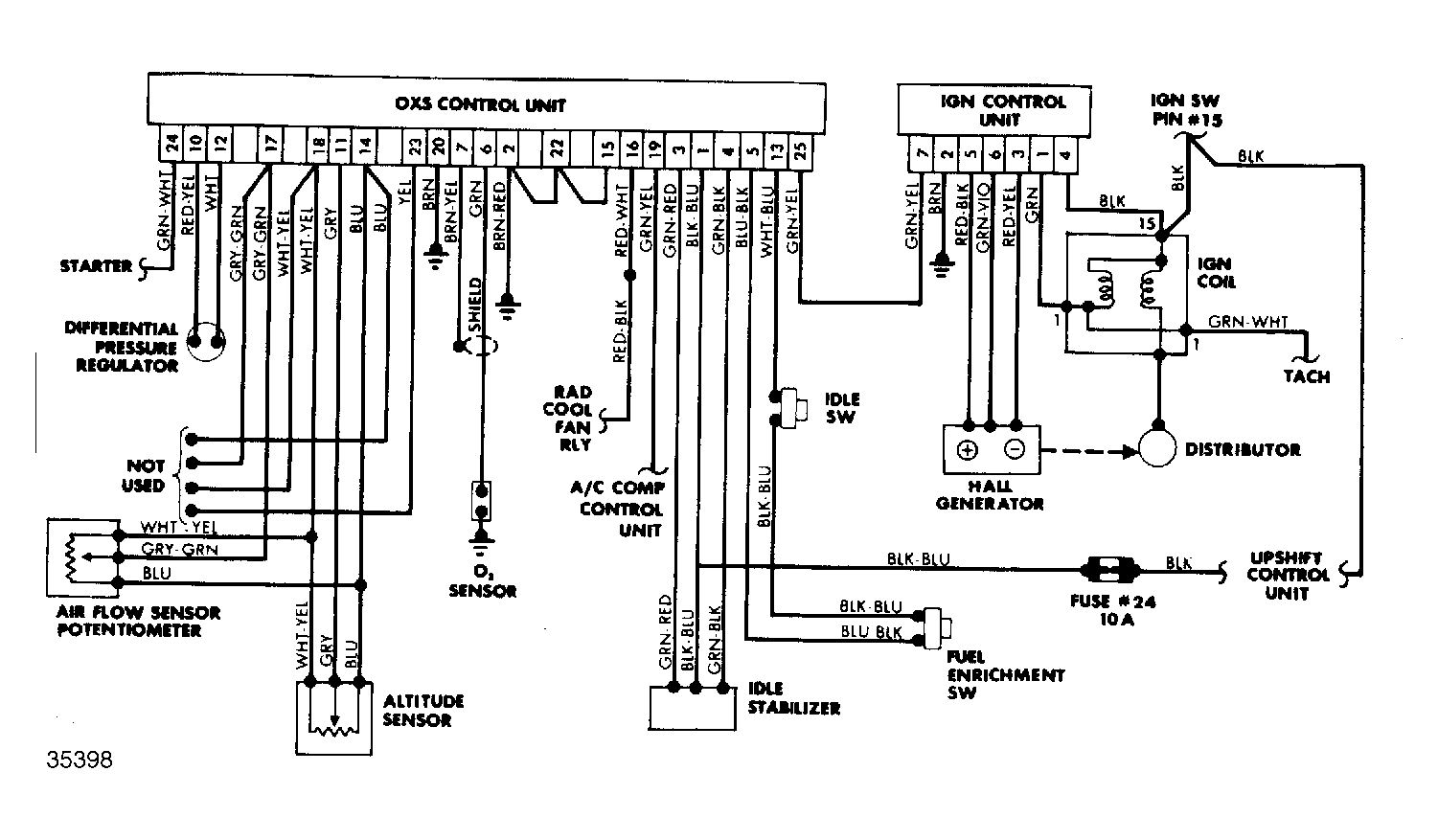

Fig 2: Audi 5000S CIS-E Wiring Diagram

G35398
