Steering Columns: Overhaul: Reassembly

Examine race and replace if excessively worn. Slide steering shaft back into column tube, then replace support ring, spring, and use a new retaining ring to lock in place.

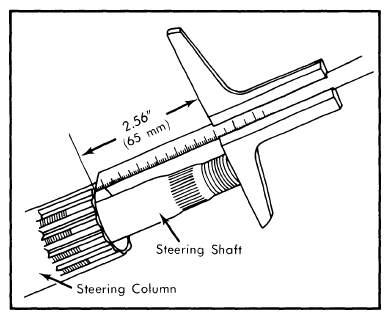

Fig 1: Steering Shaft Installation Measurement
G09358228Courtesy of AUDI OF AMERICA, LLC
