Removal & Installation: Installation

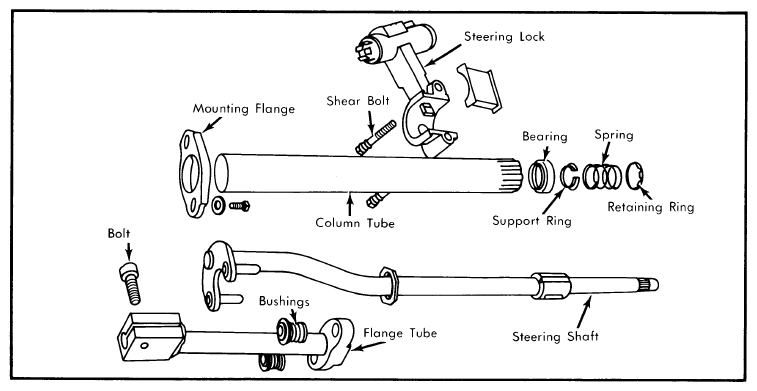

- Place column assembly in vehicle. Install steering lock shear bolts finger tight and check operation of lock. Bolt mounting flange onto bracket.

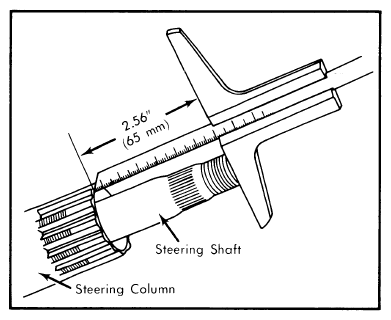

- Connect ignition wiring. Install flange tube over steering column pins and press on pinion shaft. Hold flange tube and shaft together with pliers and check length of shaft protruding from upper end of column. Adjust by moving flange tube on pinion shaft until distance is 2.56" (65 mm). See Fig 1 .
Courtesy of AUDI OF AMERICA, LLC
- Tighten shear bolts until heads break. Install switch assembly flush with dashboard. With wheels in straight position, turn signal lever in middle position and cancelling lug to right, install steering wheel. Tighten steering wheel nut to 30 ft.lbs. (4.1 mkg). Gap between wheel and switch assembly should be 1/8" (3 mm). Adjust if necessary and tighten flange clamp bolt on pinion shaft.
Courtesy of AUDI OF AMERICA, LLC
