5000 Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Diagram
Wiring Diagrams: Wiring Diagram

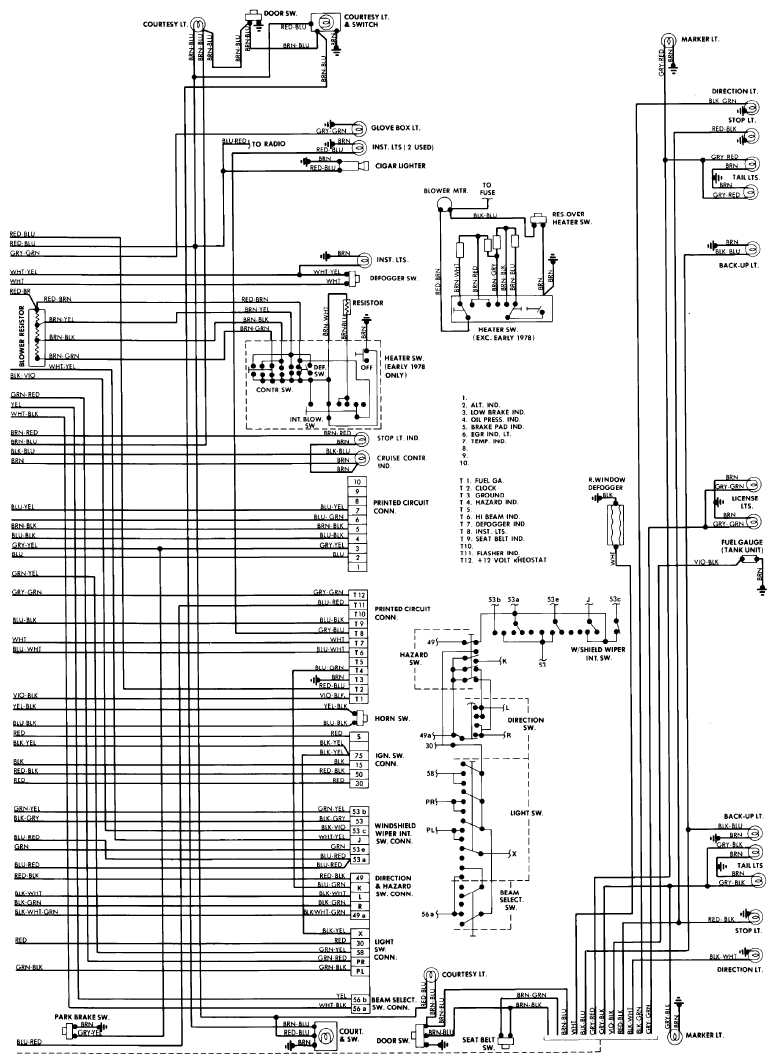

Fig 1: Wiring Diagram - 5000 (1 of 4)
Courtesy of AUDI OF AMERICA, LLC

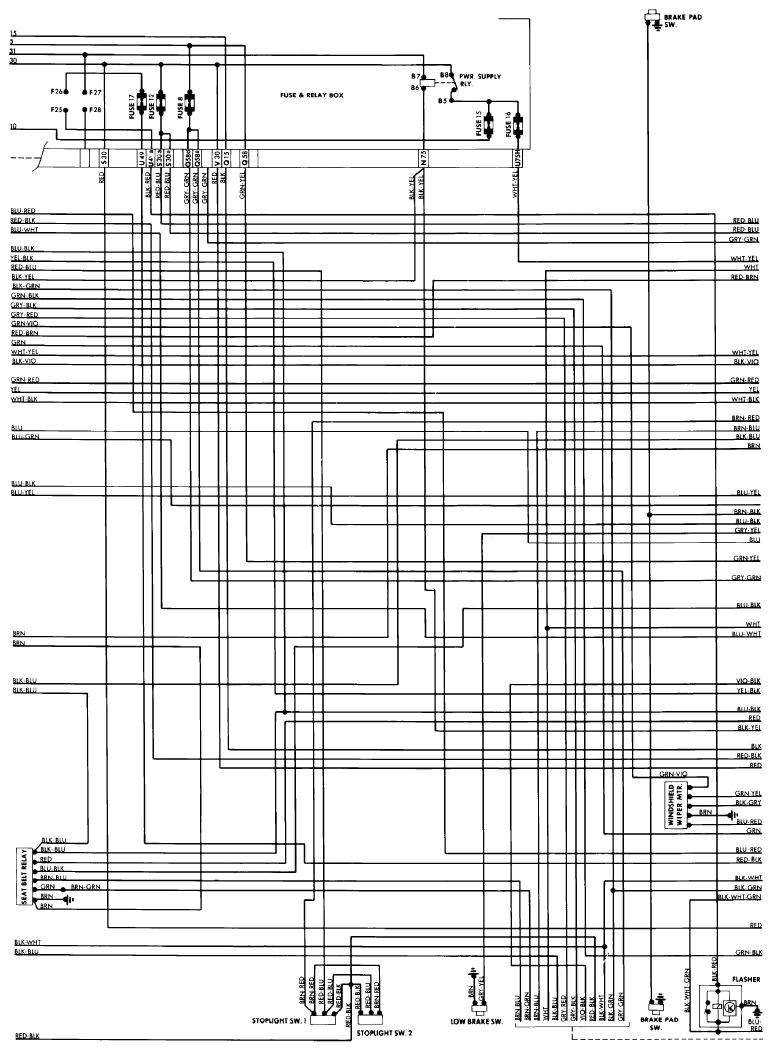

Fig 2: Wiring Diagram - 5000 (2 of 4)
Courtesy of AUDI OF AMERICA, LLC

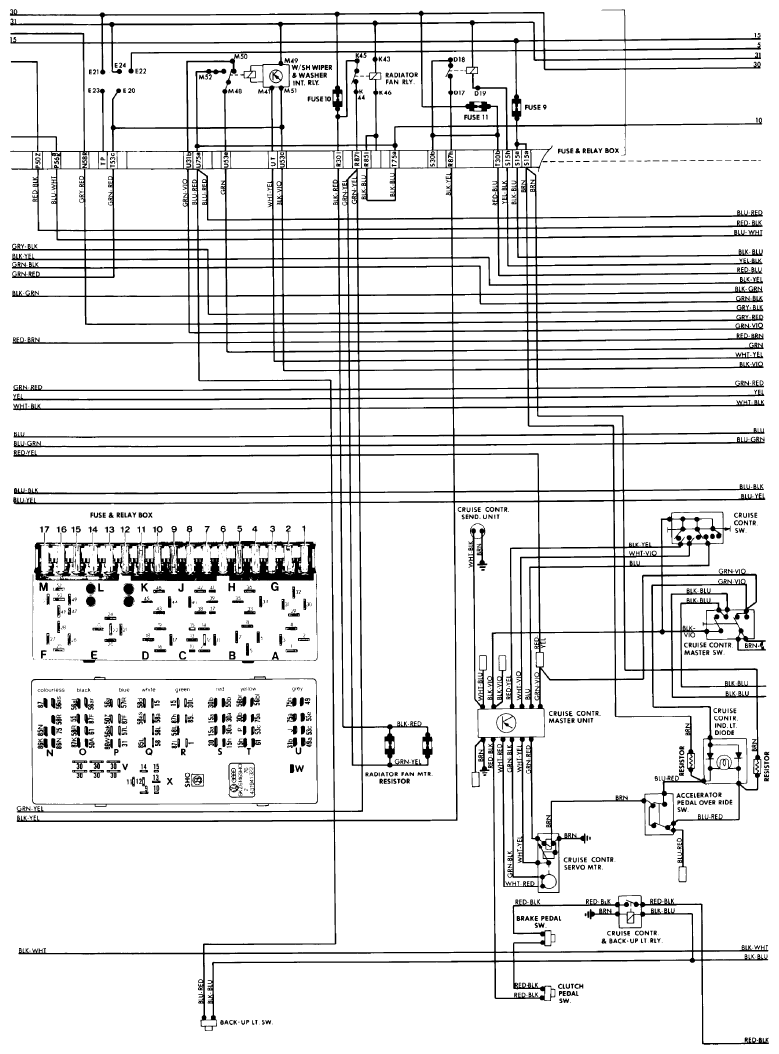

Fig 3: Wiring Diagram - 5000 (3 of 4)
Courtesy of AUDI OF AMERICA, LLC

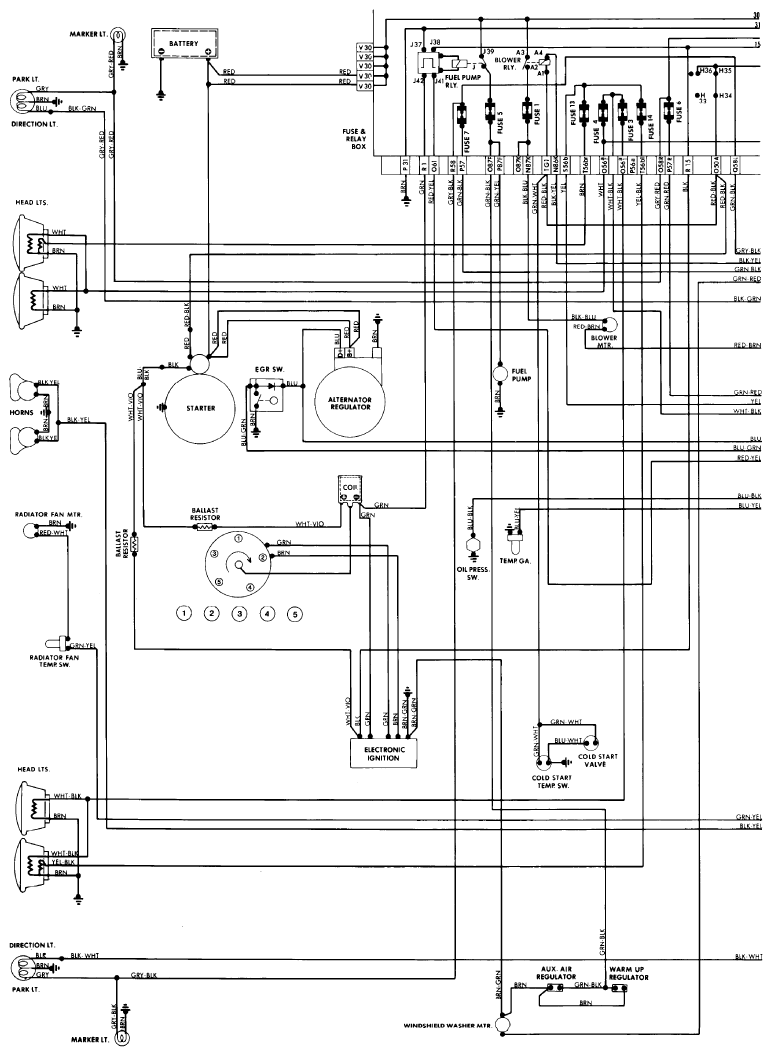

Fig 4: Wiring Diagram - 5000 (4 of 4)
Courtesy of AUDI OF AMERICA, LLC
