Repair and Diagnosis: Transmission: Clutches: Description
Clutch is of the single plate dry disc type, using a diaphragm type pressure plate and a pre-lubricated clutch release bearing. Clutch is cable actuated.

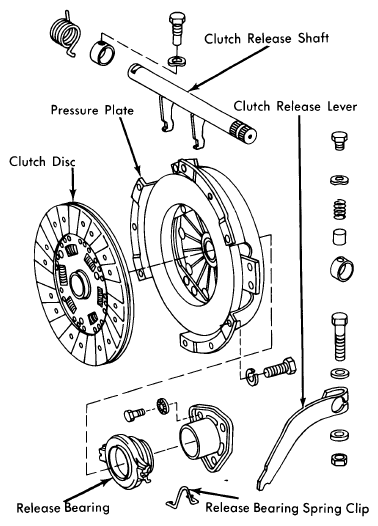

Fig 1: Exploded View of Audi TOOLS Clutch Assembly
