Audi
>>
1973
>>
Fox Not Available, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Diagrams
Wiring Diagrams

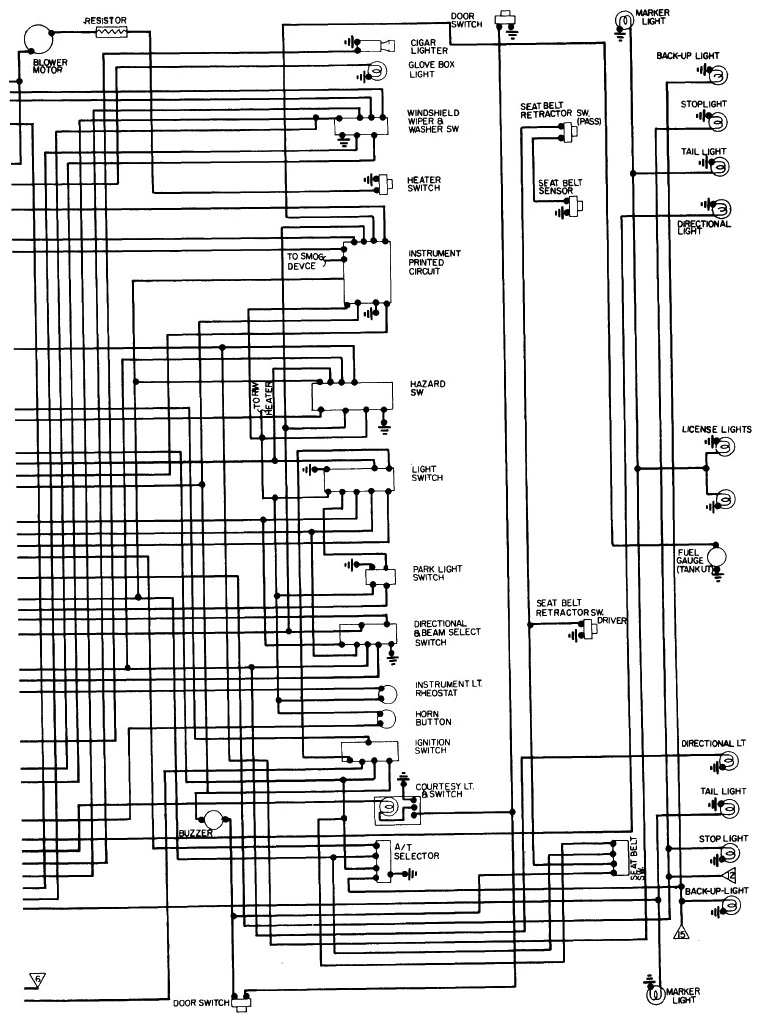

Fig 1: Wiring Diagram - Fox (1 Of 2)
Courtesy of AUDI OF AMERICA, LLC

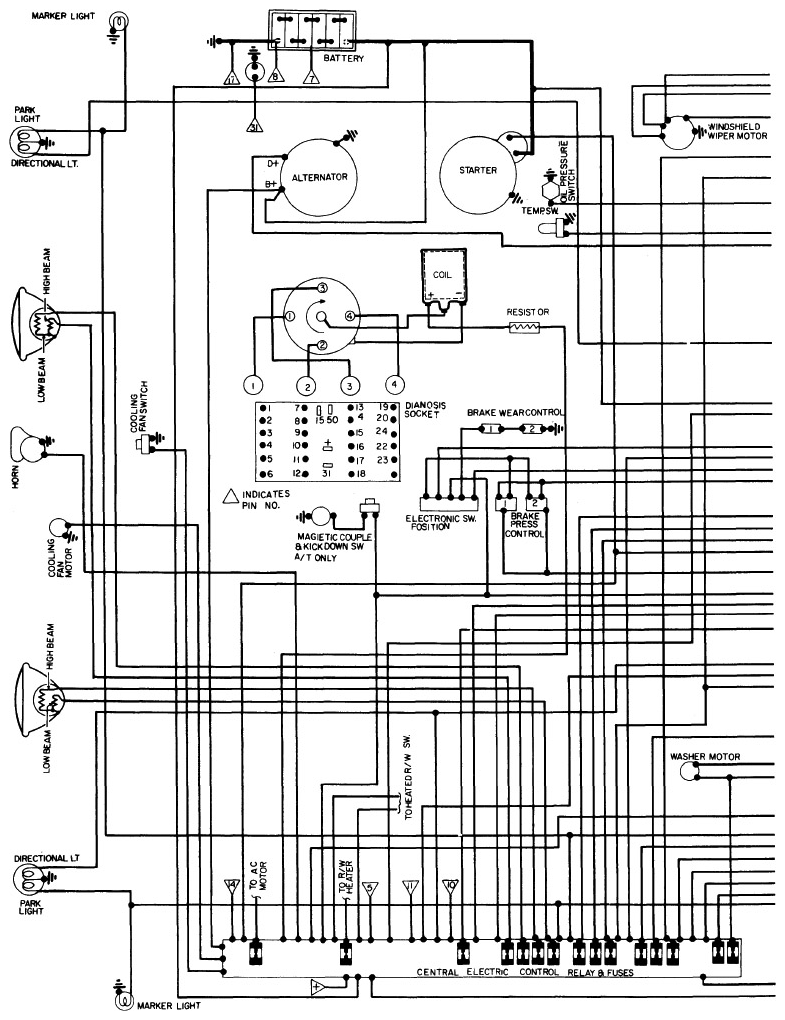

Fig 2: Wiring Diagram - Fox (2 Of 2)
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
